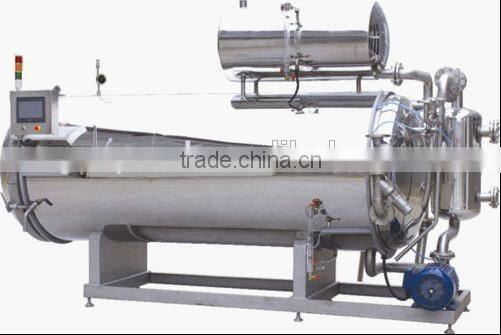

High Temperature Sterilizing Machine

High Temperature Sterilizing Machine photo-1
US$ 5,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
GENYOND
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name GENYOND
Model Number GY-S-02
Type Other
Certification ISO9001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

highly used for sterilization of drinks, soft package food, canned food, and medical injections, etc.

1.high temperature food sterilizing
puter controlling sterilization
3.circulating spray

This machine used on sterilizing food after packaging, such as food bags, tins, cans, bottles, vacuum packing food bags, etc, kinds of food package sterilizing after packaging, time saving, power saving, labor saving, computer controlling, automatic controlling temperature, time and pressure, automatic alerting after finish, safe operating and working, cycling spraying type sterilizing, horizonal food sterilizer machinery.



Suitable subjects:

 Glass bottles, jars, or containers

 Plastic containers: PP bottles, HDPE bottles

 Metal containers: tin , aluminum

 Soft bag package: aluminum foil bags,PP bags, vacuum bags, retort pouch

high temperature sterilizing machine

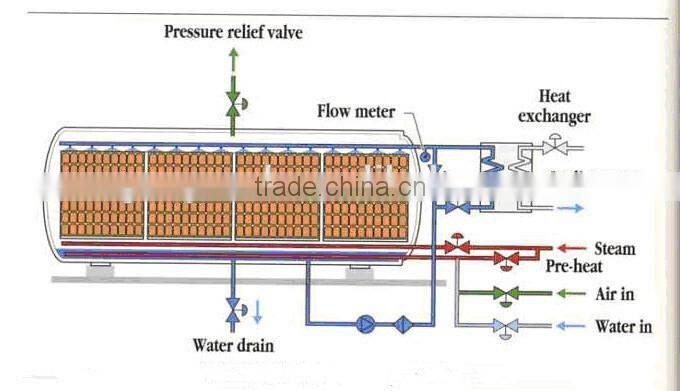

working principle:

Spraying on the product directly with superheated water as medium for sterilization, PC automatic operation.Using plate heat exchanger for indirect heating,cooling therefore rising the temperature,

 sterilizing then cooling to prevent unclean steam and cold water from recontaminating the product.Meanwhile,protect the product to be sterilized by balance pressure from the controllable pressure air inside the processing tank.

high temperature sterilizing machine



Technique parameters:



 GY-S-02

items

900×1800 semi auto

volume(m3)

2.28

pressure(Mpa)

0.35

high pressure(Mpa)

0.3

trial pressure(Mpa)

0.44

temperature(°C)

147

diameter(mm)

900

length(mm)

1800

thick(mm)

4

material

Sus304

capacity(T)

0.3 ton

equip boiler(T)

0.5-1.0T





Name

Spec(mm)

unit

qty

material

Sterilizer) computer semi auto

900×1800

set

1

SUS304

Barrel

900×1800

set

1

SUS304

trays

900*600*150

pcs

10

SUS304

trolleys



pcs

4

SUS304

trays

913*613

pcs

4

SUS304

insulating layer





  2

SUS304







 high temperature sterilizing machine
