Specifications

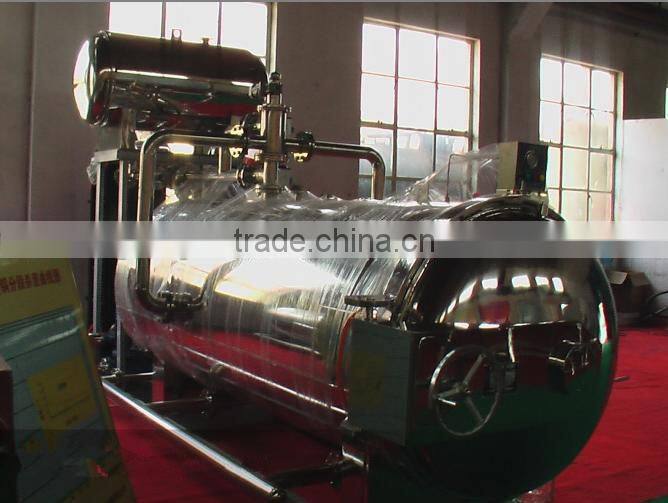

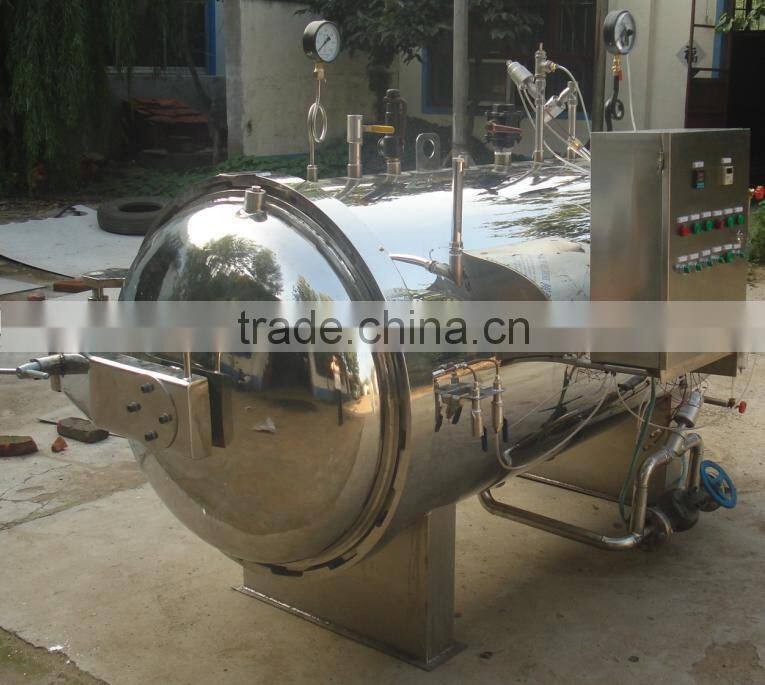

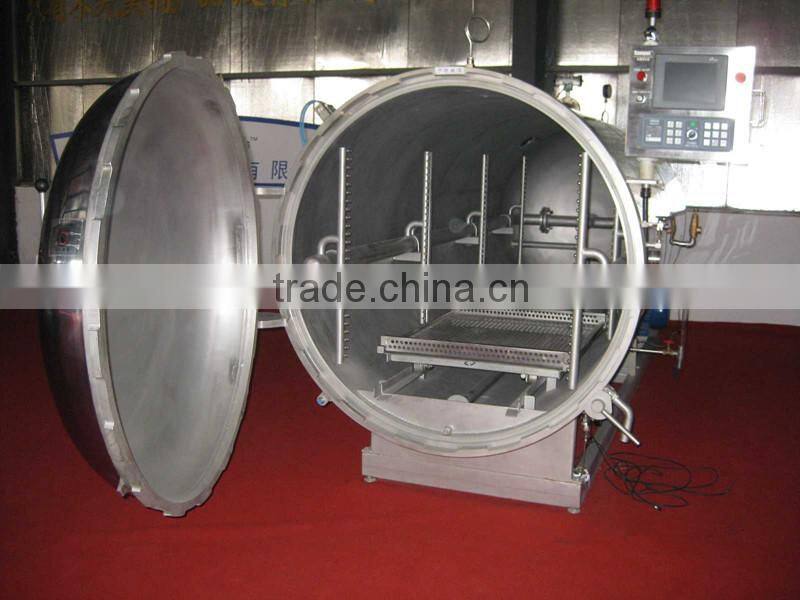

It can be used for high temperature sterilization of drinks, soft package food, canned food, and medical injections, etc.Spray-type superheated water sterilizer

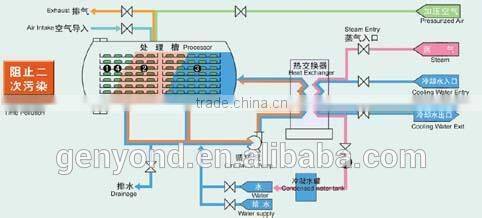

working principle:
Spraying on the product directly with superheated water as medium for sterilization, PC automatic operation.Using plate heat exchanger for indirect heating,cooling therefore rising the temperature,
sterilizing then cooling to prevent unclean steam and cold water from recontaminating the product.Meanwhile,protect the product to be sterilized by balance pressure from the controllable pressure air inside the processing tank.
Suitable subjects:
Glass bottles, jars, or containers
Plastic containers: PP bottles, HDPE bottles
Metal containers: tin , aluminum
Soft bag package: aluminum foil bags,PP bags, vacuum bags, retort pouch
Spray-type superheated water sterilizer | |||||
item | specification | ||||
sterilizer diameter | φ1000mm | φ1200mm | φ1400mm | φ1600mm | φ1800mm |
sterilizer length (mm) | 2000 | 3000 | 4500 | 6000 | 6000 |
cage frame quantity (unit) | 2 | 3 | 4 | 6 | 6 |
max. working pressure (Mpa) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
max sterilization temperature (°C) | 137 | 137 | 137 | 137 | 137 |
steam pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
cooling water pressure (Mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
compressed air pressure (Mpa) | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
loading capacity (kw) | 7.5 | 11.5 | 15 | 22 | 34 |
overall dimension (mm) | 3160*2230*3100 | 4280*2450*3300 | 56160*2960*3520 | 7680*34000*3860 | 7980*38900*4350 |
Features:
- Advanced body model: pressure tank of this sterilizer is designed and built comply with GB150 or equivalent standard, all main structure adopt finite element analysis and optimization design
- Indirect heating and cooling, avoid recontamination
- Small amount of water rapid circulation enable to reach the sterilizing temperature shortly
- Atomized superheated water sprayed from fan nozzles,no dead corner
- Multi-stage heating, to retain the original color and taste of the product
- The pressure adjusted automatic due to constant changed temperature,less product deformation
- Humanized & dedicated control system
- Perfect monitoring device, online monitoring and recording operation condition
- Advanced and stabled Siemens control system, enable our clients to find service supplies worldwide and shorten the down time
- Large device can be equipped with heat water recycle system (as per request), in order to further energy efficiency and water efficiency
- Shake and stir the food inside retort pouch by rotation and swing,to significant shorten heating and cooling time and prevent quality decrease
