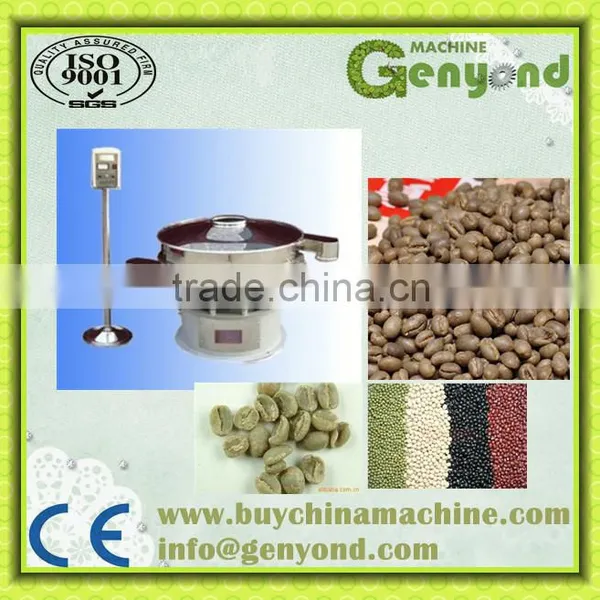

coffee bean vibration classifier sorting machine / bean grading machine

wooden case

Specifications

coffee bean sorting machine
1,layer from 1 to 5.
2,continuous screening.
3,customize for you.

Machine introduce



It has a vertical vibrating motor as vibration source.(single phase or three phase,you can choose according to your needs)  There are two eccentric blocks fixed at the upper and bottom of the motor,which turn the motor’s rotary motion into horizontal vertical inclined three dimensional movement,then deliver the motion to the sifter.Three diamensional movement make material jump up and down,so the screening effect is achieved.By adjusting the phase angle ,can change the trajectory of materials in the sifter. this machine can for sorting kinds of nuts, cocoa beans, seeds, agriculture food and so on.

Model



Model	GY496-B	GY498-B	GY4910-B	GY4912-B	GY4915-B
Diameter(mm)	Φ654	Φ800	Φ950	Φ1160	Φ1500
Efficient Diameter	Φ550	Φ750	Φ900	Φ1110	Φ1480
Net Specification	3 ~ 600 mesh
Layer	1~2	1~2	1~2	1~2	1~2
Power (Kw)	0.5	0.75	0.8	1.5	2.2
