Specifications
1. Automatic2. Stainless steel 304
3. Clean, health, meet food hygiene requirements
4. Simple operation

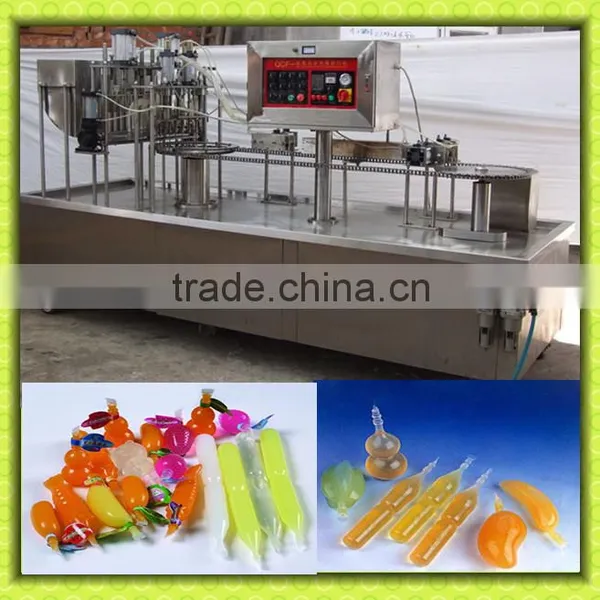

This ice pop filling and sealing machine in contact with liquid and the exterior part are made from stainless steel, featuring beautiful appearance, compactness and durability. The machine is easy to operate and complete with various functions. It is applicable to the filling of ice pop, milk stick, fruit milk, juice drink and can select plastic exterior packaging at random. The process of filling, sealing and blanking can be automatically finished for one time by the machine. The production rate can be self-regulated.
Features:
1. Auto gravity filling principle
2. No bottle no filling, filling process with vacuum empty bottle firstly
3. Auto feeding materials from filling hopper with liquid level controller.
4. Auto clean unit, auto heating unit
5. Auto sealing unit
6. Auto outfeed
Technical parameters:
Model: |
GYB |
Description: |
Ice Lolly Tube Full Auto Filling and Sealing Machine |
Packaging speed: |
5,000-6,000 pcs/hour |
Filling content: |
15-200ML |
Power: |
3-phase 4-line socket(380V 50HZ) |
Electric Machinery Power: |
1.5KW |
Heat up power: |
4KW |
Air pressure: |
0.5Mpa-0.7Mpa |
Max air consumption: |
0.5m3/min |
Timing mode: |
servo motor driving |
Machine dimension(L*W*H): |
4000x800x2000mm |
G.W.: |
1000KG |
Model list:
Model |
Capacity (pcs/h) |
Packing Size(ml) |
Voltage(V) |
Power(kw) |
L*W*H(mm) |
GY-A |
2000 |
15-200ML
|
220/380
|
1.5 |
600*1000*1300 |
GY-B |
5000-6000 |
1.8 |
4000*800*2000 |
||
GY-C |
5000-15000 |
3.8 |
2940*740*1720 |
