Product Details
Condition: | New | Type: | Hot Air Furnace | Place of Origin: | Shanghai, China |
Brand Name: | GY | Model Number: | GY-S | Voltage: | 220v/50hz |
Power(W): | different power | Dimension(L*W*H): | L*W*H mm 700x505x1600 | Weight: | 75kg |
Certification: | ISO9001 | Warranty: | 12 month | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden case or film
Product Description
Product features:
Experimental spray drying machine is our company introduce and absorb advanced international technology, combining with the characteristics of domestic users to use and manufacture.Elegant and beautiful and compact structure and reasonable, mobile, electricity can be used without auxiliary facilities.Use operation is controlled by PLC, touch screen display, operation interface in both Chinese and English.
Scope of application:
Mainly applies to colleges and universities, research institutes and food, biological, beverage, chemical, material, pharmaceutical companies such as laboratory research and development and production of trace particles of powder, such as emulsion, suspending liquid to be widely applicable to all solution, suitable for drying thermal sensitivity material such as biological products, biological pesticide, enzymes, because of overflowing material only when sprayed into mist particle size under high temperature, instantaneous heat, keep active material still maintain its active ingredient after drying.
Areas of application:
Beverages, spices and pigments, milk, and egg products, plant and vegetable extract, pharmaceutical synthesis, thermal plastic material, polymer and resin, aromatic agent, blood products, ceramics and superconductor, biochemical products, dyes, soap and detergent, food adhesive, oxide, bone and tooth powder and so on.
Areas of application:
Beverages, spices and pigments, milk, and egg products, plant and vegetable extract, pharmaceutical synthesis, thermal plastic material, polymer and resin, aromatic agent, blood products, ceramics and superconductor, biochemical products, dyes, soap and detergent, food adhesive, oxide, bone and tooth powder and so on.
Equipment characteristics:
1. 7 "high resolution color touch screen dynamic display the working process, combination of PLC automatic control and manual control.
2. The interface can switch all the parameters by the touch each other in English and Chinese digital keyboard Settings.
3. The real-time regulation of PID temperature control technology, accurate temperature control, heating temperature control accuracy + / - 1 ℃.
4. The device drier, cyclone separator and collecting device adopts transparent quality high temperature resistant high borosilicate glass manufacturing.
5. Spray drying experimental process intuitive visual, convenient observation and grasp the experiment process.
6. Spray drier JYP entertainment - 1500 type 2 fluid spray gun structure is adopted, and the structure of the atomization effect is good, very suitable for emulsion, more viscous material.
7. Spray gun by high-quality SUS316 stainless steel materials, nozzle has a variety of models to choose.
8. Spray gun with automatic dredging stainless steel needle and the working frequency is adjustable, the nozzle is blocked, the needle will automatically remove blockage to ensure continuous normal experiment.
9. The equipment is equipped with protection devices inside, when the heater opens, the wind the opportunity to start at the same time.
10. The equipment can be equipped with air inlet filter, in order to ensure the purity of test samples.
11. The equipment after drying products, uniform granularity, more than 95% of the dry powder is tiny particles within the same diameter.
Parameters:
Automatic control and manual control dual control mode, the whole experiment process color touch screen dynamic display.
Inlet air temperature control: 30 ℃ ~ 280 ℃ (300 ℃)
Temperature control: the wind out of 30 ℃ ~ 140 ℃
The evaporation of water, 1500 ml/H ~ 2000 ml/H
The largest feed: peristaltic pump can be adjusted up to 2000 ml/h
The feed rate of the smallest: 50 ml/H
Real-time regulation of PID temperature control technology, heating temperature control precision: + / - 1 ℃
Drying time: 1.0 ~ 1.5 S
Spray/hot air flow: direction, down
A 5.7 -inch color LCD touch screen parameters showed: inlet/outlet temperature/peristaltic pump speed/air/frequency of needle.
Nozzle diameter: 0.5 mm / 0.7 mm / 0.75 mm / 1.0 mm / 1.5 mm / 2.0 mm optional, and can customize according to the requirement of production.
Power supply: 220/250 v - 50/60 hz - 13 a MPS
The host size: 700 x 505 x 1600 (mm) L x W x H
The main drying chamber size: 215 mmod X 500 mm
Weight: 75 kg

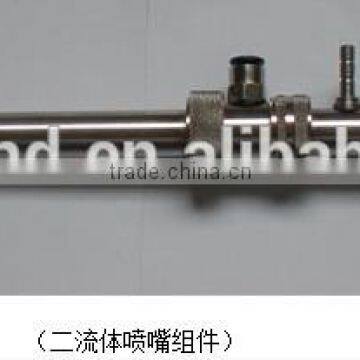

The two-fluid nozzle component

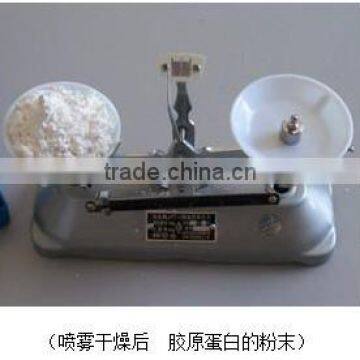

Collagen protein powder
