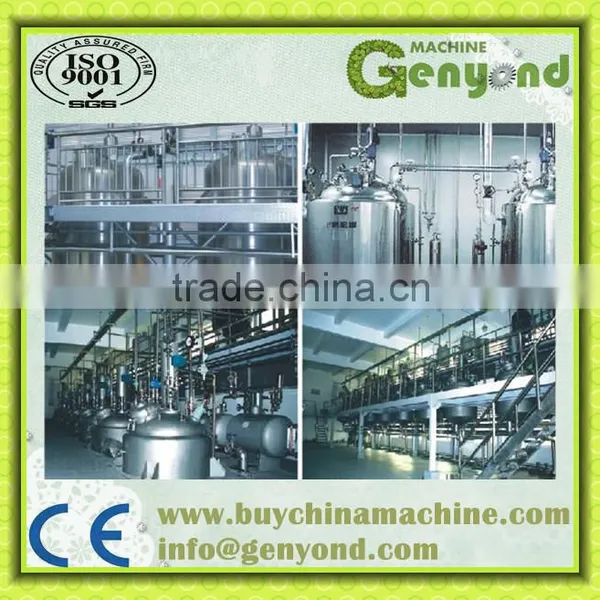

apple extraction and concentrate machine

wooden case

Specifications

1,easy opration
2,stainless steel
3.Material:SS316L / SS304
4.Used vacuum degree (Mpa):0.05~0.08
5.Extract & concentrate t

productions introduce



This equipment is suitable for normal pressure and ultrasonic medicine, health care products, bio pharmaceuticals, cosmetics, food and other industries extraction, ultrasonic extraction and organic solvent recovery and other processes. This equipment adopts the large power energy type ultrasonic generator, very suitable for biochemical extraction process. This device is very suitable for colleges and universities, research institutes and enterprises and institutions of laboratory research and development departments and pharmaceutical plant many varieties, small batch production and use.

1,The device using high efficiency: This equipment is our company developed a new ultra small dynamic ultrasonic extraction unit, the foundation of equipment in the original dynamic heat reflux extraction unit on the optimization of product structure will be shaped type ultrasonic generator integrated in this device, the dynamic extraction, ultrasonic extraction, filtration, the production process is completed in one step, greatly saving the raw material and the working time, the working efficiency than the general multifunctional extraction equipment increased by 50% ~ 80%.

2,High conversion rate: this device using the physical effect of ultrasonic cavitation, unique can promote plant cell tissue broken or deformed, vibration, acceleration shock, the solute particle of sound pressure equivalent shear stress strengthening, so that the material forming the extreme high temperature high pressure local point, to promote the effective components of traditional Chinese medicine precipitation, extraction rate significantly higher than the traditional process of 45%.

3,ultrasonic extraction is the normal temperature extraction, effectively reduce the loss of heat sensitive components. At the same time, GY-JYT-LC-N series of ultrasonic extraction and concentration unit is made of titanium alloy shaped type ultrasonic generator, pneumatic stirring (or mechanical stirring), the massive Chinese herbal medicines can be fully exposed to ultrasonic probe, accelerate the homogeneous precipitation of raw material medicine in effective components.

4,The series GY-JYT-LC-N dynamic ultrasonic extraction unit in the use of ultrasonic wave extraction equipment with matching vacuum enrichment equipment or centrifugal filtration equipment can operate independently, and can also be linked operation.

5,GY-JYT-LC-N series ultrasonic dynamic extraction unit extracting part, considering the convenient medicine residue and clean, with large aperture Manhole or hand hole, and is equipped with cleaning nozzle.

6, High conversion rate: as the ultrasonic extraction process at low temperature, the retention of active ingredients in the greatest degree of heat sensitive materials. This can better guarantee the material after the extraction of medicinal effect.

7,The device has the advantages of compact structure, small floor area, the actual area of about 2~6M2, small can be equipped with mobile casters, convenient operation.

8,adaptability:dynamic ultrasonic extraction and concentration unit, traditional Chinese medicine extract from polar components, molecular weight and size restrictions, applicable to the vast majority of Chinese herbal medicine and various components of the extract;



Model



Volume of extracting tank                    (m ³)	1	2	3	4	5	6	7	8
Evaporating capacity of concentrator (kg/h)	50	100	200	300	500	1000	2000	3000



we can design it as customer's requirement.
