tile polishing machine best quality 0086 15638185396
- 100 Set / Sets per Month
- qingdao
- T/T Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | rephale |
Product Description
Specifications
tile polishing machinereasonable structure
stable performance
high efficiency

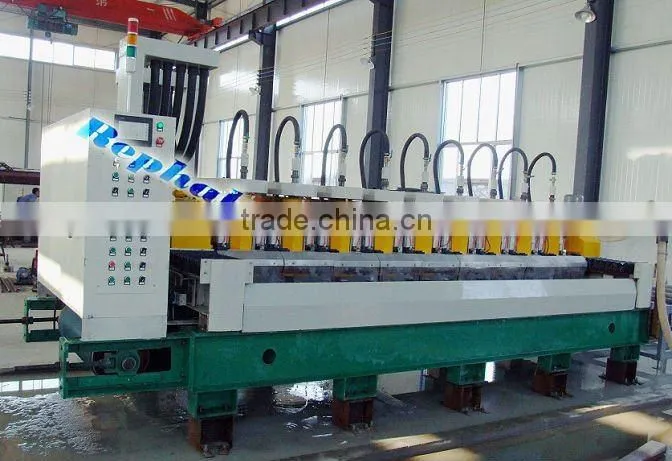

Continuous terrazzo polishing machine
mainly used for grinding and polishing terrazzo, reasonable structure, stable performance, high efficiency. It adopts imported PLC control system and text display to achieve the intelligent controlling.
Advantages
1. Can be equipped the automatic feeding conveyor to feed the terrazzo tile automaticly.
2. All polishing pad is with diamond grinding,which ensure the good outlook and smooth surface of the finished products.
Resin binded diamond grinding pad Diamond Polishing pad
1. The machine an external cylinder. long life span, low failure rate, low maintenance cost, unbreakable plates .
2. Conveyor belt with high quality and name brand, uniform thickness.Flexible non-slip point on the conveyor belt can ensure consistent thickness of terrazzo tile.
3. It achieves variable speed control through the automatic control system to adjust the speed of conveyor belt and beam.
4. Low energy consumption( 7.5kw for single head), low cost. High polishing rate , easy to operate and maintain.
5. The machine can use the magnesia T material to reduce the cost.
Technician parameters:
width of processing: less than900mm
thickness of processing: less than 30mm
quantity of grinding heads: 9-12pcs
capacity: 150-300m*m
power of grinding heads: 9*7.5kw
power of belt running: 1.5kw
power of beam running: 3kw
speed of belt running: 600-2200mm/min
air pressure: 060-0.8MPa
pressure of cooling water: more than 0.15MPa
water consumption of single head: 25L/min
overall dimension: 6000*2200*2100mm
more pictures:
