Specifications
Hydraulic Tile And Paving Machine1.high quality
2.reasonable price

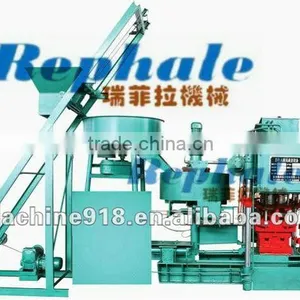

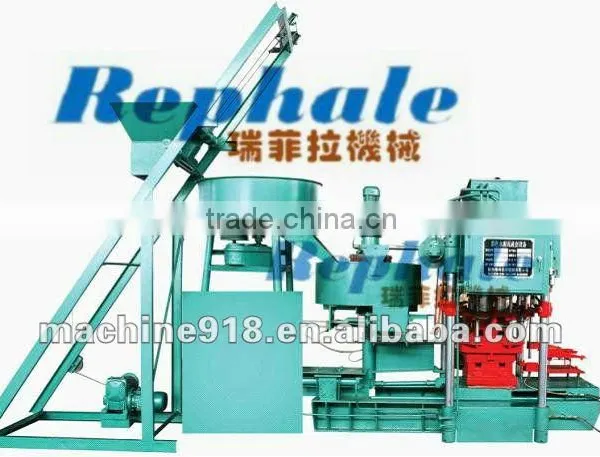

Hydraulic tile and paving machine
Breif Introduction
CWJ high speed filter pressing type concrete tile forming machine has adopted several advanced technologies in producing. This section type has superior mechanical capability and more economical performance.
Characteristic
1. Molding faster in speed and larger in output. It adopts PLC computer touch to control automatically, Man together with machine, the operation is more convenient and reliable. Entire hydraulic pressure air operating, the speed reaches 8 pcs/minute, it is high efficient in production and lower in costs.
2. It is molding and pressing by using concrete and sand, filtering in between. So it would be formed perfect structure, various types, precise sizes, high intensity and density. It can meet the demands of many kinds of building. it is exquisite in the concrete products.
3. One machine can be used in several ways by changing the mould. After that it can produce various types’ main tile and necessary tile we showed in the website. Meanwhile it also can produce the upscale colored terrazzo brick and polish spurts the pill brick and laundering brick, etc.
Parameters
Model No |
CWJ-128 |
CWJ-600 |
Molding Pressure |
128T |
320T |
Cycle of forming |
6-8pcs/minute |
4-5pcs/minute |
Main Power |
5.5KW |
9KW |
Feeding power |
1.5KW |
1.5kw |
Total power |
15kw |
20kw |
Terrazzo Floor Tile size |
300*400 400*500 500*500 |
800*800 600*600 500*500mm |
Weight |
6T |
9.6T |
Dimension |
3100*1600*2600(mm) |
4100*1650*2870(mm) |

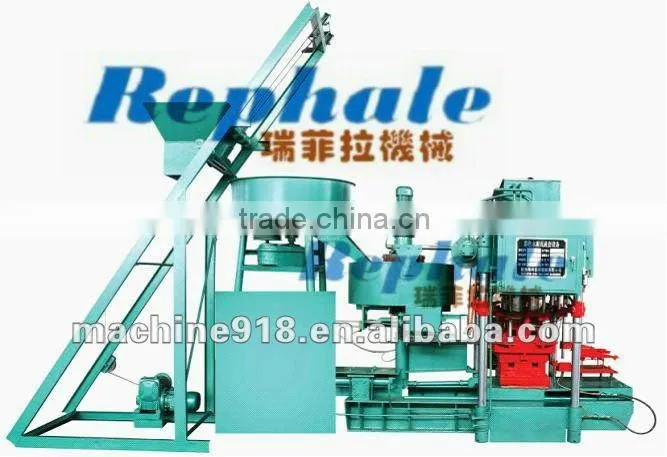

More pictures
Moulds pictures
