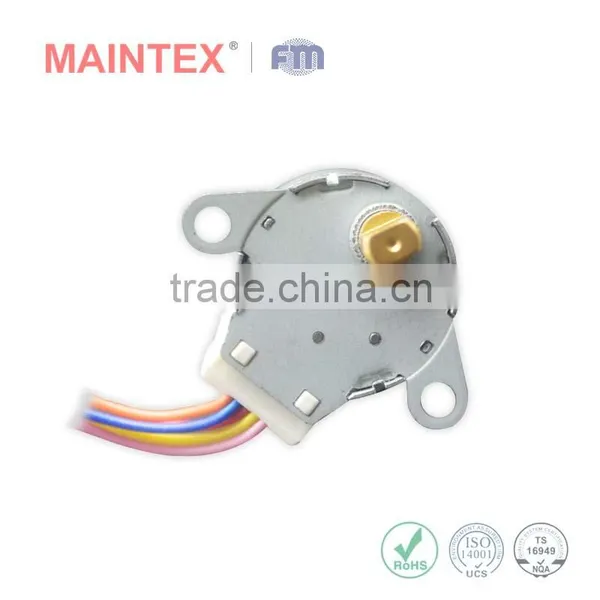

28BYJ48 4 phase sgs stepping motor
Main Performance of 28BYJ48 4 phase sgs stepping motor
Diameter: 28 mm
Step Angle: 5.625°
Voltage: 12V, customized.
Phase: 4
Excitation: 1-2
Parameter of 28BYJ48 4 phase sgs stepping motor
Driving Voltage |
12±10% V |
Phase |
4 Phase |
Lead Wire |
5 |
Excitation |
1-2 |
Reduction |
1/64 |
Step Angle |
5.625° |
Resistance |
100±10% Ω |
Pull In Frequency |
800 Hz |
Pull Out Frequency |
1200 Hz |
Pull In Torque |
20 mN.m |
Detent Torque |
20 mN.m |
Insulation Resistance |
50 MΩ |
Dielectric Strength |
600 VAC/1mA/1s |
Friction Torque |
1.0-1.5 Kgf.cm |
Insulation Grade |
B |
Temperature Rise |
70 K |
Weight |
45 g |
Noise |
40 dBmax |
All parameter can be customized according to your actural demand, for detailed information please contact me or leave a message.

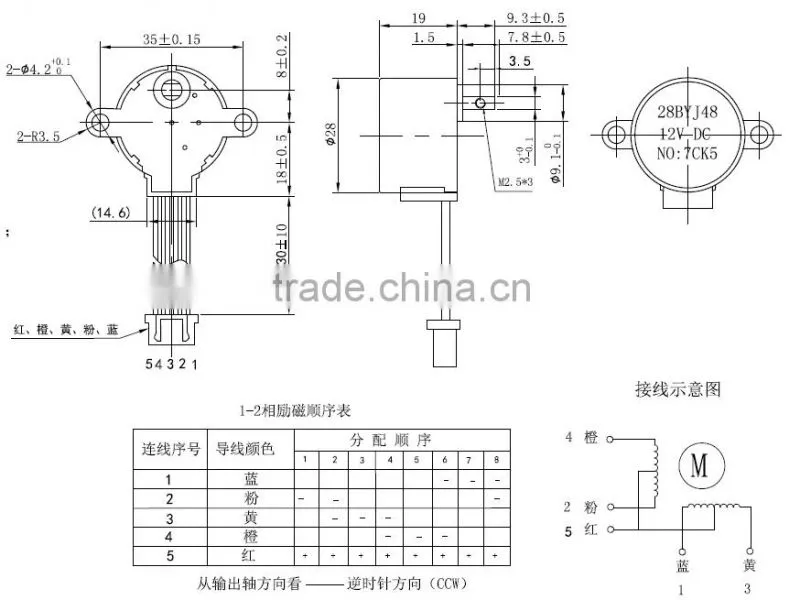

Drawing of 28BYJ48 4 phase sgs stepping motor
Application of 28BYJ48 4 phase sgs stepping motor
