Home > Electrical & Electronics > Electric Motor > Stepper Motor > SGS Certification 20BYJ46 Stepper Motor
SGS Certification 20BYJ46 Stepper Motor
US$ 0.95 - 1.4
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Maintex
Model Number:
20BYJ46
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SGS Certification Stepper Motor 35BYJ46US$ 1.2 - 1.5MOQ: 1 Piece -
IP Camera Micro Motor 20BYJ46 Mini Motor Permanent Magnet dc MotorUS$ 1 - 2MOQ: 1 Piece
-
DC 12v Brushless Permanent Magne Fan Motor 35byj46 Stepping MotorUS$ 0.9 - 1.5MOQ: 1000 Pieces
-
CCTV IP Camera Permanent Magnet 24BYJ48 Micro Stepping MotorUS$ 0.5 - 1.5MOQ: 5000 Pieces
-
24V Micro DC Geared Stepping Motor 35byj46US$ 1.2 - 1.5MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Maintex
Model Number
20BYJ46
Phase
4
Type
Permanent Magnet
Certification
ISO, ROHS
Step Angle(degrees)
7.5
Current / Phase
0.20-0.60A
SGS certification 20BYJ46 stepper motor
Main Performance of SGS certification 20BYJ46 stepper motor
Diameter: 20 mm
Step Angle: 7.5°
Voltage: 5V, customized.
Phase: 4
Excitation: 1-2
Parameter of SGS certification 20BYJ46 stepper motor
| Driving Voltage | 5±10% V |
| Phase | 4 Phase |
| Lead Wire | 5 |
| Excitation | 1-2 |
| Reduction | 1/85 |
| Step Angle | 7.5° |
| Resistance | 275±10% Ω |
| Pull In Frequency | 500 Hz |
| Pull Out Frequency | 800 Hz |
| Pull In Torque | 60 mN.m |
| Detent Torque | 60 mN.m |
| Insulation Resistance | 50 MΩ |
| Dielectric Strength | 500/600 VAC(min) |
| Friction Torque | 39.2-196 mN.m |
| Insulation Grade | B |
| Temperature Rise | 60 K |
| Weight | 25.7 g |
| Noise | 40 dBmax |
All parameter can be customized according to your actural demand, for detailed information please contact me or leave a message.

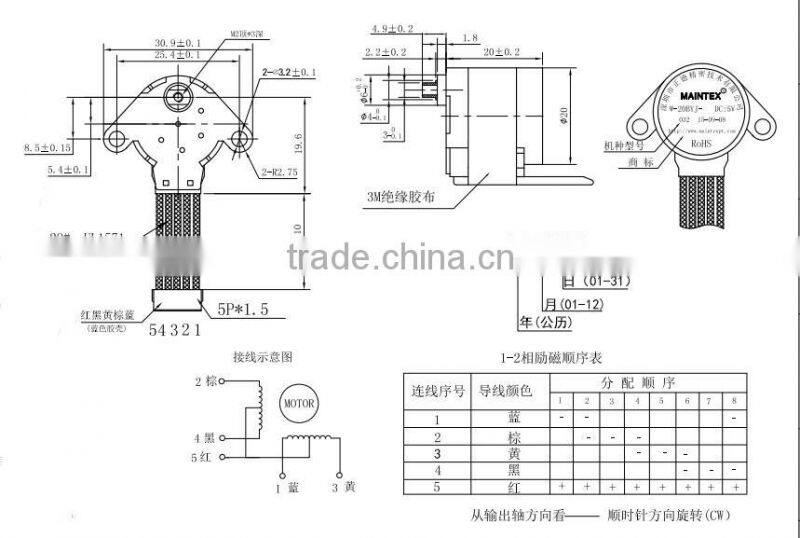

Drawing of SGS certification 20BYJ46 stepper motor
Application of SGS certification 20BYJ46 stepper motor
