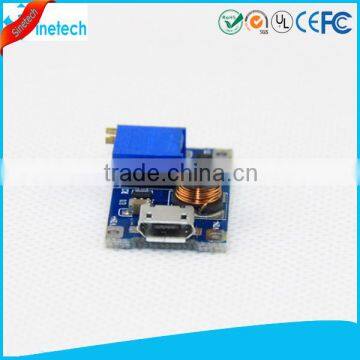

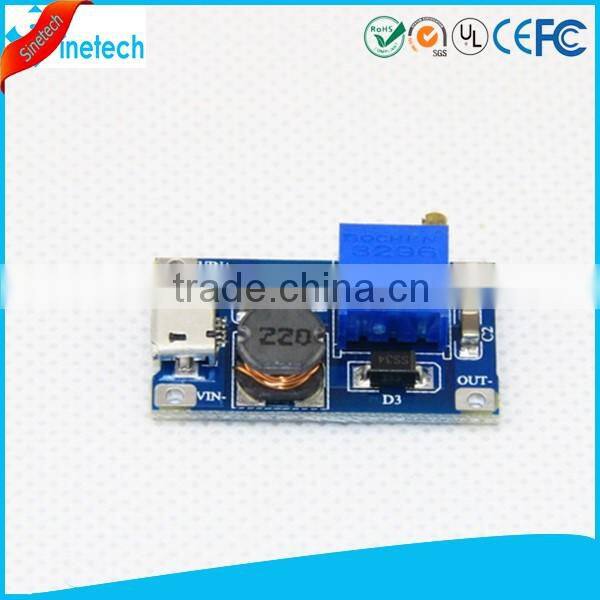

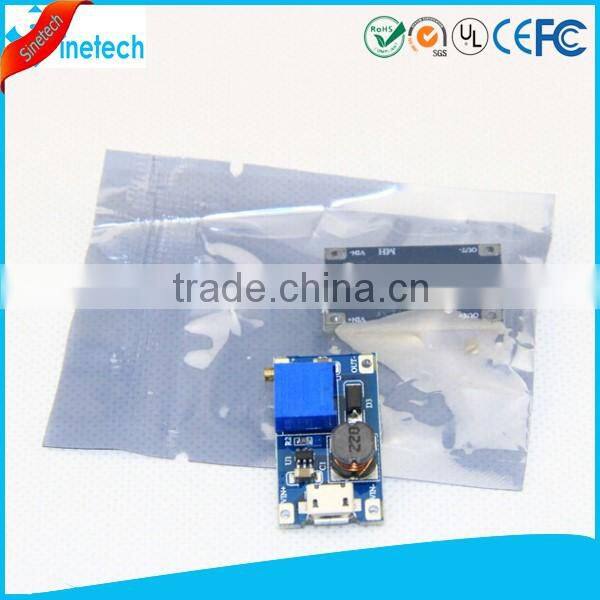

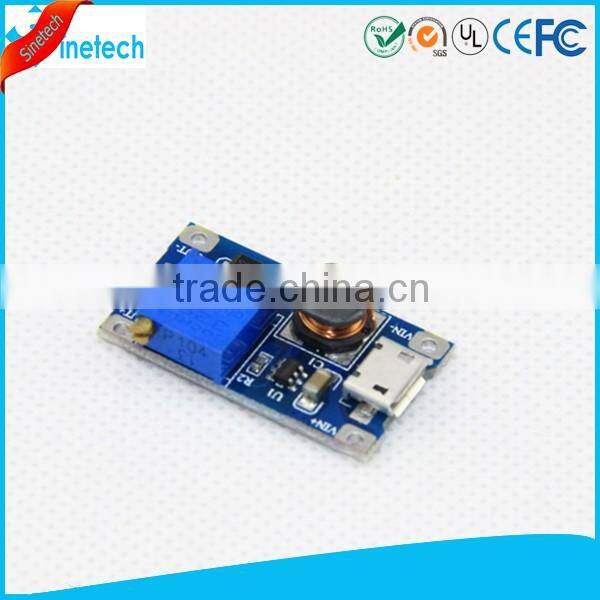

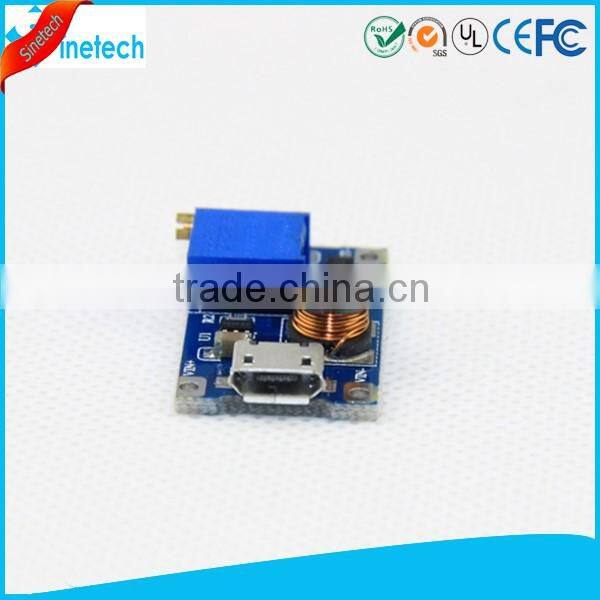

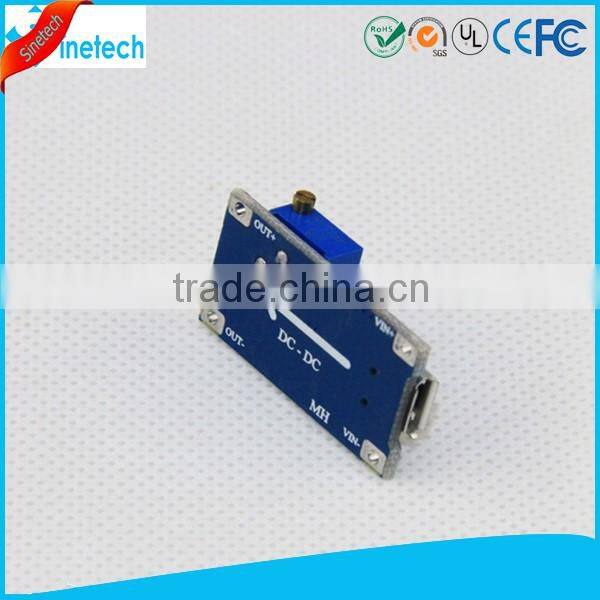

Help CenterWide Output 5~28V dc to dc Step up Charger Converter Module
Related Products
-
Wide Output 5~28V dc Step up Converter ModuleUS$ 1 - 3MOQ: 500 Pieces -
5000mA dc to dc Adajustable Step Down Converter ModuleUS$ 1 - 3MOQ: 500 Pieces
-
Widely Adajustable dc to dc Buck Converter ModuleUS$ 1 - 3MOQ: 500 Pieces
-
5000mA Output dc to dc Charger Converter ModuleUS$ 1 - 3MOQ: 500 Pieces
-
Power Supply 5000mA dc Step Down Converter ModuleUS$ 1 - 3MOQ: 500 Pieces
Features:
1),The whole network the smallest adjustable boost module can be easily installed in a variety of small equipment inside.
2),MicroUSB input can be used with a USB charger or mobile power supply through the phone line
3),You can easily get the 9V, 12V, 15V, 18V, 24V voltage common , easy to use.
4),Wide input and output voltage , high conversion efficiency.
Specifications:
Model |
Converter-D009 |
Output power(W) |
50W |
Input voltage(V) |
From 2VDC to 24VDC(5V,12V,24V...) |
Output voltage(V) |
From 5VDC to 28VDC(5V,9.5V,12V,24V...) |
Conversion efficiency |
93% |
Isolation/Non-isolated |
Non-isolated |
Output type |
Wide |
Output current (Amp) |
2000mA(Max.) |
Input/output interface |
Wiring, customization available |
Load regulation rate |
<1% |
Voltage regulation rate |
<2% |
Ripple |
<50mV |
Protection |
Over-current, over-voltage, Over-temperature, shutdown, short-circuit, reverse polarity protections |
Waterproof |
Yes |
Basic parameter | |
Dimension(LxWxH) |
30mm * 17mm * 14mm , etc |
Weight |
5g |
Rated temperature |
40°c |
Operating temperature |
-25°c~85°c |
Warranty |
1 year |
DC-DC Converter customize range:
Item |
Type |
Voltage convert |
Output current |
1 |
DC-DC Converter - step down |
24vdc to 12vdc |
1/2/3/4/5/8/10/15/20/25A |
2 |
DC-DC Converter - step down |
12vdc/24vdc to 5vdc |
1/2/3/4/5/8/10/15/20/25/30A |
3 |
DC-DC Converter-Boost |
5vdc to 12vdc |
1/2/3/4/5/8/10A |
4 |
DC-DC Converter-Boost |
12vdc to 36vdc |
1/2/4/5A |
5 |
DC-DC Converter-Boost |
12vdc to 48vdc |
1/2/4/5A |
6 |
DC-DC Converter - step down |
36vdc/48vdc to 12vdc |
1/2/3/4/5/10/12/15/20A |
7 |
DC-DC Converter-Boost |
12vdc to 24vdc |
1/2/3/4/5/8/10/12A |
8 |
DC-DC Converter - step down |
60vdc to 12vdc |
10/12/15A |
9 |
DC-DC Converter - step down |
60vdc to 24vdc |
10/12/15A |
10 |
DC-DC Converter - step down |
60vdc to 36vdc |
5/8A |
11 |
DC-DC Converter - step down |
12vdc to 5vdc |
1/2/3A |
12 |
DC-DC Converter - step down |
36vdc/48vdc to 24vdc |
10/12/15/20A |
13 |
DC-DC Converter - step down |
48vdc to 36vdc |
5/8A |
14 |
DC-DC Converter---Automatic Step down and Boost |
12vdc-12vdc |
1/2/3/6A |
15 |
DC-DC Converter---Automatic Step down and Boost |
Product details:
