5000mA Output dc to dc Charger Converter Module

5000mA Output dc to dc Charger Converter Module thumbnail-1
5000mA Output dc to dc Charger Converter Module thumbnail-2
5000mA Output dc to dc Charger Converter Module thumbnail-3
5000mA Output dc to dc Charger Converter Module thumbnail-4
5000mA Output dc to dc Charger Converter Module photo-1

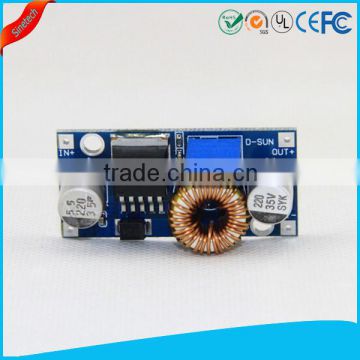

5000mA Output dc to dc Charger Converter Module photo-2

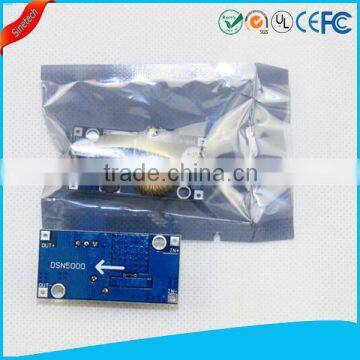

5000mA Output dc to dc Charger Converter Module photo-3
5000mA Output dc to dc Charger Converter Module photo-4
US$ 1 - 3 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SINETECH
Model Number:
Converter-D010
Contact Supplier Request Quote Chat Now
Shenzhen Sinetech Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SINETECH
Model Number Converter-D010
Output Power 51 - 100W
Output Type Multiple
Size 54mm* 23mm* 18mm
Weight 5g
Input Voltage 4-38V
Output Voltage 1.25-36V
Type DC/DC Converters
Output Frequency 180KHz
Output Current 5000mA

Performance and features:

1),Module Properties: non-isolated step-down module (BUCK)
2),Input voltage : 4-38V ( input please try not to exceed 38V)
3),Output voltage : 1.25-36V continuously adjustable
4),Output current : 0-5A, recommended in 4.5A
5),Output power : recommend to use in the 75W.
6),Operating temperature : -25 to +85 degrees
7),Working Frequency : 180KHz
8),Conversion efficiency : up to 96% ( efficiency of input and output voltage , current , pressure related )
9),Load regulation : S (I) ≤0.8%
10),Voltage Regulation : S (u) ≤0.8%
11),Power Indicator : YES
12),Short-circuit protection : YES ( limit current 8A)
13),Over temperature protection : Yes ( automatic shut off the output after overtemperature )
14),Input Reverse Polarity Protection: None ( if necessary please enter the string into the high current diode )
15),Installation mode : two 3mm screws
16),Wiring way : soldering , V-IN is the input , V-OUT output
17),Module dimensions : 54mm*23mm*18mm



Specifications:

Model

Converter-D010

Output power(W)

100W

Input voltage(V)

From 4VDC to 38VDC(5V,12V,24V...)

Output voltage(V)

From 1.25VDC to 36VDC(3.3V,5V,9.5V,12V,24V...)

Conversion efficiency

96%

Isolation/Non-isolated

Non-isolated

Output type

Multi

Output current (Amp)

5000mA(Max.)

Input/output interface

Wiring, customization available

Load regulation rate

<1%

Voltage regulation rate

<2%

Ripple

<50mV

Protection

Over-current, over-voltage, Over-temperature, shutdown, short-circuit, reverse polarity protections

Waterproof

Yes

Basic parameter

Dimension(LxWxH)

54mm * 23mm * 18mm , etc

Weight

5g

Rated temperature

40°c

Operating temperature

-25°c~85°c

Warranty

1 year





DC-DC Converter customize range:

Item

Type

Voltage convert

Output current

1

DC-DC Converter - step down

24vdc to 12vdc

1/2/3/4/5/8/10/15/20/25A

2

DC-DC Converter - step down

12vdc/24vdc to 5vdc

1/2/3/4/5/8/10/15/20/25/30A

3

DC-DC Converter-Boost

5vdc to 12vdc

1/2/3/4/5/8/10A

4

DC-DC Converter-Boost

12vdc to 36vdc

1/2/4/5A

5

DC-DC Converter-Boost

12vdc to 48vdc

1/2/4/5A

6

DC-DC Converter - step down

36vdc/48vdc to 12vdc

1/2/3/4/5/10/12/15/20A

7

DC-DC Converter-Boost

12vdc to 24vdc

1/2/3/4/5/8/10/12A

8

DC-DC Converter - step down

60vdc to 12vdc

10/12/15A

9

DC-DC Converter - step down

60vdc to 24vdc

10/12/15A

10

DC-DC Converter - step down

60vdc to 36vdc

5/8A

11

DC-DC Converter - step down

12vdc to 5vdc

1/2/3A

12

DC-DC Converter - step down

36vdc/48vdc to 24vdc

10/12/15/20A

13

DC-DC Converter - step down

48vdc to 36vdc

5/8A

14

DC-DC Converter---Automatic Step down and Boost

12vdc-12vdc

1/2/3/6A

15

DC-DC Converter---Automatic Step down and Boost







Product details:

5000mA output dc to dc charger converter module5000mA output dc to dc charger converter module5000mA output dc to dc charger converter module5000mA output dc to dc charger converter module5000mA output dc to dc charger converter module





Certification:

5000mA output dc to dc charger converter module

5000mA output dc to dc charger converter module
