Specifications
1.ISO certificated2.CE certificated
3.PLC control,eura or Panasonic
4.Exported to Nigeria &Iran
5.Low energy cons
Roll Forming Machine Making Galvanized Color Metal IBR Wall Sheet
Roll Forming Machine Making Galvanized Color Metal IBR Wall Sheet Parameter
No. |
main parameter of roll forming machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1250mm |
3 |
Rollers |
19rows |
4 |
Dimensions |
5.3*1.55*1.51m |
5 |
Power |
4+4kw |
6 |
Thickness of the plate |
0.3-0.6mm |
7 |
Productivity |
8-10m/min |
8 |
Diameter of the roller |
Φ70mm |
9 |
Weight |
About 3.2T |
10 |
Voltage |
380V 50Hz 3phases |
11 |
Material of the cutting plate |
Cr12 |
12 |
Hydraulic |
40# |
13 |
Processing precision |
Within 1.00mm |
14 |
Control system |
PLC control |

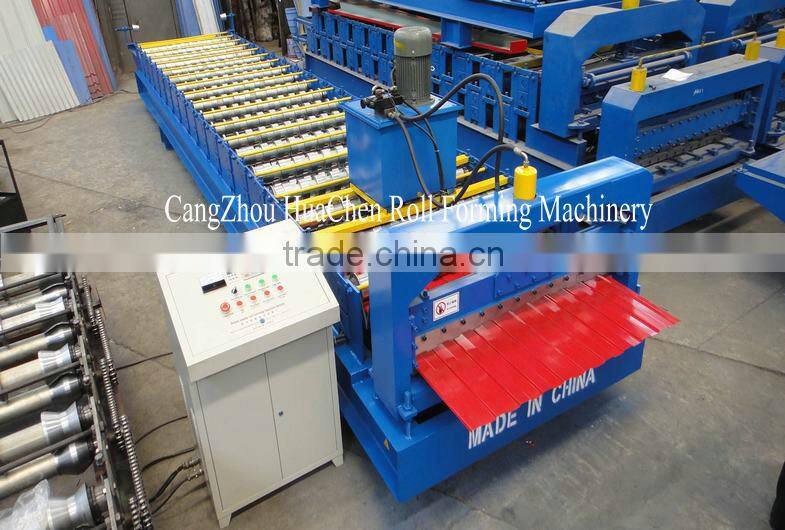

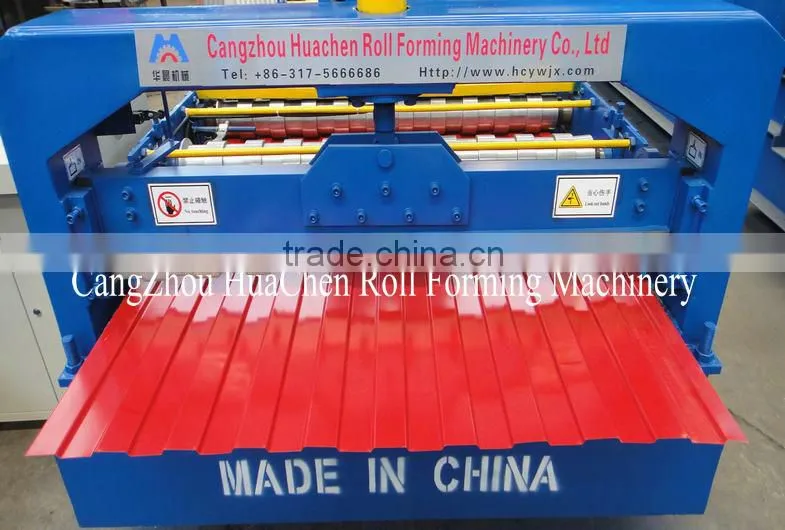

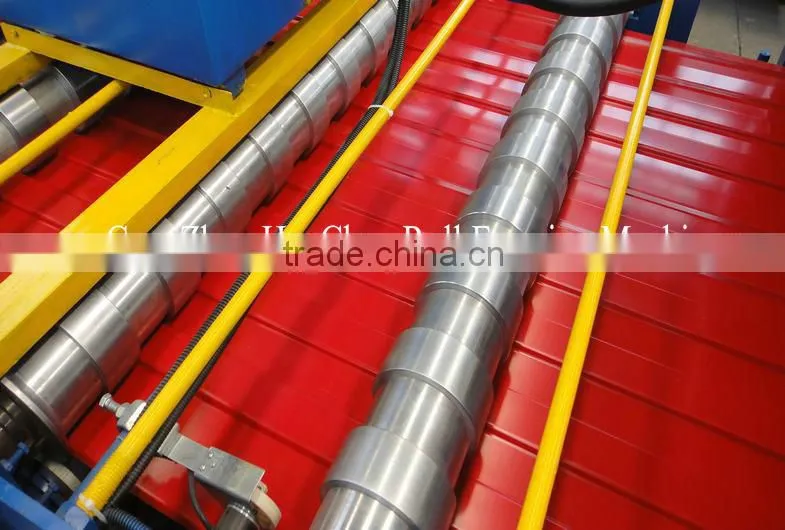

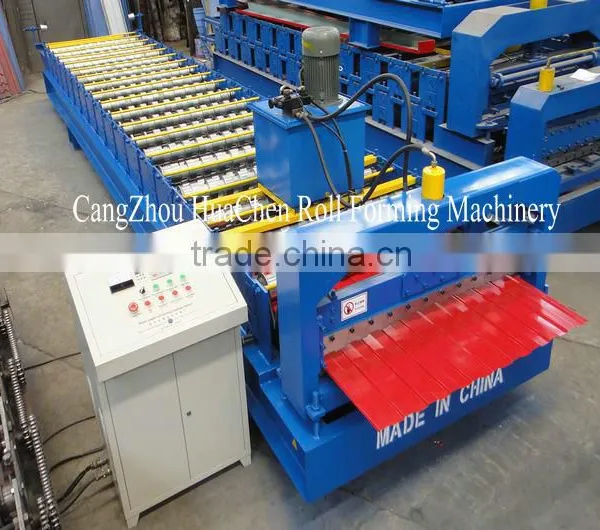

Roll Forming Machine Making Galvanized Color Metal IBR Wall Sheet Main Machine
Rolling material: Forging Steel 45#,Rolling galvanization thickness:0.05 mm
Equipment components: Man-made uncoiler-roll forming machine-computer control system-
hydraulic control system-cutting

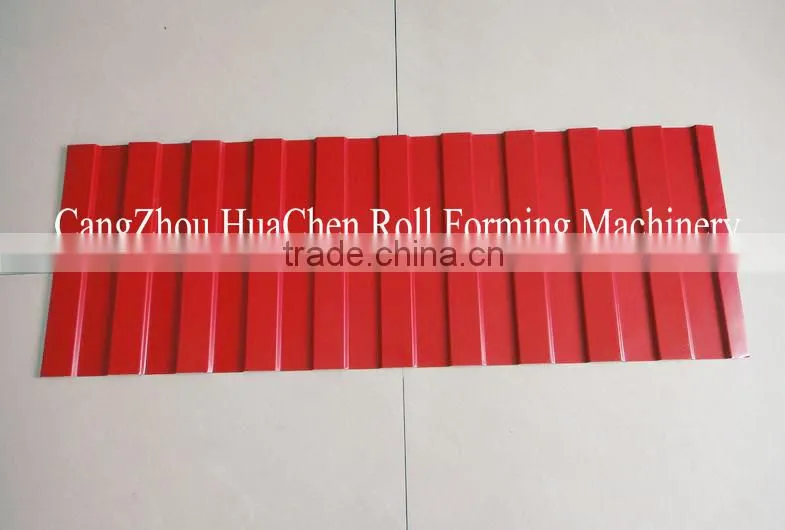

Roll Forming Machine Making Galvanized Color Metal IBR Wall Sheet Production Sample
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall.
It has advantage of pretty appearance, durable using and so on.
Sample
We have a professional design team,
Can also design and manufacture according to customer's requirement.
Loading Scene
We also have professional worker in charge of loading to make sure the machine without broken during transportation
ISO certificated
Thank you for your attention about our products. Your support is our progressive force
Hoping have a chance to cooperate with you. Thanks
