Hydraulic Roller Machine, IBR Wall Panel Cold Formed Steel Forming Machine Manufacturer
|
|
Huachen is FACTORY which manufacture machine and also do export. |
We have exported over 70 countries, and familiar with your require. | |
Suitable to GI, PPGI, aluminum and Zinc coil. | |
Free 1 year gurantee, and life long service. |
Intruduction:

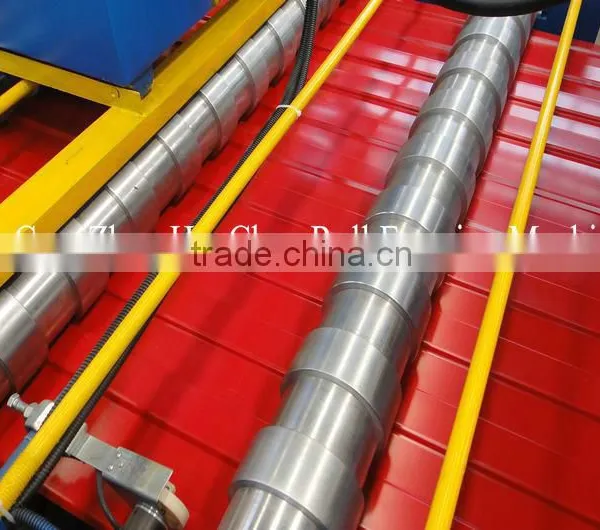

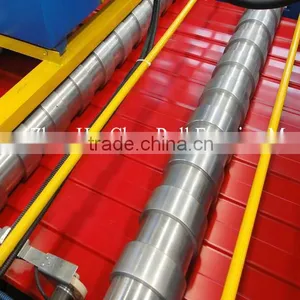

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:

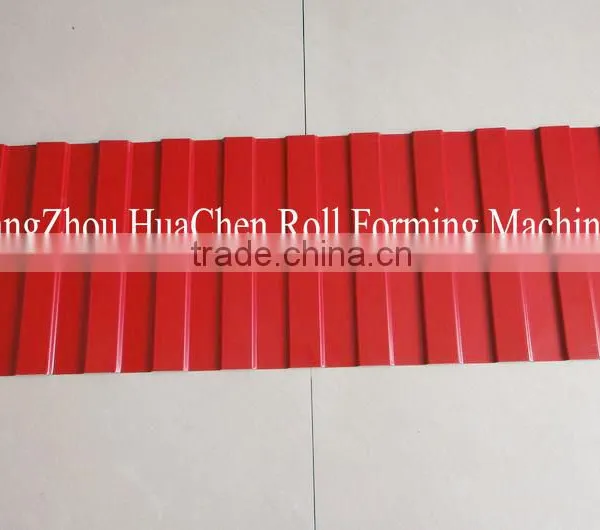

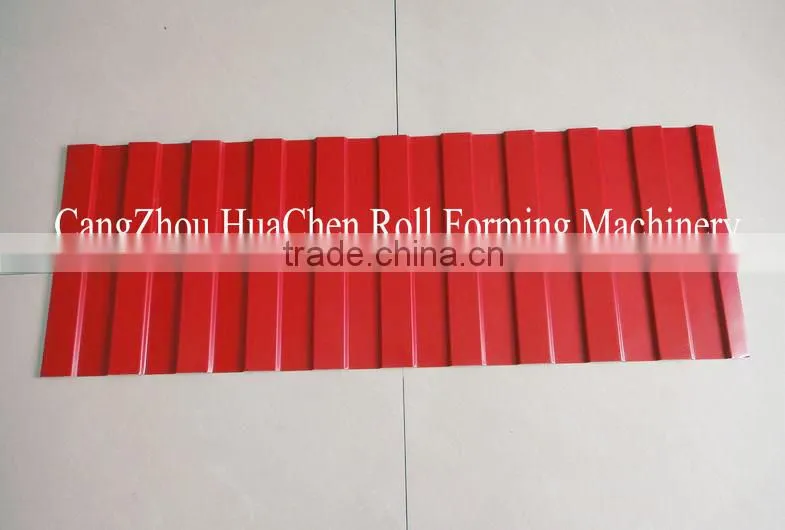

This type of sheet can be widely used in plant, house, storage and simple
steel roof and wall. It has advantage of pretty appearance, durable using and so on.

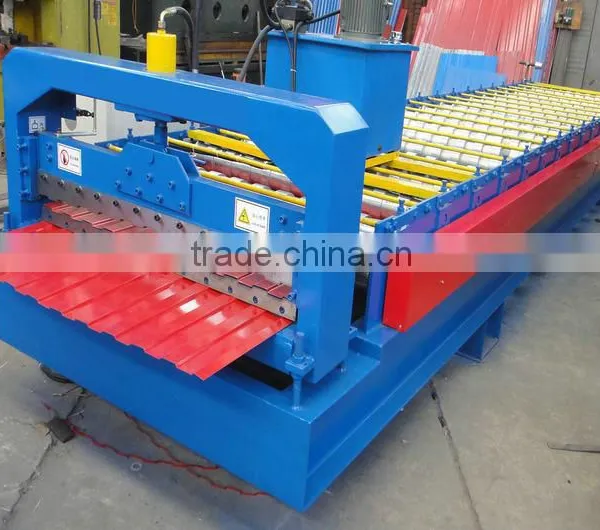

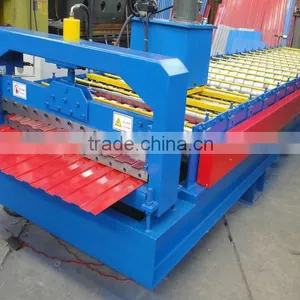

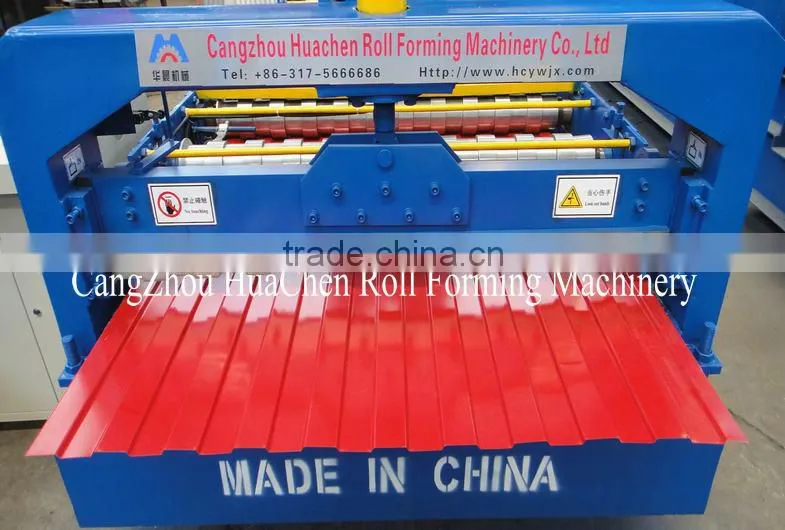

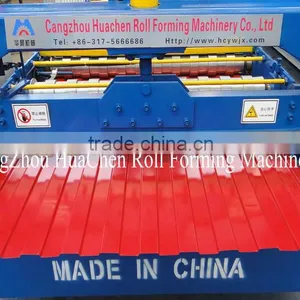

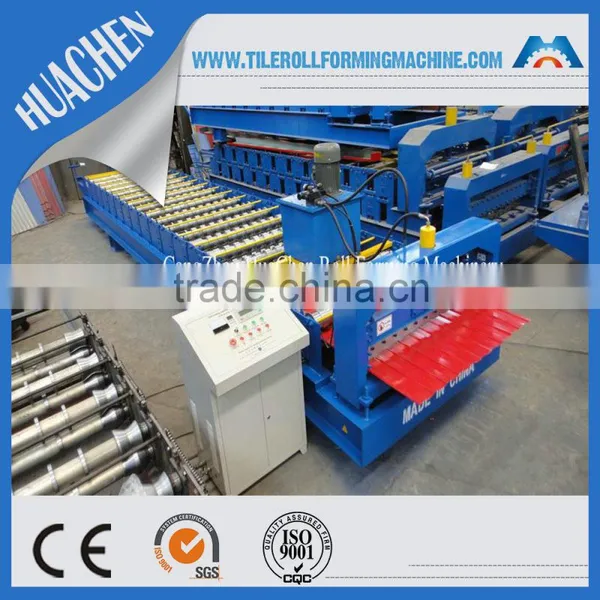

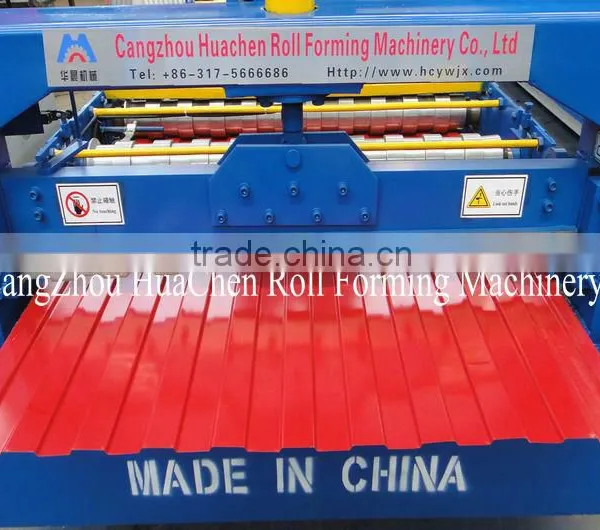

This is The Whole Line of cold formed steel machine.
Manual Uncoiler—Cold Formed Steel Machine—Computer Control System—Hydraulic Control System—Form Cutter
The Main Parameter For cold fromed steel machine
No. |
main parameter of cold fromed steel machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1250mm |
3 |
Rollers |
19rows |
4 |
Dimensions |
5.3*1.55*1.51m |
5 |
Power |
4+4kw |
6 |
Thickness of the plate |
0.3-0.6mm |
7 |
Productivity |
8-10m/min |
8 |
Diameter of the roller |
Φ70mm |
9 |
Weight |
About 3.2T |
10 |
Voltage |
380V 50Hz 3phases |
11 |
Material of the cutting plate |
Cr12 |
12 |
Hydraulic |
40# |
13 |
Processing precision |
Within 1.00mm |
14 |
Control system |
PLC control |

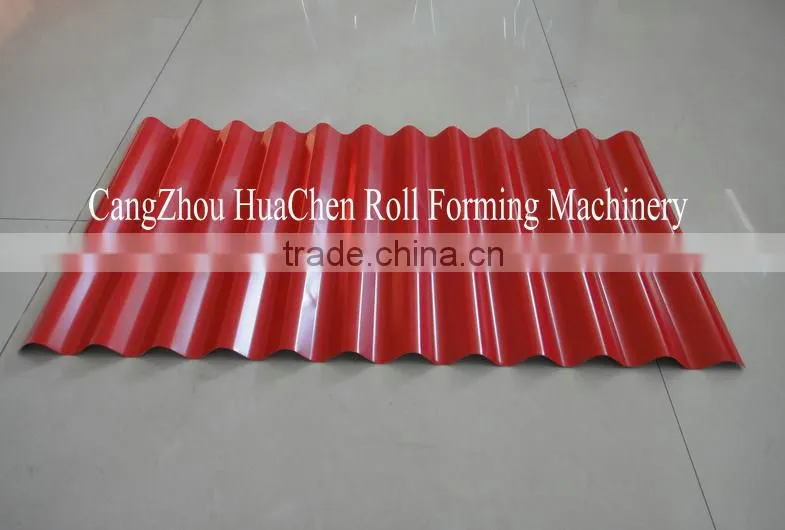

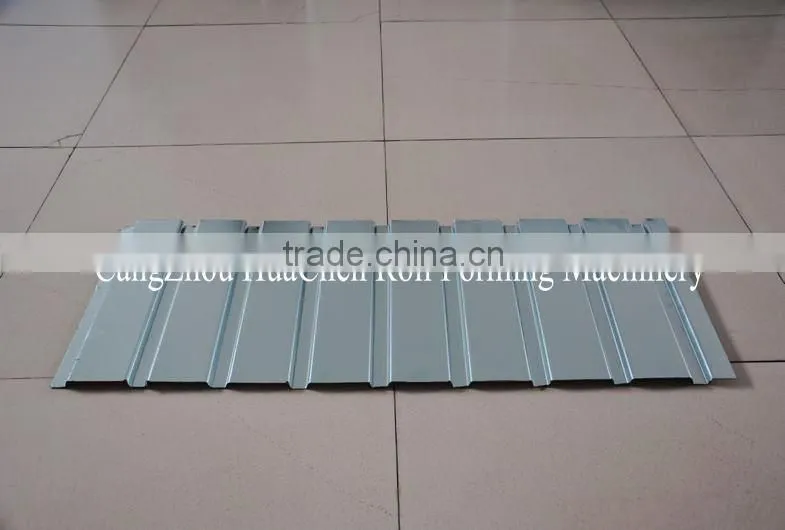

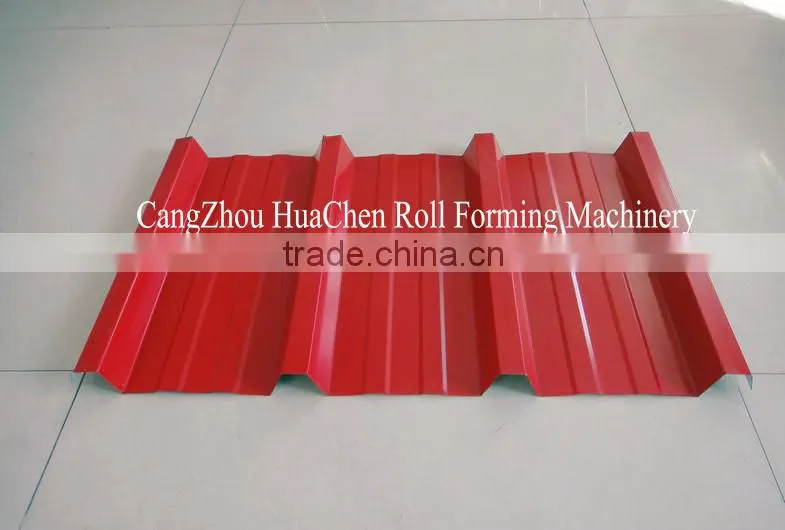

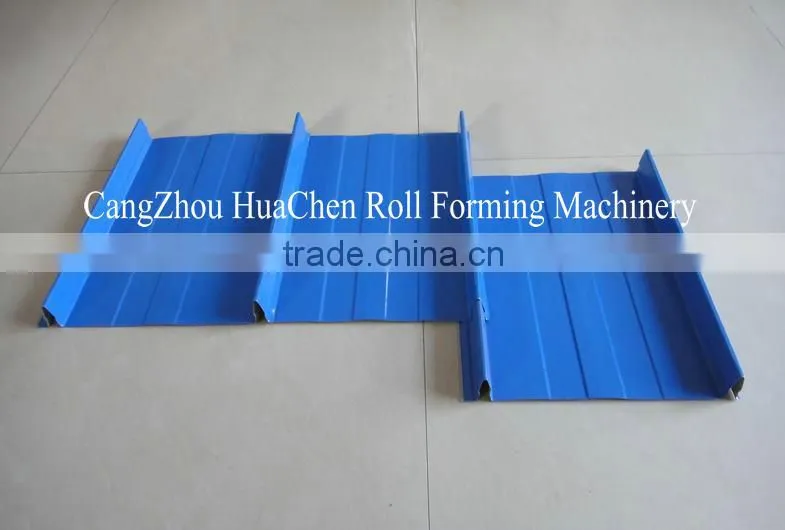

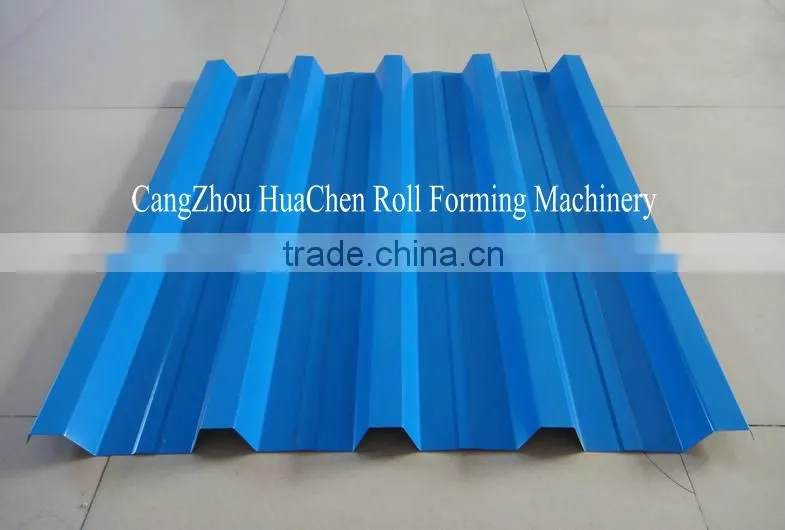

Check If cold fromed steel machine Profile Suitable to You.
Did Not Find What You Want? We Have More Here!
The Following Parts Are FREE!
I Think You May Need These Useful Accessory.
Why Not Choose Some Hydraulic Device To Save Labours?
We have CE certification and ISO certification.
Thank you for your attention about our products. Your support is our progressive force
Hoping have a chance to cooperate with you. Thanks
