Color Coated Sheet Wall Panel Roll Forming Machine
1.Complete Machine
This kind of cold roll forming machine is widely used for making various metal wall panels and roof panels for steel constructions, steel structure projects and containment systems etc.
2.Technical Parameter
No. |
main parameter of roll forming machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1000mm |
3 |
Rollers |
15rows |
4 |
Dimensions |
7.35*1.25*1.51m |
5 |
Power |
4+4kw |
6 |
Thickness of the plate |
0.3-0.6mm |
7 |
Productivity |
8-10m/min |
8 |
Diameter of the roller |
Φ70mm |
9 |
Weight |
About3.5T |
10 |
Voltage |
380V 50Hz 3phases |
11 |
Material of the cutting plate |
Cr12 |
12 |
Hydraulic |
40# |
13 |
Processing precision |
Within 1.00mm |
14 |
Control system |
PLC control |

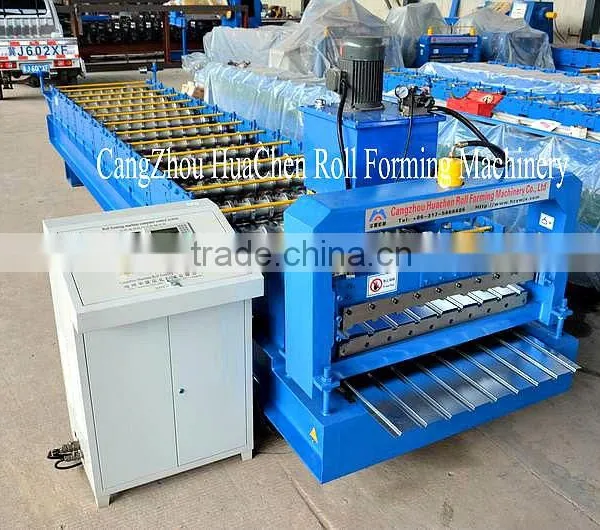

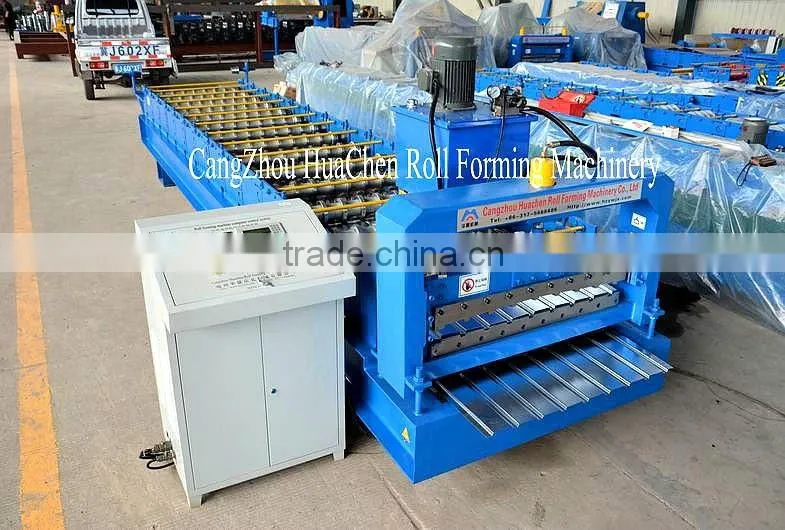

3.Close Shot
This production line consists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, automatic stacker, hydraulic system and electric control system.

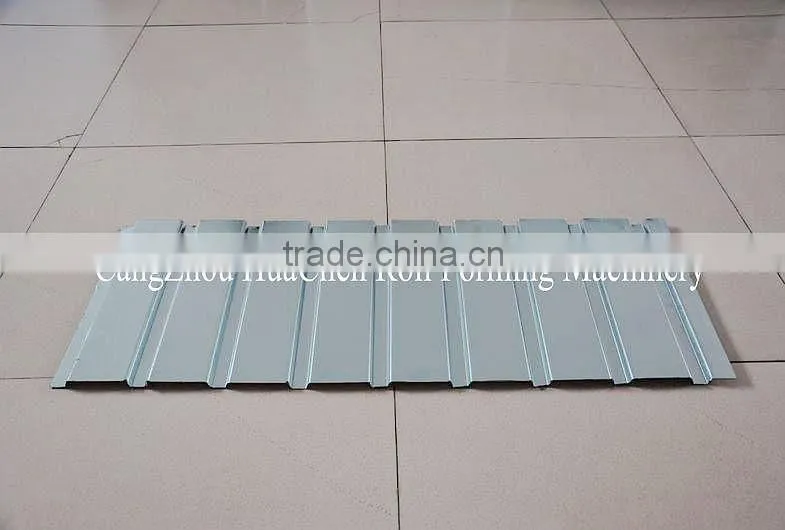

4.Production Sample
This kind of machine manufactures sturdy color steel,it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area.

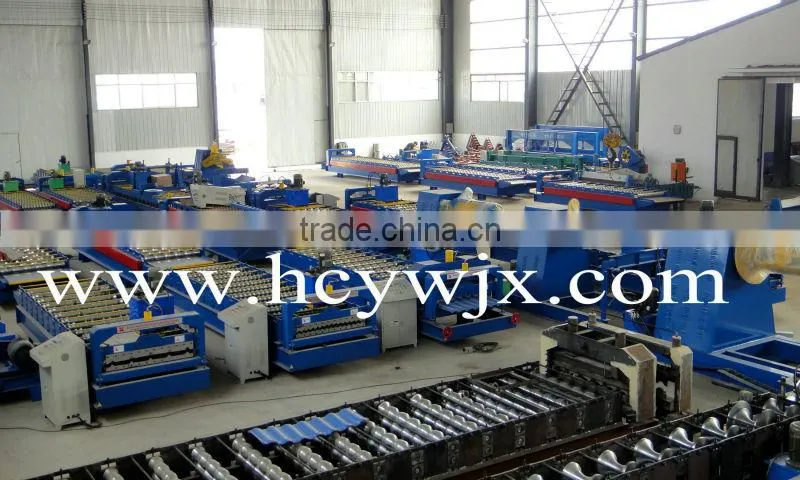

Workshop
ISO certificate

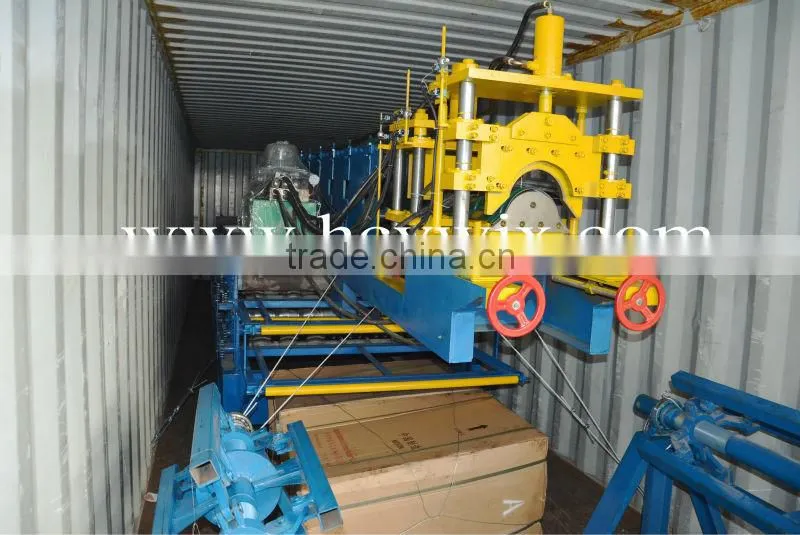

Loading Scene
We also have professional worker in charge of loading to make sure the machine without broken during transportation
Main Machine Is Nude Packing, Computer Control Cabinet Is Packed By Carton Box.(If you have any need, we can pack the machine according to your request)
1.Sample Service
After the product is made , we may send the sample to you before the product is shipped.
2.Customized Service
We have a professional technical team, they can design the product according to your product drawings.
3.After-sale service
We provide overseas service center availble.
High quality and low price products,warm and thoughtful service,will be the biggest surprise we give to you,and we are looking forward to cooperation with you!
