1. Machine Detailed Parameters:
No |
|
|
1 |
Dimensions (L*W*H) |
6200*1500*1510mm |
2 |
Total power |
Motor power-3kw Hydraulic power-3kw |
3 |
Rows of rollers |
12 rows |
4 |
Productivity |
8-10m/min |
5 |
Diameter of shaft |
70mm |
|
6
|
Voltage |
380V 50Hz 3phases |
Manual Uncoiler—Roll Forming Machine—Computer Control System—Hydraulic Control System—Form Cutter
Specification of Components:
No |
Components |
Technical Specification & Remark |
1 |
Manual Uncoiler
|
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T Inner diameter: 450-508mm |
2 |

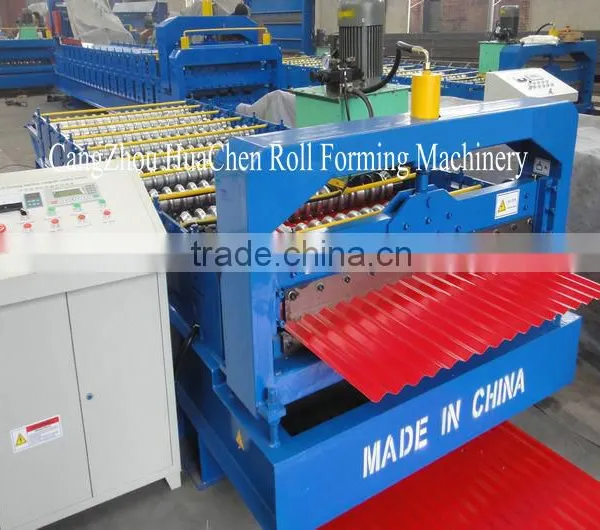

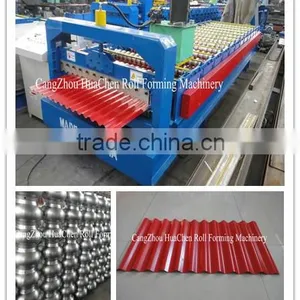

Main Roll Forming Machine
|
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
|
3 |
Hydraulic System
|
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Power:4kw |
4 |
Computer Control Cabinet
|
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |
5 |
Shearing Mechanism
|
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
6 |
Spare Parts |
One box |
We have passed ISO9001 quality certification and European CE security certificate. We value a lot on the importance of the quality, and assure that the processing are 100% qualified. With the correct working procedures and hours of testing time on the machine, we have great confidence for the quality of our product. We will never leave away any shortage to the customer. Nowadays, there are many competitors, and the quality is very different. We are emphasis on both the outside looking and the quality of the product. We are glad to perfect every detail of the equipment, to make the quality of equipment higher
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions’ customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.
When the equipment starts to be used, there are detailed introduction book and videos demonstrate course, and we’ll also provide technical support via phone call, online IM and etc. Moreover, we are able to provide on-site support and spare parts offered if required by customers. We are deeply convinced that never does a true partnership end with the delivery of the goods; satisfactory after-sales service can make great difference.
Sincerely welcome you to visit our factory! We believe that our cooperation will create bright future
Certification: ISO9001-2008 quality system certificate , CE security certificate , BV certification and SGS certification
Packing & Delivery
Main roll forming machine is nude; the computer control box is packed by carton box . One set of machine needs one 40 feet container to hold. Within 45 days after receiving deposit.
