Automatic Granite Polishing Machine granite stone polishing machine marble stone polishing machine
We have manufacturing stone processing machine since the year 1992, so we have enough experience in
providing you high quality and matured machines
We provide:1. stone cutting, polishing, calibrating, profile making machine and so on. 2. artifcial marble stone and quartz stone producing machine line. 3. Stainless steel polishing machine
we can send our engineer to your factory to install and explain how to use these machines, we also have
oversea agent.

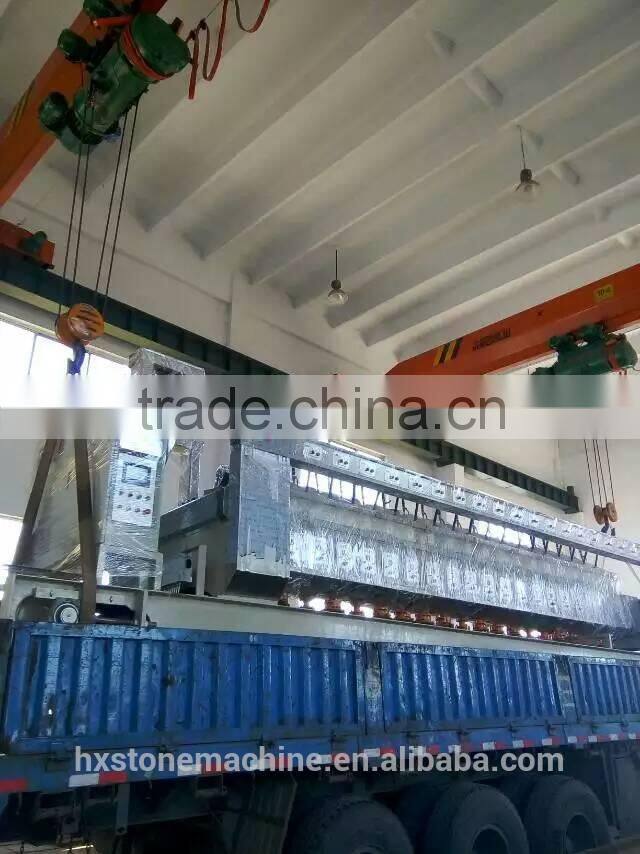

Wood packing or waterproof membrance for Automatic Granite Polishing Machine granite stone polishing machine marble stone polishing machine

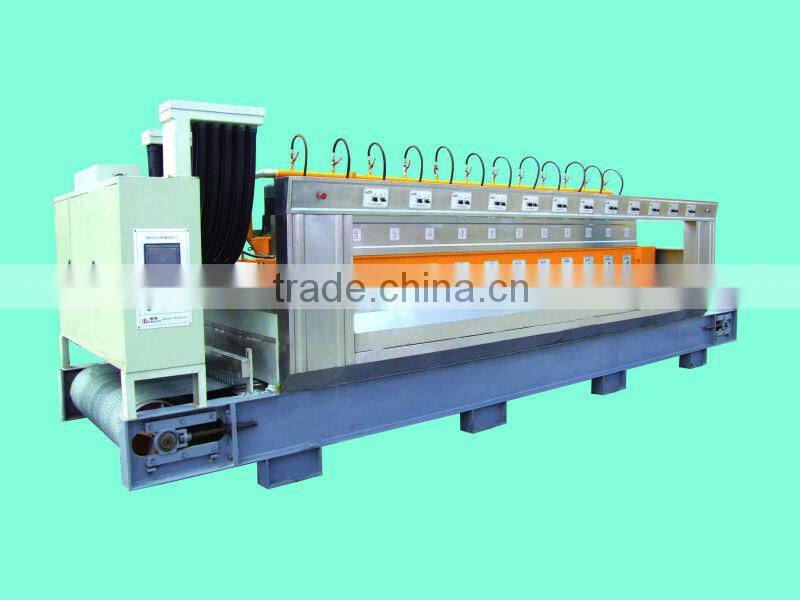

Automatic Granite Polishing Machine granite stone polishing machine marble stone polishing machine
Main function and characteristic,
Hiersun series continue resin abrasive polishing machine with 9-16 head. This machine is mainly for slab polishing. The structure is reasonable, steady performance, high work efficiency. With the import PLC controlling system, text display is controlled intelligence.
1. Out air cylinder, long life using, lower hazard rate, lower maintenance cost, etc advantage.
2. The best quality belt with famous brand, thickness accord, promise the thickness of the slab.
3. Belt move and bridge move is controlled with the automatic contrlling system
4. With lowe power (7.5kw single head), the cost is only 0.6USD per square meter. Capacity is 38 square meter per hour. The brightness for granite can catch up 85 degree.
Technical data
Processing width: Max 900mm, 1300mm
Processing thickness: Max30mm
Grinding Heads: 9-12-16
Capacity: 200-500 square meter per 8 hours
Total power: 72kw
Grinding head power: 9,12,16x7.5kw
Belt move power: 1.5kw
Bridge move power: 3kw
Belt move speed: 600-2200mm/min
Pressure: 0.6-0.8Mpa
Cooling water pressure: Min 0.15Mpa
Consumption water for single grinding: 25L/min
Machine size: 6000*2200*2100mm

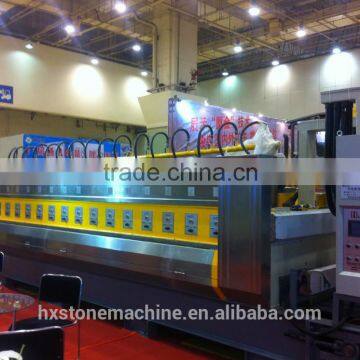

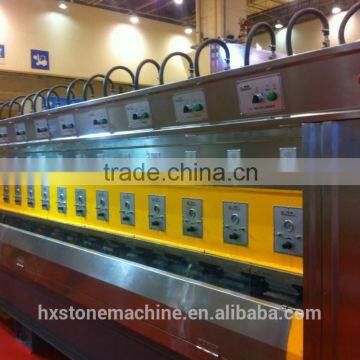

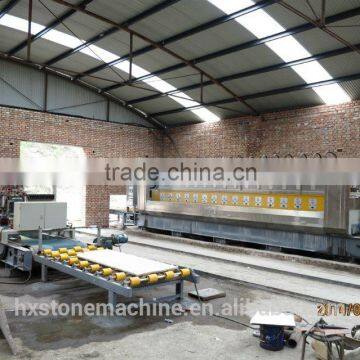

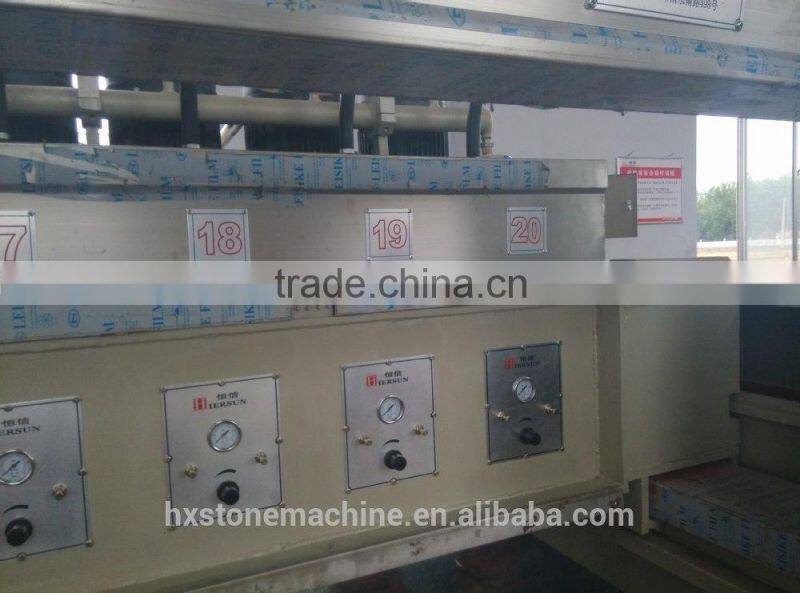

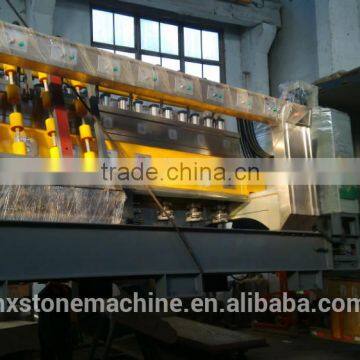

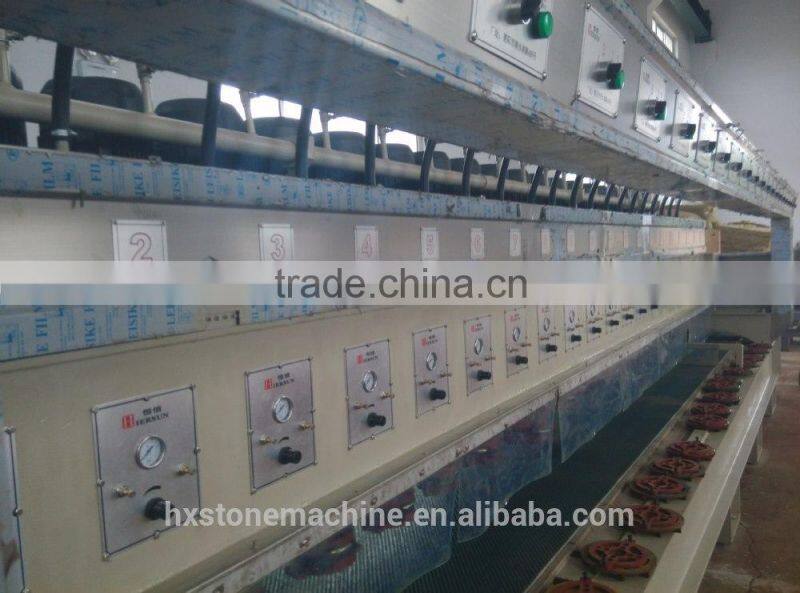

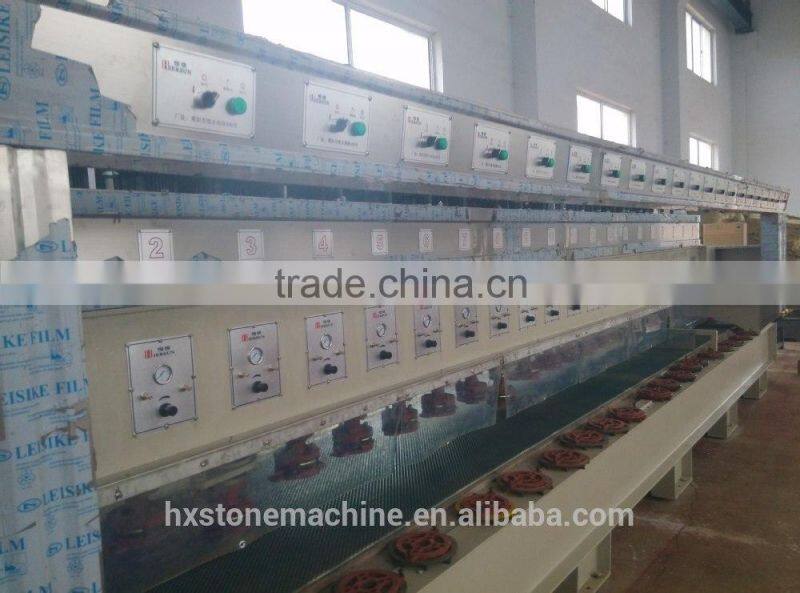

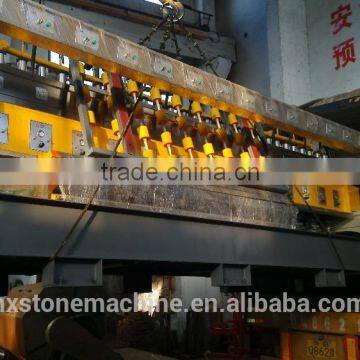

Pictures of 20 heads machine:
