Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine

Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine thumbnail-1
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine thumbnail-2
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine thumbnail-3
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine thumbnail-4
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine thumbnail-5
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine thumbnail-6
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine photo-1
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine photo-2
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine photo-3
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine photo-4
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine photo-5
Single Head Stone Milling Machine Granite Marble Stone Milling Polishing Machine photo-6
US$ 8,500 - 14,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Polishing Machine
Use:
Granite
Contact Supplier Request Quote Chat Now
Laiyang Hiersun Stone Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Polishing Machine
Use Granite
Production Capacity 100%
Place of Origin Shandong, China
Brand Name Hiersun
Model Number QM
Voltage three phase
Power(W) 18.5KW
Dimension(L*W*H) Model
Weight 3500KG
Certification SGS
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

  Single head stone milling machine granite marble stone milling polishing machine





Company Information

We have manufacturing stone processing machine since the year 1992, so we have enough experience in

providing you high quality and matured machines

We provide:1.  stone cutting, polishing, calibrating, profile making machine and so on. 2. artifcial marble stone and quartz stone producing machine line. 3. Stainless steel polishing machine





Our Services

we can send our engineer to your factory to install and explain how to use these machines, we also have

 oversea agent.





Packaging & Shipping

Wood packing or waterproof membrance for  Single head stone milling machine granite marble stone milling polishing machine





Product Description

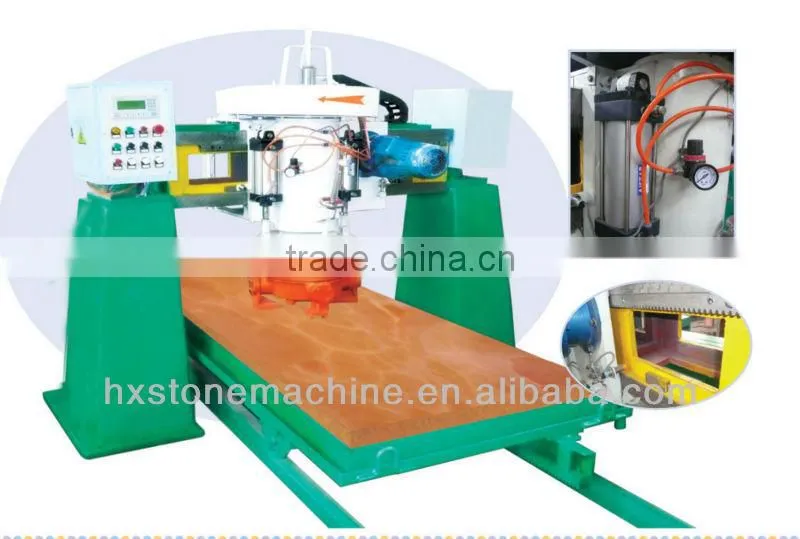

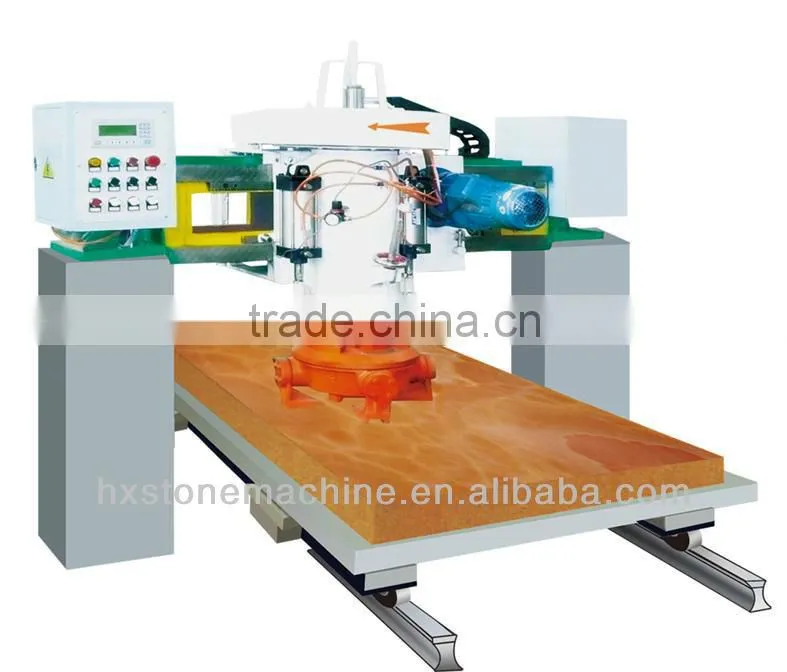

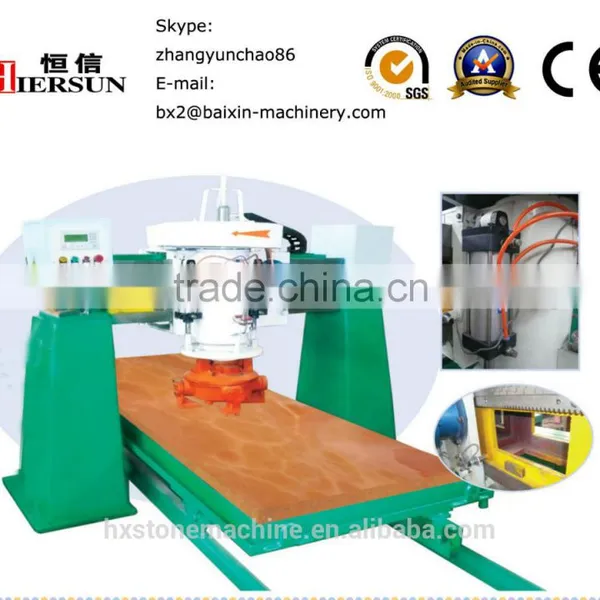

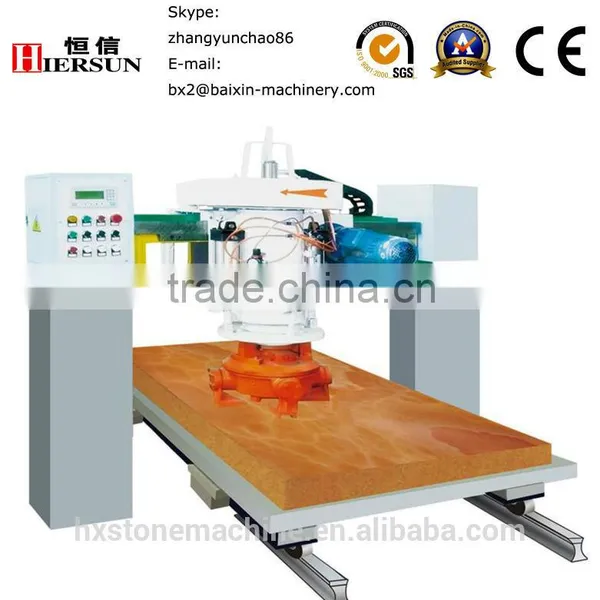

Single head stone milling machine granite marble stone milling polishing machine



    The machine works along the slideway , and the millstone moves along bridge like frame and has pneumatic pressure. All these make the slabs even and bright.

     It's controlled by PLC program, and can work automtically.

          Type

Parameter

    QM90

     QM120

     QM180

QM220

Max  Width(mm)

     900

      1200

      1800

2200

Max length (mm)

     3000

      3000

      3000

3000

Main Power (Kw)

      15

       15

       15

15

Total Power(Kw)

     17.25

      17.25

      17.25

17.25

Max Thickness(mm)

     120

      120

      120

120

Total Weight(Kg)

     2700

      3000

      4000

5000

Machine Size(mm)

6500×2200×2000

6500×2500×2000

6500×2900×2000

6500X3300X2000

 Single head stone milling machine granite marble stone milling polishing machineSingle head stone milling machine granite marble stone milling polishing machine

Single head stone milling machine granite marble stone milling polishing machineSingle head stone milling machine granite marble stone milling polishing machine

Single head stone milling machine granite marble stone milling polishing machine
