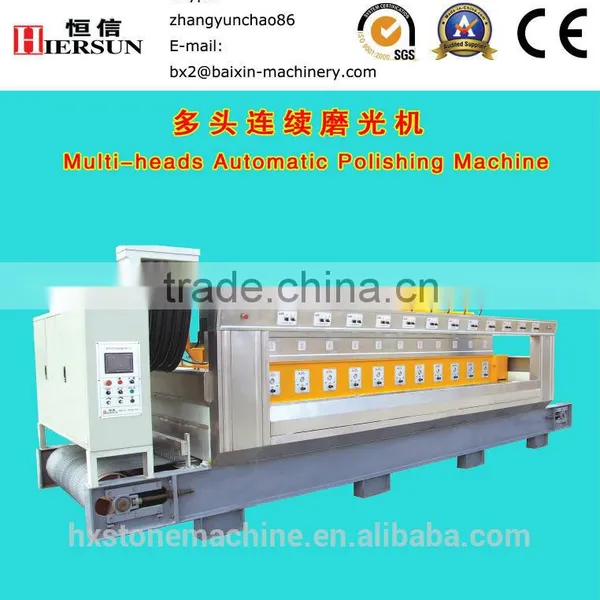

Automatic multi-heads stone polishing machine granite stone cutting and polishing machine polishing machine for stone
We have manufacturing stone processing machine since the year 1992, so we have enough experience in
providing you high quality and matured machines
We provide:1. stone cutting, polishing, calibrating, profile making machine and so on. 2. artifcial marble stone and quartz stone producing machine line. 3. Stainless steel polishing machine
we can send our engineer to your factory to install and explain how to use these machines, we also have
oversea agent.

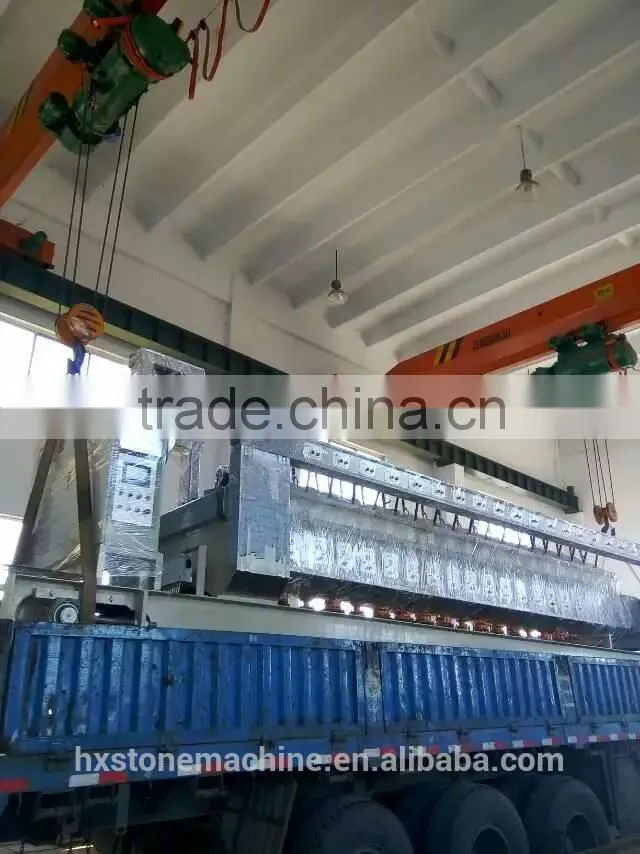

Wood packing or waterproof membrance for Automatic multi-heads stone polishing machine granite stone cutting and polishing machine polishing machine for stone
1. Out airbag, long life using, lower hazard rate, lower maintenance cost, etc advantage.
2. With the best quality belt with famous brand, thickness accord, promise the thickness of the slab.
3. Belt move and bridge move is controlled with the automatic controlling system
4. With lower power (7.5kw single head), lower cost, cost is only 0.6USD per square meter, Capacity is 38 square meter per hour. The brightness for G3786 can catch up 85 degree.

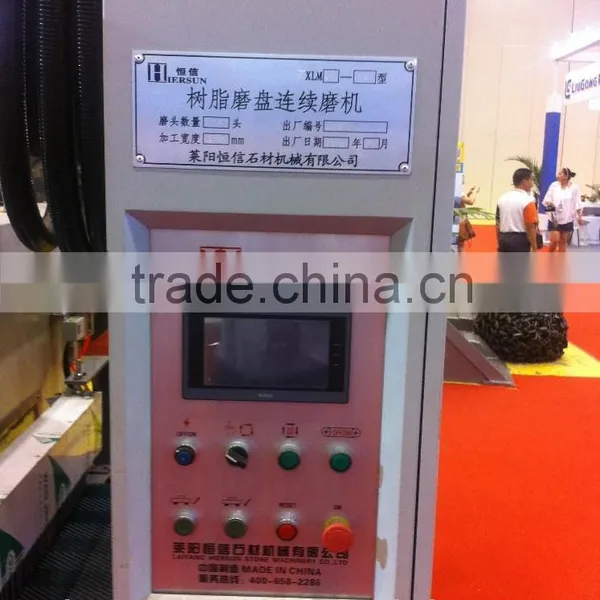

5.The control system of this machine adopts PLC terminal control with LCD touch screen terminal for parameter setting and fault prompts during operation,etc.It is applicable to continuous grounding and polishing granite tile.Operating speeds of plate conveying and crossbeam of polishing disc are controlled by frequency converer;working pleasure and the polishing width of tile are adjustable within the setting values.This machine can also automatically identify the shape of tile,so that each polishing disc(polishing head)could automatically lift and lower according to the identified shape of tile,and conduct tracking records for tile polishing at the same time.The overall machine is produced according the standard requirements with performance up to the leading domestic level
6. All the electrical parts adopt famous brand, the PLC is Siemens and other electrical parts mainly are Schneider, so these can ensure the machine’s stability and long-term working.
Technical data
Processing width: max 900mm,1300mm
Processing thickness: max30mm
Grinding Heads: 9/12/16/18
Capacity: 300-500 square meter per 8hours
Grinding head power: 9/12/16/18x7.5kw
Belt move power1.5kw
Bridge move power 3kw
Belt move speed:600-2200mm/min
Pressure: 0.6-0.8Mpa
Cooling water pressure: in 0.15Mpa
Consumption water for single grinding:25L/min
Machine size:7500*2200*2100mm,9600*2200*2100mm, 10800*2200*2100mm

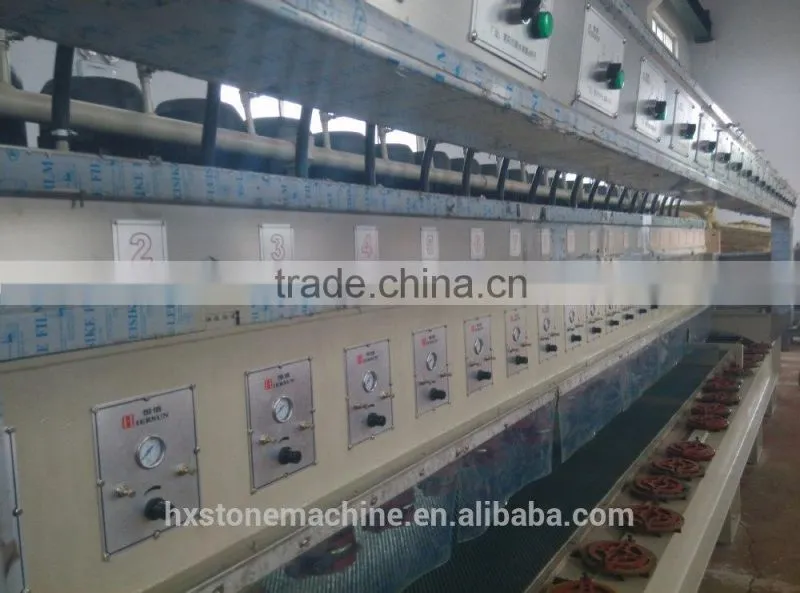

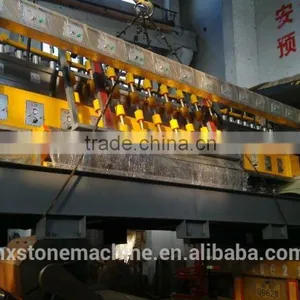

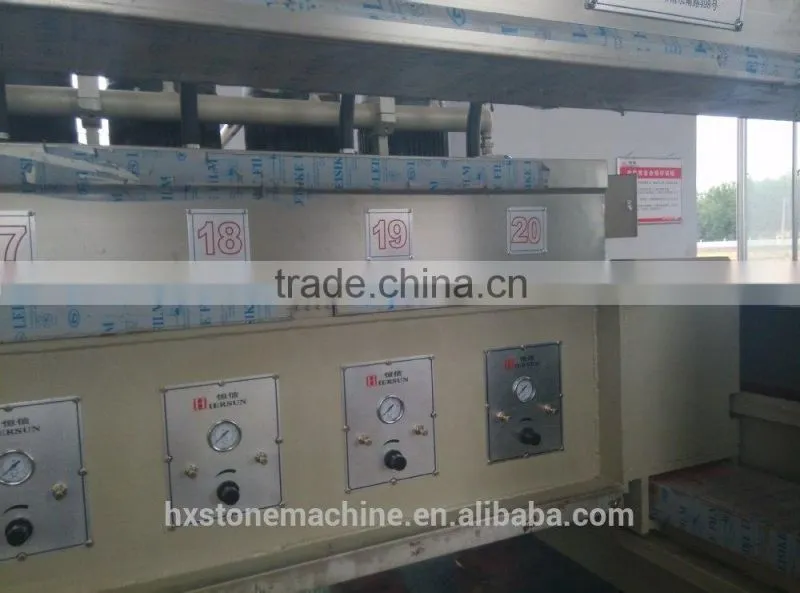

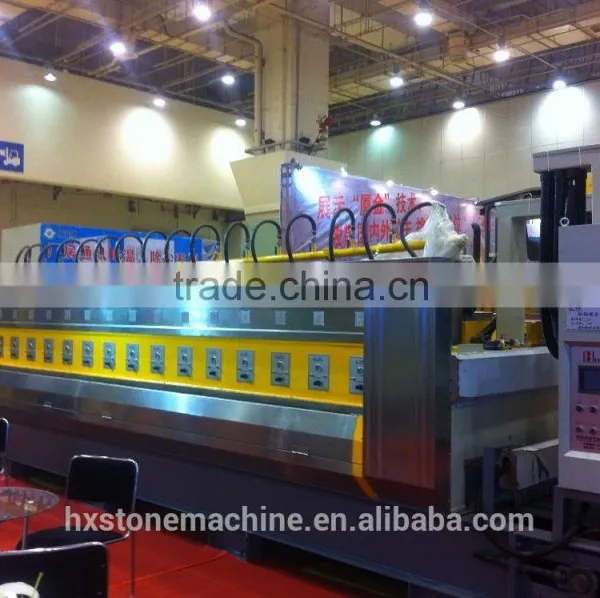

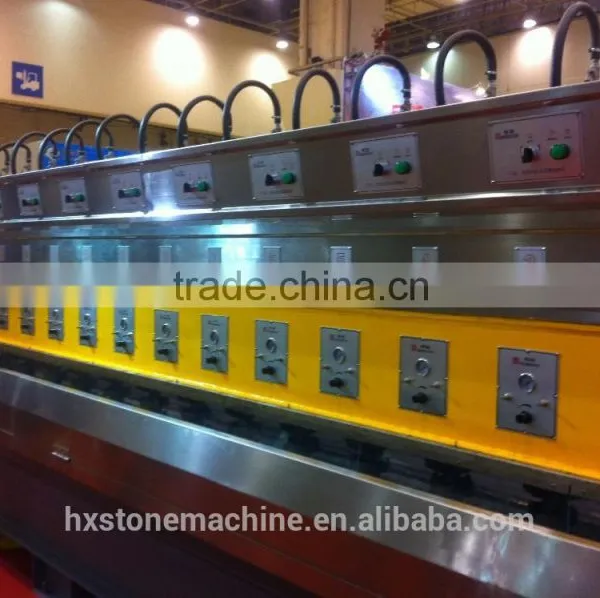

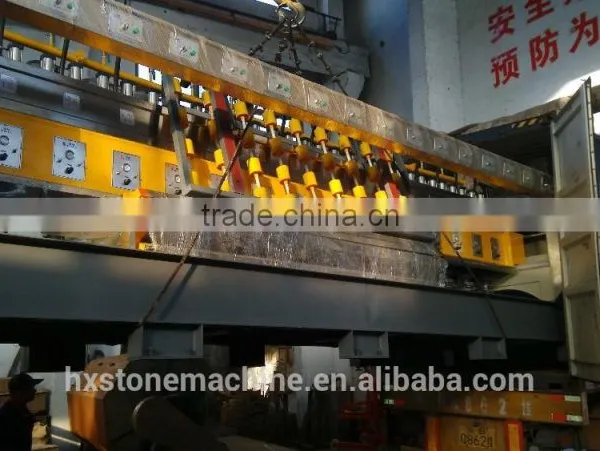

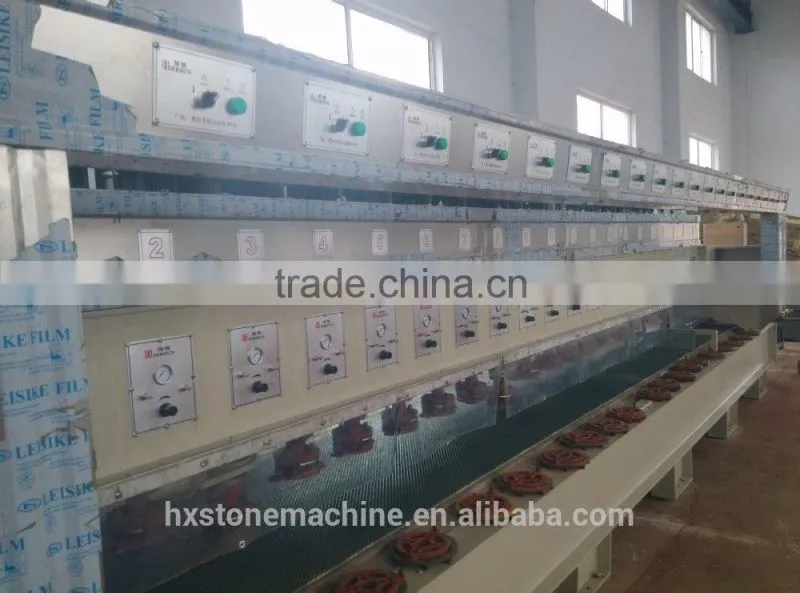

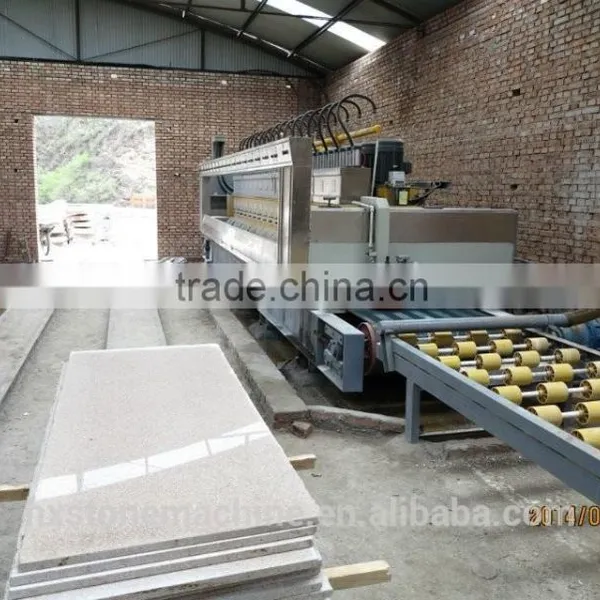

Pictures of 20 heads machine:
