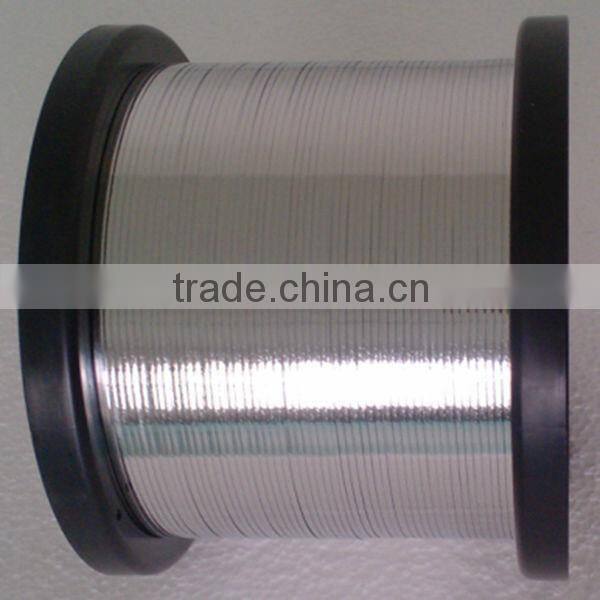

Lead and Lead Free Solar Panel Material PV Ribbon

FOB Price

US$ 13 - 18 / Kilogram

1 Kilogram(Min. Order)

Port TAINJIN XINGANG
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	EDEL
Model Number	Sn60Pb40/Sn62Pb36Ag2

Product Description

PV Ribbon is composed of coating alloy and copper, and divided into tabbing wire and bus wire.

1.Tabbing wire connects the positive and negative sides of the solar cells in series

2.Bus wire concentrates cell string into junction box and channels electrical current

Mechanical Property:

1,Elongation≥25%

2,Tensile strength≥170MPa

3,Side camber≤3mm/m

4,Soldering tin melting point: 180−230°c

Core Copper of TU1 Off-Cu or ETP1:

1,Copper Purity ≥99.97%, Oxygen≤10ppm

2,Resistivity:ρ_20≤0.0172Ω • m m²/m

Electric Resistivity of Ribbon:

(2.1−2.5)X10^-2 • mm²/m

Plated Thickness:

15-25um per side

Composition of Plated Material:

1) Lead series products:

A,Sn 60%, Pb 40%

B,Sn 63%, Pb 37%

C,Sn 62%, Pb 36%, Ag 2%

D,Sn 60%, Pb 39.5%, Ag 0.5%

2) Lead-free series products:

A.Sn 96.5%, Ag 3.5%(Bi)

B.Sn 97%, Ag 3% and so on

Tabbing wire specification

Bus wire specification

Packaging & Shipping

1.4 .5kg per spool with vacuum film, 4 or 6 spools in a carton box with dustproof &waterproof and shockproof for long transportation. 2.Cutting packing

FAQ

What is the popular dimension PV Ribbon wire?

Thickness and width for popular items: 0.23X1.5/ 0.23X1.6/ 0.20X1.8/ 0.18X2.0/ 0.2X5.0/ 0.29X6.0mm
