Help CenterLower Cost Galvanized Steel Sheet Door Frame Roll Forming Machine
Related Products
-
Cold Steel Roll Forming Metal Door Rolling Shutter Machine Quality ChoiceUS$ 5,000 - 19,000MOQ: 1 Set -
Garage Shop Steel Roller Shutter Door Roll Forming MachineUS$ 12,000 - 15,000MOQ: 1 Set
-
Galvanized Steel Roller Shutter Door Making MachineUS$ 9,000 - 15,000MOQ: 1 Set
-
Galvanized Steel Door Frame Roll Forming Bending Making MachineUS$ 13,000 - 17,000MOQ: 1 Set
-
Steel Plate Garage Door Rolling Shutter MachineUS$ 5,000 - 19,000MOQ: 1 Set
Can't find a reliable manufacturer for Steel Sheet Door Frame Roll Forming Machine?
Huachen Roll Forming Machinery is your best choice:
|
ISO/CE certification |
Exported to more than 70 countries | |
| Roll forming machine is suitable for various kinds of steel plate | |
We have mature foreign trade team and professional design team | |
| We offer 1 year free warranty and lifelong technical support |

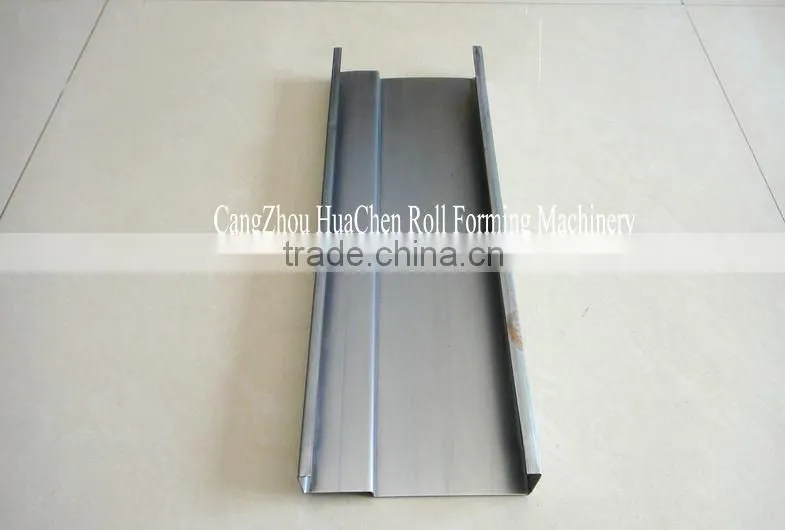

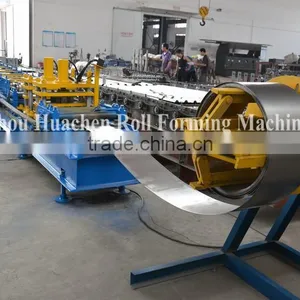

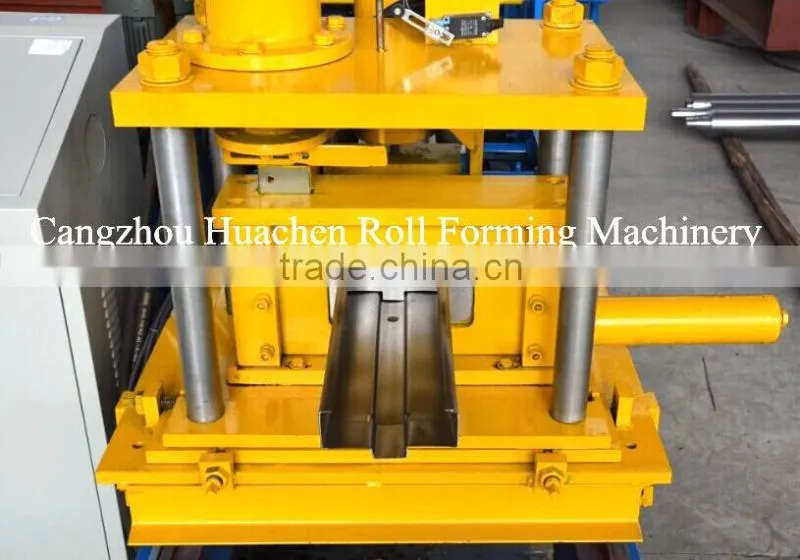

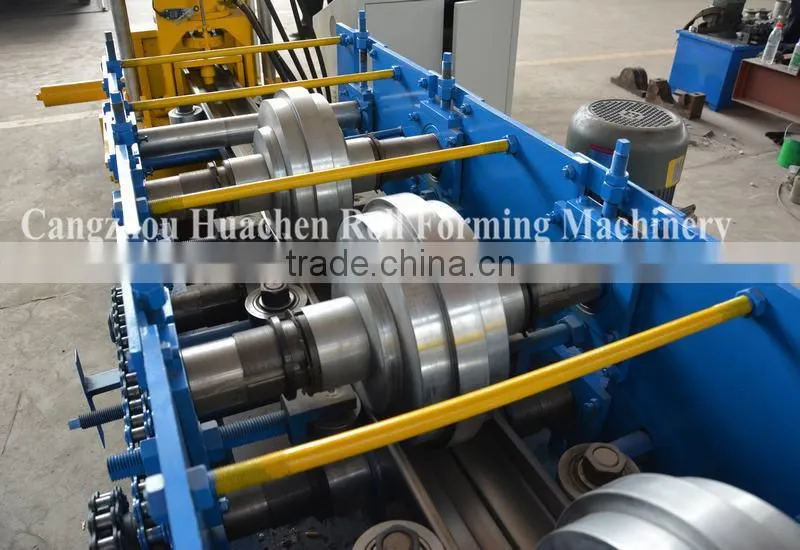

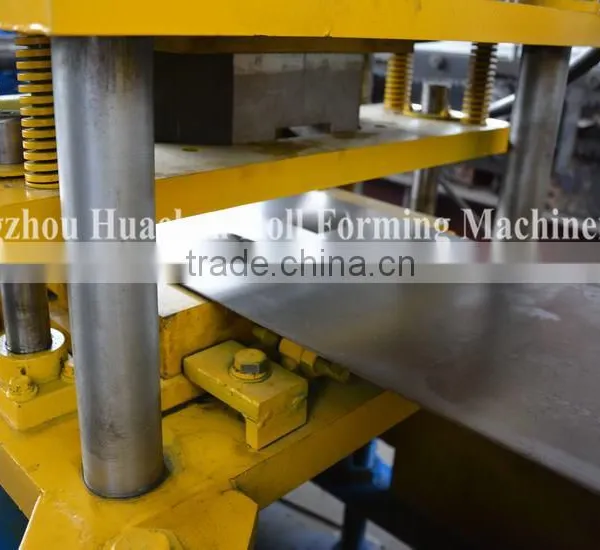

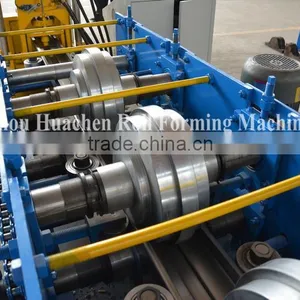

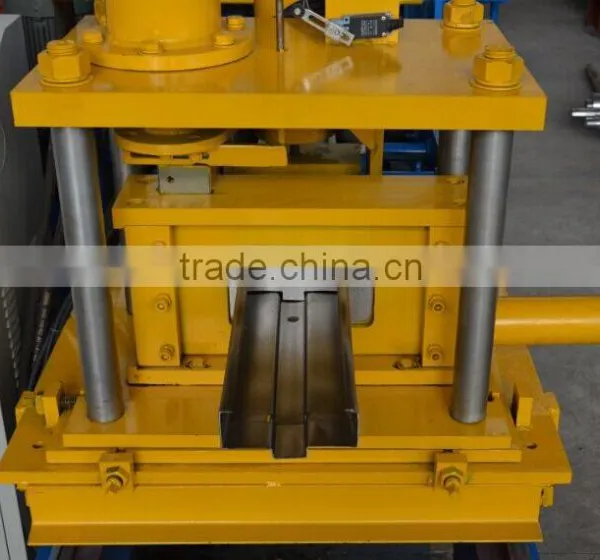

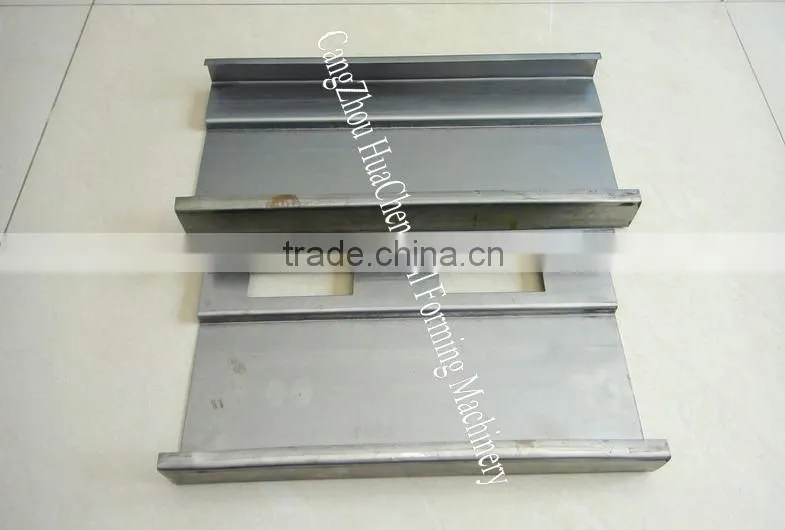

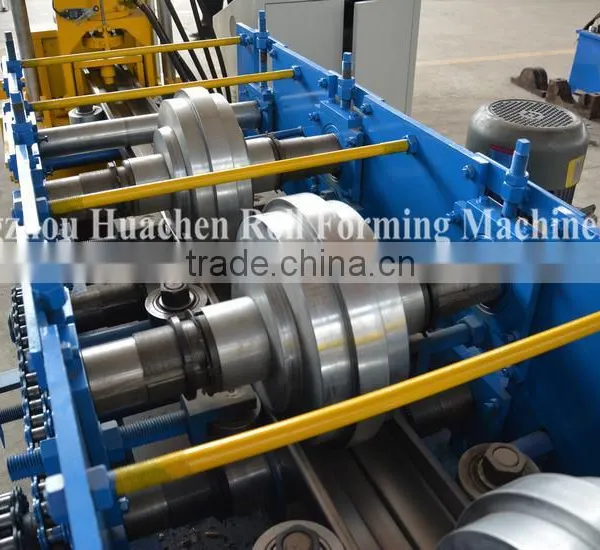

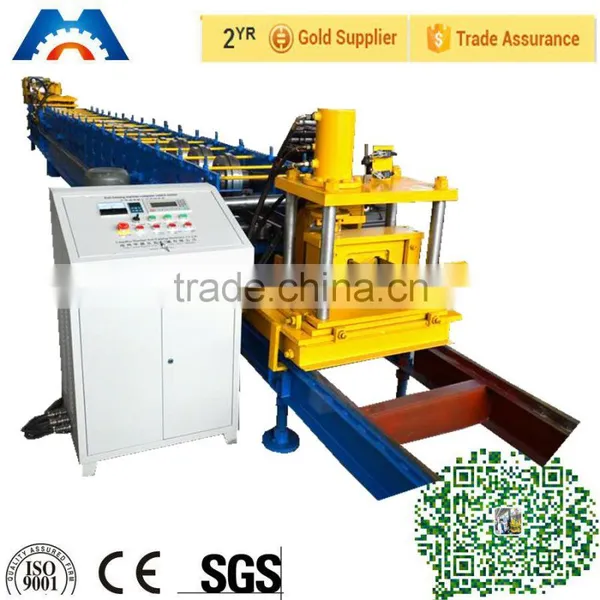

Clear pictures of Steel Sheet Door Frame Roll Forming Machine, want to know more ?

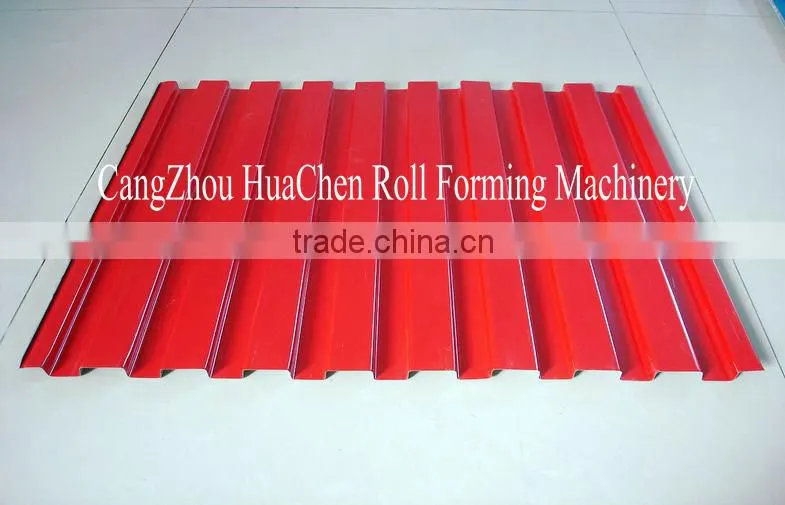

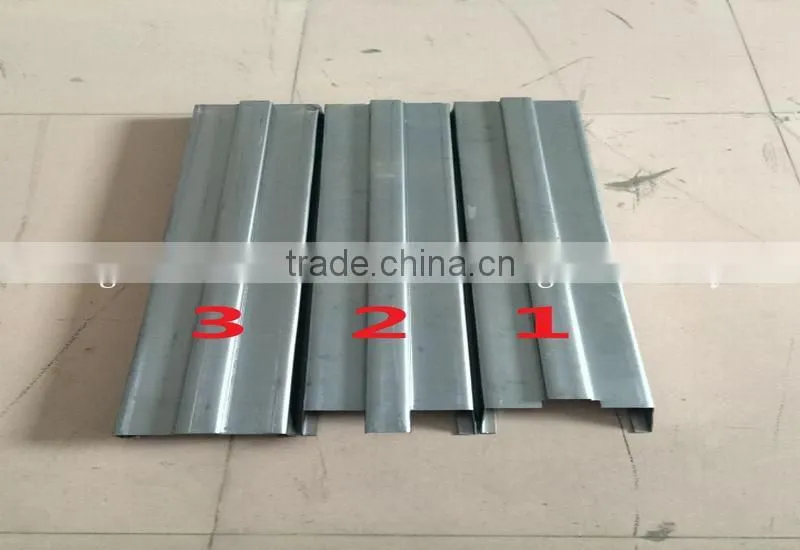

When roll forming machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
More details of Steel Sheet Door Frame Roll Forming Machine , want to operate it yourself ?
No. |
Steel Sheet Door Frame Roll Forming Machine |
|
1 |
Suitable material |
Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 |
Width of material |
185/220/270mm or as you required |
6 |
Thickness of material |
1.5mm or as your needs |
2 |
Working speed |
8-10m/min, can be 20m/min |
3 |
Main motor power |
7.5kw with cycloidal reducer |
4 |
Hydraulic station power |
5.5kw |
5 |
Electrical control system |
PLC control system |
7 |
Shaft diameter |
80mm |
8 |
Roller station |
18 rows Depends on profile drawing |
10 |
Dimension |
8500x1500x1510mm |
11 |
Weight |
About 3.5 T |
12 |
Voltage |
380V 3phase 50HZ or as the customer's requirements |
13 |
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
14 |
Material of cutting |
Cr12 mould steel with quenched treatment |
15 |
Working time |
Can be 24 hours |
16 |
Workers |
1-2 only |

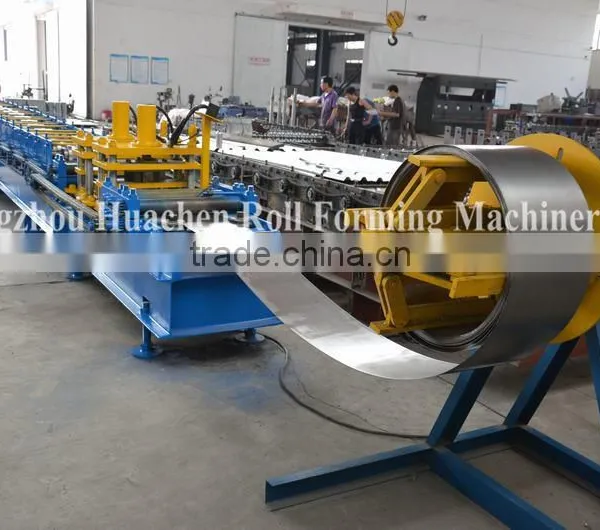

Let me show you how to operate Steel Sheet Door Frame Roll Forming Machine
Decoiling→Feeding & Guiding→Roll Forming→Cutting→Finished Products To Support Table
Need Shutter door and related accessories ? Click each photo for more information.
Want more automatic production line to save labour cost ? Option device may help you.
Worrying about machine packing and delivery ?
1.Main Steel Sheet Door Frame Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
What's your Payment Terms and Delivery?
30% deposit by T/T in advance and 70% balance after your inspection machine and confirmation before delivery.
Of course your payment terms are acceptable.
After we get down payment, we will arrange production . About 30-45 days for delivery.
Why choose Huachen ?
We do high standard roll forming machine for export about 9 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 70 countries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.
Huachen People togerher with our customers
We have many years experience of export and know very well about the different needs of customers from both in developing countries and developed countries, and Provide a large number of customers with satisfactory design plan. Here are the pictures when customers visit us .
.
Huachen People at Canton Fair, where are you ?
Welcome to visit us at anytime and Looking forward to cooperate with you.
Where are we and way to visit Huachen:
Huachen Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:
1.Fly to BEIJING Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.
Free quotation with more details please send me Inquiry now, You will get everything within 12 hours.
