Specifications
1.10 years experience2.500 sets of machines produced
3.CE and ISO certificate passed
4.speed:4m/min
5.High efficiency

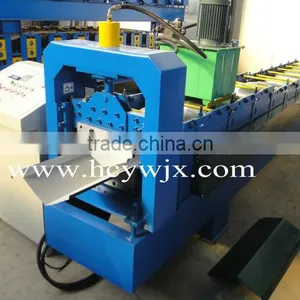

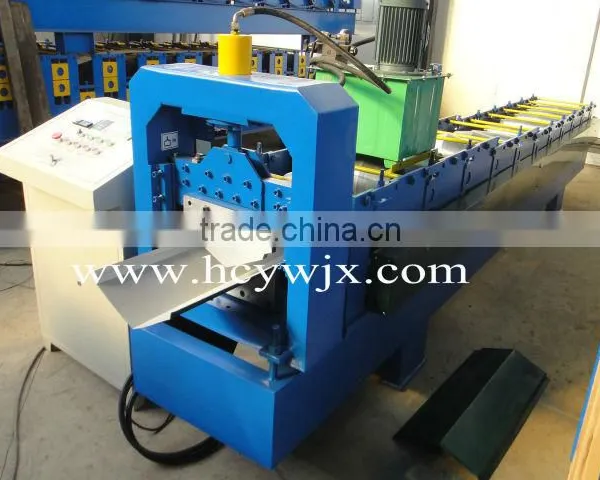

Common Use Color Steel Ridge Cap Sheet Roll Forming Machine
Common Use Color Steel Ridge Cap Sheet Roll Forming Machine Parameter
No. |
main parameter of Ridge Cap Roll Forming Machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
400mm |
3 |
Rollers |
10rows |
4 |
size |
6.6*1.15*1.51m |
5 |
Main moter power |
3kw |
6 |
Hydraulic unit power |
3kw |
7 |
Thickness of the plate |
0.3-0.6mm |
8 |
Productivity |
4m/min |
9 |
Diameter of the roller |
Φ66mm |
10 |
Voltage |
380V 50Hz 3phases |
12 |
Material of the cutting plate |
Cr12 |
15 |
Control system |
PLC control |

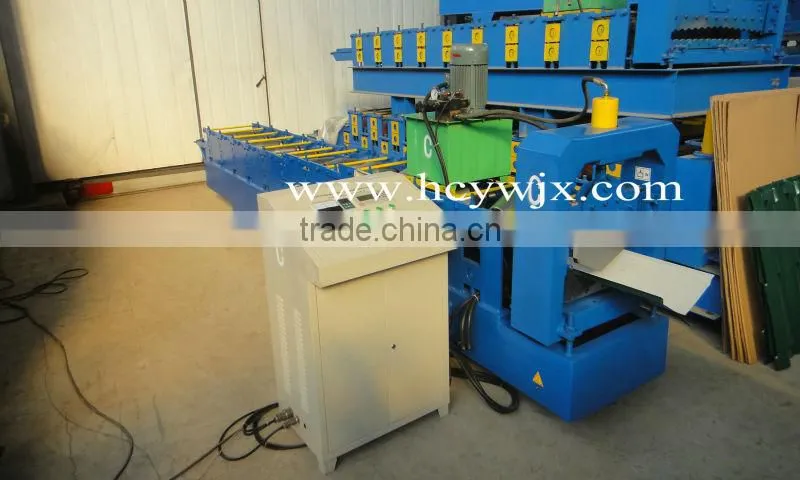

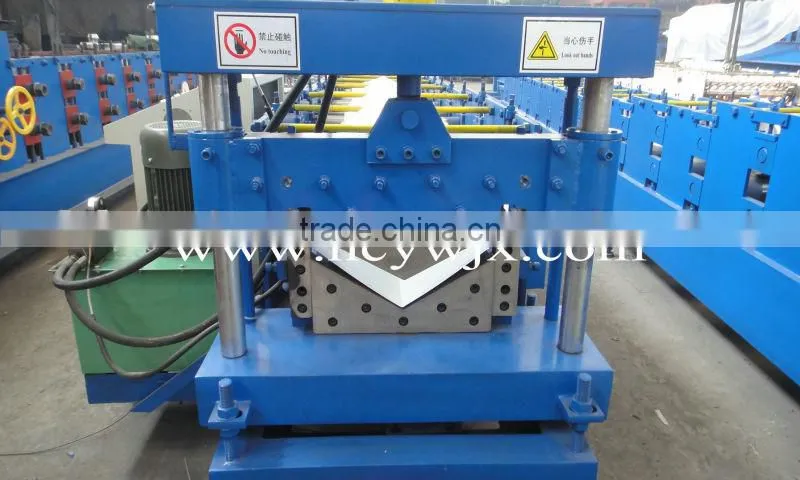

Common Use Color Steel Ridge Cap Sheet Roll Forming Machine Main Machine

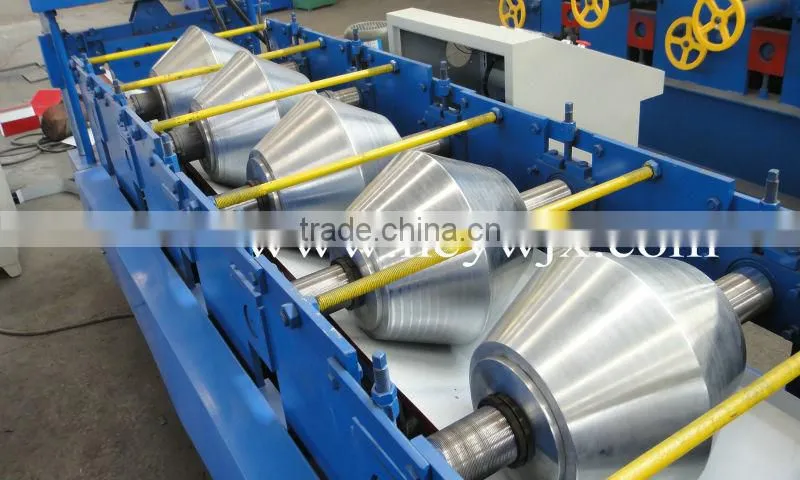

Rolling material: Forging Steel 45#,Rolling galvanization thickness:0.05 mm
Equipment components: Man-made uncoiler-roll forming machine-computer control system-
hydraulic control system-cutting
Common Use Color Steel Ridge Cap Sheet Roll Forming Machine
This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.

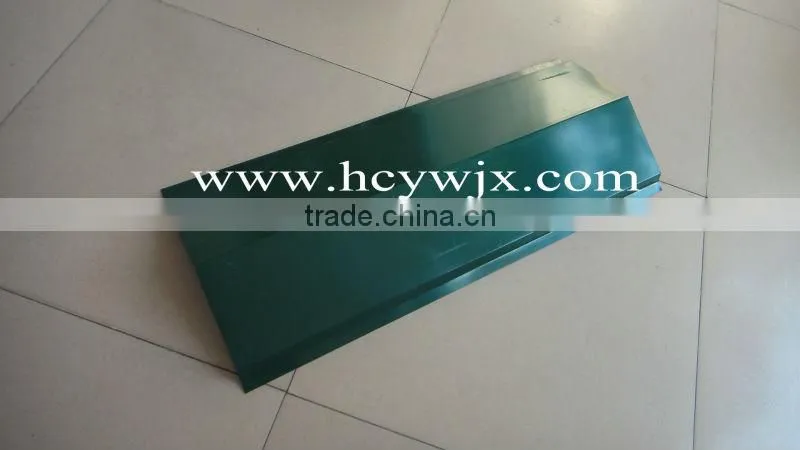

Sample
We have a professional design team,
Can also design and manufacture according to customer's requirement.
Loading Scene
We also have professional worker in charge of loading to make sure the machine without broken during transportation
ISO certificated
Thank you for your attention about our products. Your support is our progressive force
Hoping have a chance to cooperate with you. Thanks
