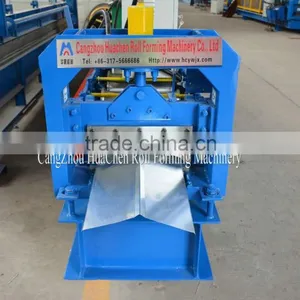

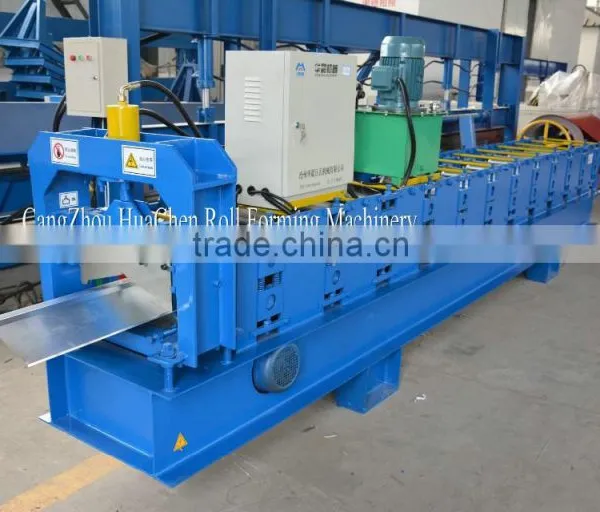

Help CenterChina Supplier New Products Metal Roof Ridge Cap Panel Tile Roll Forming Machine Importer
Related Products
-
Express China Supplier Roof Ridge Cap Roll Forming Machine ImporterUS$ 7,000 - 30,000MOQ: 1 Set -
Custom Design Automatic Steel Roof Ridge Cap Forming Machine for Sale Supplier's ChoiceUS$ 15,000 - 27,000MOQ: 1 Set
-
China Manufacturing Professional Galvanized Metal Sheet MachineUS$ 5,000 - 19,000MOQ: 1 Set
-
China Glazed Metal Sheet Ridge Cap Tile Cold Roll Forming Making MachineUS$ 8,000 - 29,000MOQ: 1 Set
-
Automatic Aluminum Metal Roof Ridge Cap Making MachineUS$ 8,000 - 15,000MOQ: 1 Set

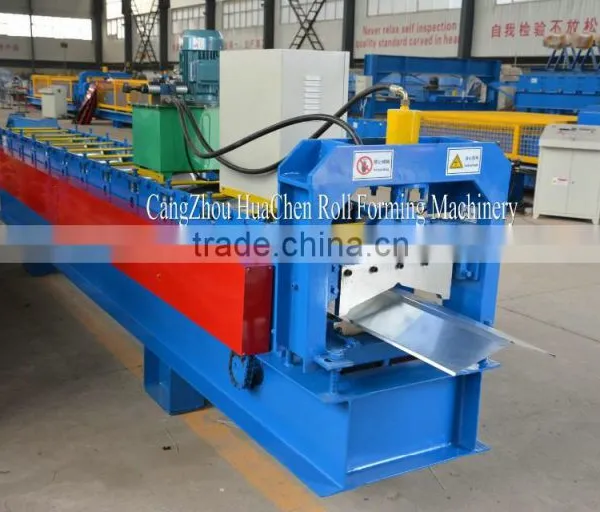

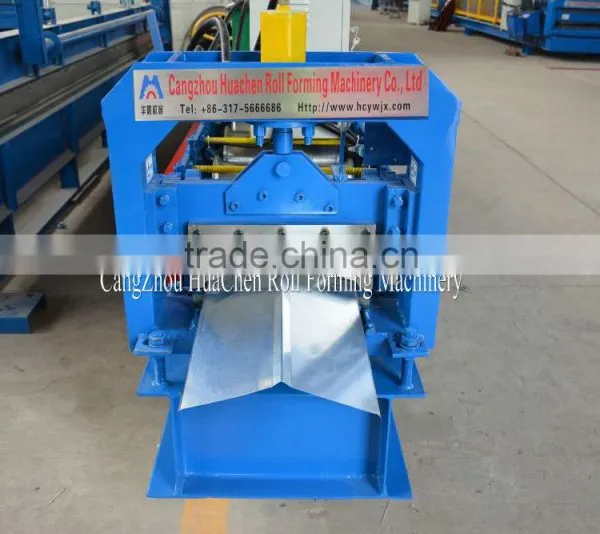

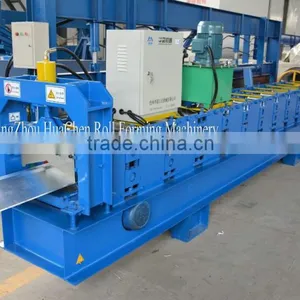

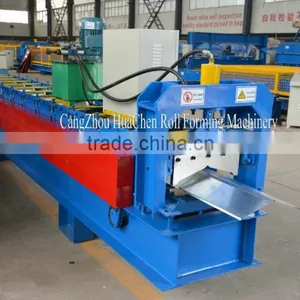

1. Drawing and Product Sample
2.Technical Parameter
No |
|
|
1 |
Dimensions (L*W*H) |
6120*1500*1510mm |
2 |
Total power |
Main motor power -4kw Hydraulic station power-4kw |
3 |
Rows of rollers |
12 rows |
4 |
Productivity |
8-10m/min |
5 |
Diameter of shaft |
70mm
|
|
6
|
Voltage |
380V 50Hz 3phases |
3. The Chart of Process Flow
Manual Uncoiler—Roll Forming Machine—Computer Control System—Hydraulic Control System — Pressing—Form Cutter
4.Specification of Components:
No |
|
Technical Specification & Remark |
1 |
Manual Uncoiler
|
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:2T Inner diameter: 450-508mm |
2 |

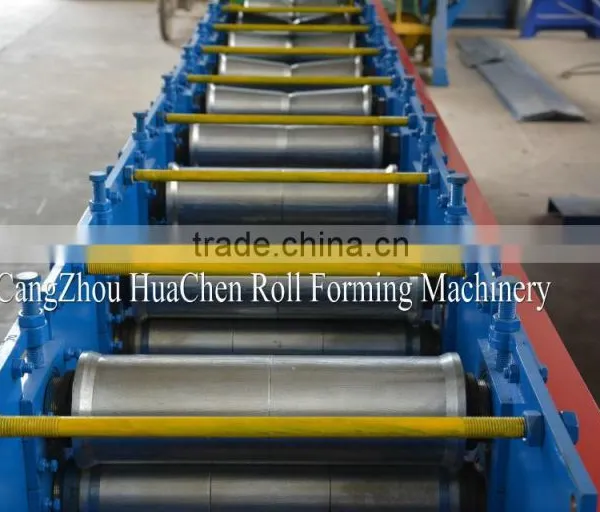

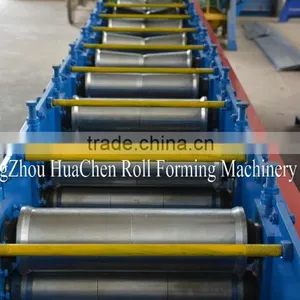

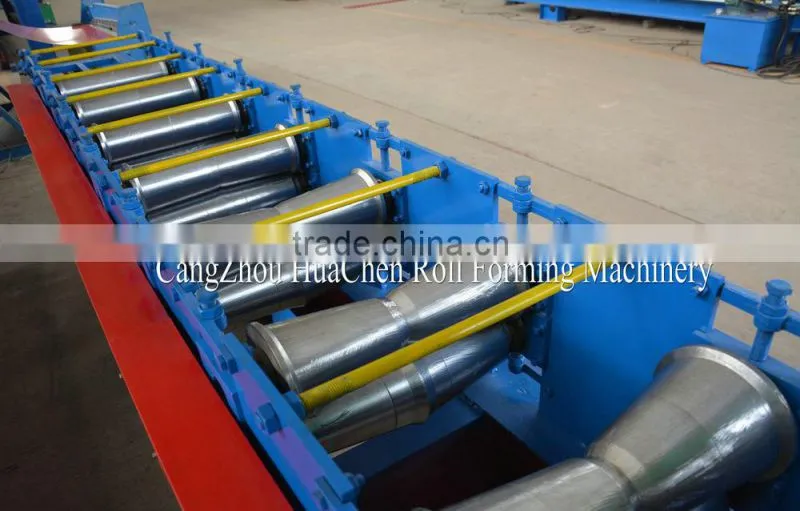

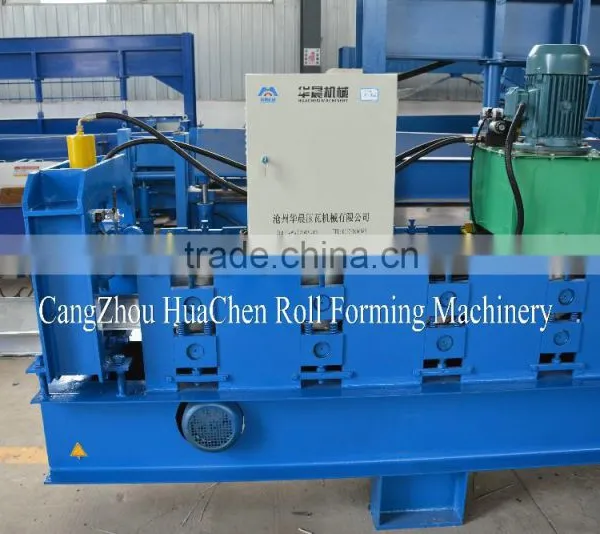

Main Roll Forming Machine
|
Material of rollers:45# steel,roller surfaces polishing, hard plating . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
|
3 |

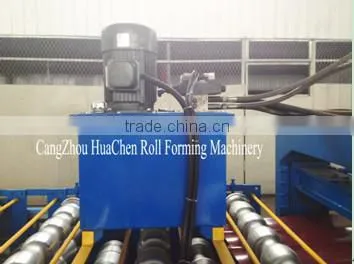

Hydraulic System
|
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Power:4kw |
4 |

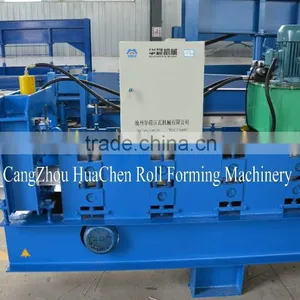

Computer Control Cabinet
|
The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. PLC:EURA |
5 |
Press Form
|
Material of blades: Cr12,quenching treatment |
6 |

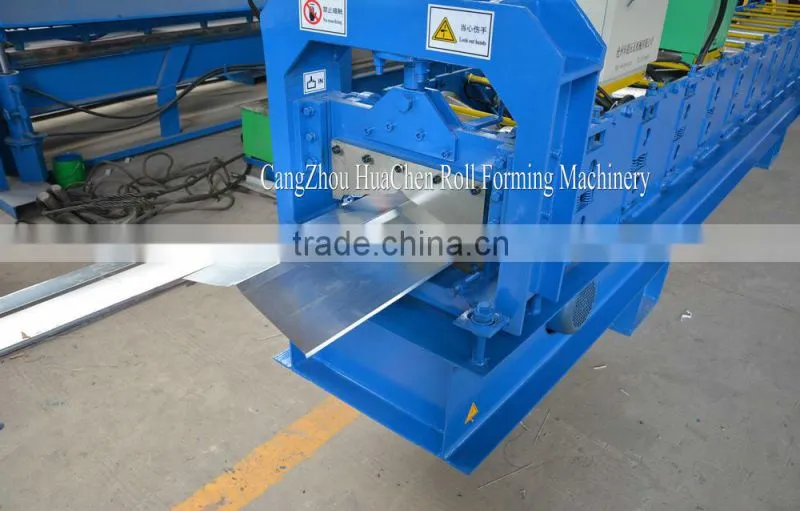

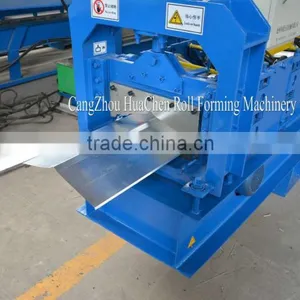

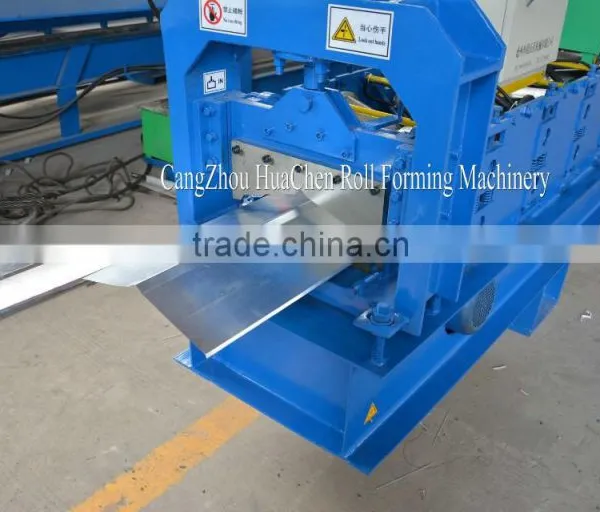

Shearing Mechanism
|
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
7 |
Spare Parts |
One box |

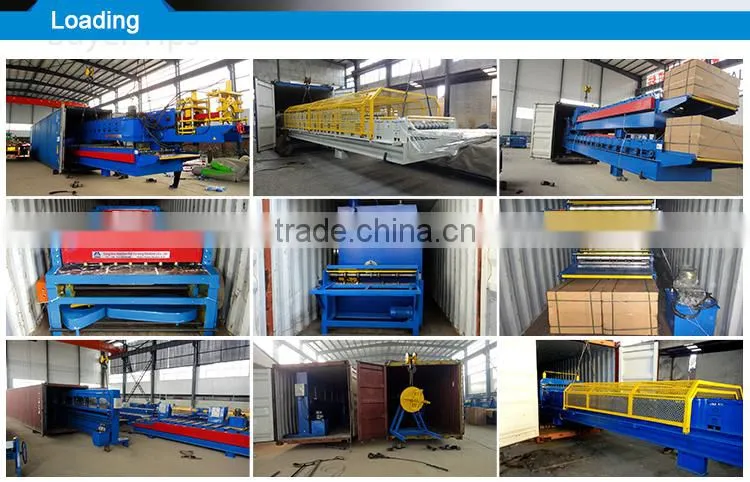

4. Packing & Delivery
Main machine is nude , the computer control box is packed by carton box . All machines need one 20 feet container to hold. Within 45 days after receiving deposit
5. Warranty
One year , and we will provide technical support for whole life of the equipment
6. Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
