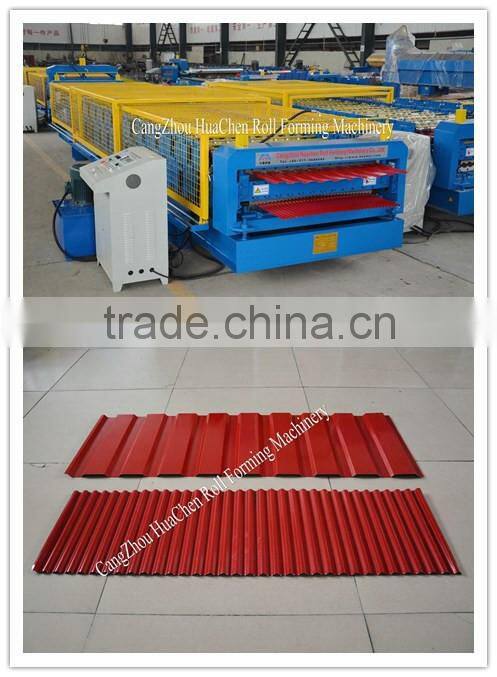

2. HC35-27 corrugated roofing sheet machinery prices, roll forming machine germany
| NO | Model |
HC26-25-1250 roll forming machine germany |
| 1 | Suitable Material | color steel sheet , galvanized steel sheet , aluminium sheet |
| 2 | Width of Material | 1250mm or as you required |
| 3 | Thickness of Material | 0.3-0.6mm or as your needs |
| 4 | Working Speed | 8-10m/min |
| 5 | Main Motor Power | 4 KW with cycloidal reducer |
| 6 | Hydraulic Station Power | 4 KW |
| 7 | Electrical Control System | PLC control system |
| 8 | Shaft Diameter | 70mm |
| 9 | Roller Station | 11 rows and 11 rows; or depends on profile drawing |
| 10 | Dimension | 8000*1550*1910mm |
| 11 | Weight | about 5T |
| 12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
| 13 | Material of Roller | high grade 45# forged steel plated with hard chrome plating |
| 14 | Material of Cutting | Cr12 mould steel with quenched treatment |
| 15 | Working Time | can be 24 hours |
| 16 | Workers | 1-2 only |
3. HC35-27 corrugated roofing sheet machinery prices, roll forming machine germany
No |
Components |
Technical Specification & Remark |
1 |
Manual Uncoiler
|
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T Inner diameter: 450-508mm |
2 |

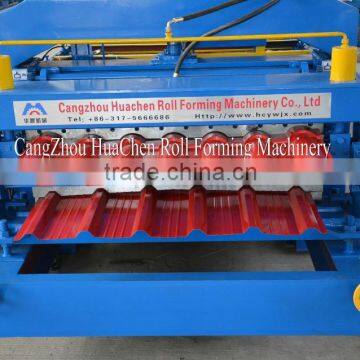

Main Roll Forming Machine
|

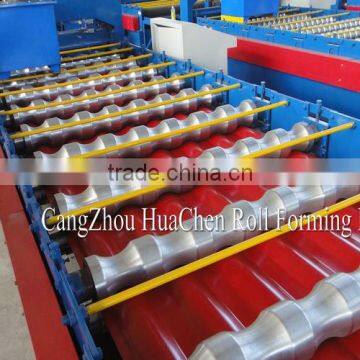

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
|
3 |
Hydraulic System
|
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Power:4kw |
4 |
Computer Control Cabinet
|
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |
5 |
Shearing Mechanism
|
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
6 |
Spare Parts |
One box |

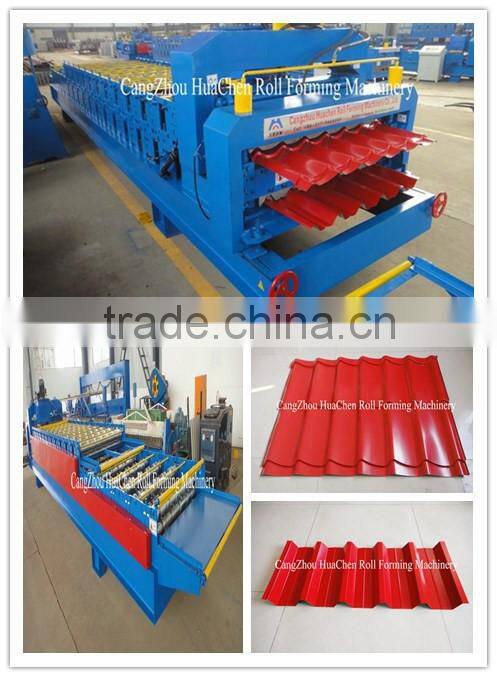

4. corrugated roofing sheet machinery prices, roll forming machine germany
Material Supporting Frame--Roll Forming Machine--Hydraulic Control system--Automatic Control System--Automatic Shearing Mechanism--Products Receiving Tables
If you want more profiles, please click the photo links below.

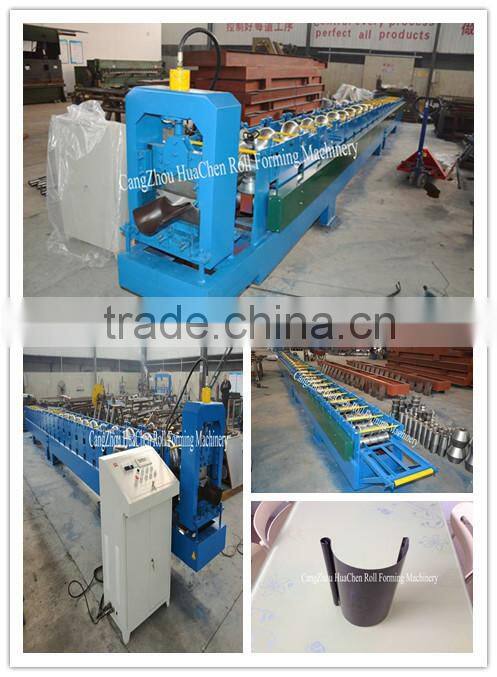

HC135-285 Gutter Making Machine HC175-330 Gutter Forming Machine
6.Certification: ISO9001-2008 quality system certificate , CE security certificate , BV certification and SGS certification

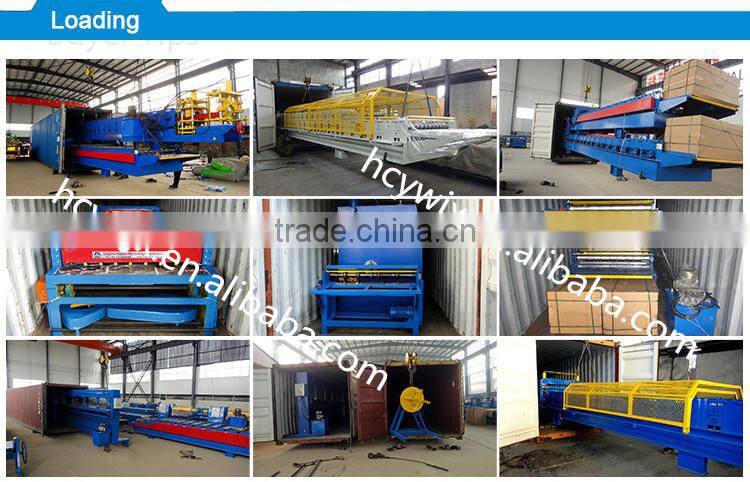

7.Packing & Delivery
Main roll forming machine is nude but fixed in the container with iron wire to ensure that the machine is kept from colliding; the computer control box is packed by carton box . One set of machine needs one 40 feet container to hold. Within 45 days after receiving deposit.
8. Service
- Technology R&D
We have R&D centers and innovative designing teams for different kinds of production lines.
- Quality Control
We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.
- After Sale Service
Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
- Inspected by the Sellers
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
- Inspected by the Buyers
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
- Packing style
Main roll forming machine is nude but fixed in the container with iron wire to ensure that the machine is kept from colliding; the computer control box is packed by carton box . One set of machine needs one 40 feet container to hold. Within 45 days after receiving deposit.
- Installation and commissioning
Turnkey installation and commissioning of complete roll forming lines;
Supervision of installation and commissioning;
Training of Customers' technician/workers during commissioning;
Long-term operators of the mill, if requested;
- Breakdown support
Reliance's team of skilled and experienced engineers is equipped to deal with any type of breakdowns.
Immediate technical assistance and advice by phone and/or e-mail;
Technical service work performed on Customer's site, when required;
Urgent supplies of mechanical and electronic components;
- Spare parts
Fast supply of spare parts and wearing parts to cover foreseeable requirements
- Payment: T/T, 30% in advance, 70% before shipment;
- Delivery Time: 45 days after receipt of the deposit;
- Warranty: 12 months since the machine leave seller's factory.
- Maintenance: Life-long maintenance
