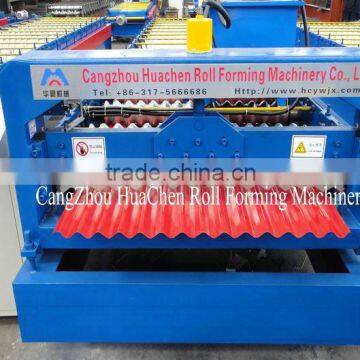

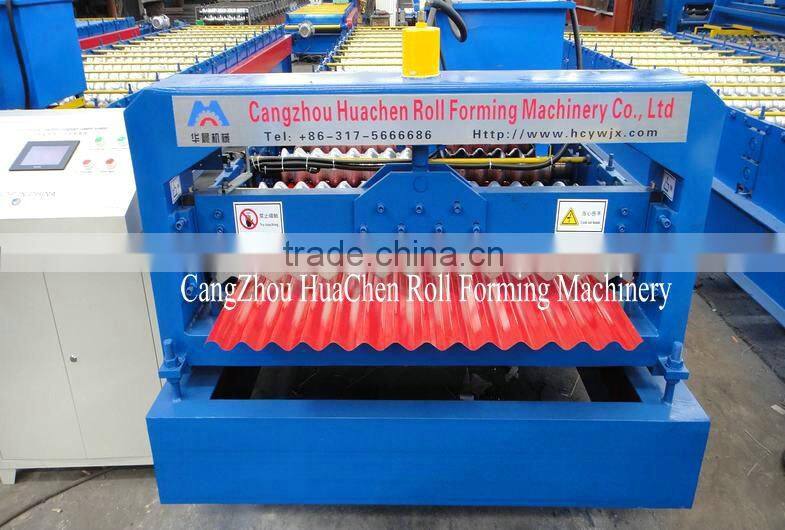

Help CenterZinc Metal Roofing Corrugated Sheet Forming Machine
Related Products
-
Corrugated Metal Roofing Panel Roll Forming MachineUS$ 8,000 - 19,000MOQ: 1 Set -
First Class Quality Galvanized Steel Profile Panel Roll Forming MachineUS$ 8,000 - 17,200MOQ: 1 Set
-
Hydraulic Steel Roof Corrugated Iron Sheet Making MachineUS$ 13,000 - 39,000MOQ: 1 Set
-
Metal Roofing Corrugating Iron Sheet Roll Forming Making MachineUS$ 8,000 - 19,000MOQ: 1 Set
-
Steel Profile Sheet Roof Corrugated Sheet Roll Forming MachineUS$ 8,000 - 29,000MOQ: 1 Set

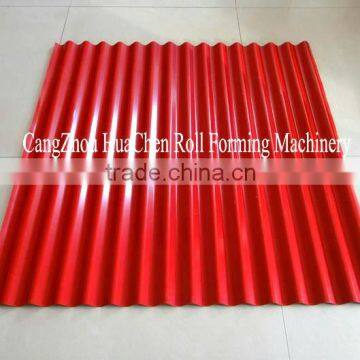

After Metal Roofing Corrugated Sheet Forming Machine finished,we take pictures and keep the finished sheets in our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
Detailed Parameters of Metal Roofing Corrugated Sheet Forming Machine, want to operate it yourself ?
No. |
Metal Roofing Corrugated Sheet Forming Machine |
|
1 |
Suitable material |
Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 |
Width of material |
1250mm or as you required |
6 |
Thickness of material |
0.3-0.6mm or as your needs |
2 |
Working speed |
8-10m/min |
3 |
Main motor power |
4kw with cycloidal reducer |
4 |
Hydraulic station power |
4kw |
5 |
Electrical control system |
PLC control system |
7 |
Shaft diameter |
70mm |
8 |
Roller station |
12 rows |
10 |
Dimension |
6200x1500x1910mm |
11 |
Weight |
About 3.6 T |
12 |
Voltage |
380V 3phase 50HZ or as the customer's requirements |
13 |
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
14 |
Material of cutting |
Cr12 mould steel with quenched treatment |
15 |
Working time |
Can be 24 hours |
16 |
Workers |
1-2 only |
Please Note: All the parameters can be designed as your requirement.

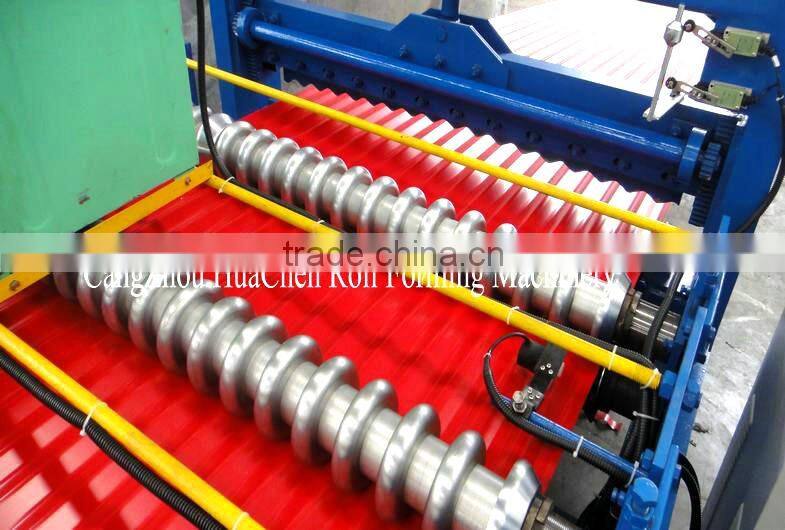

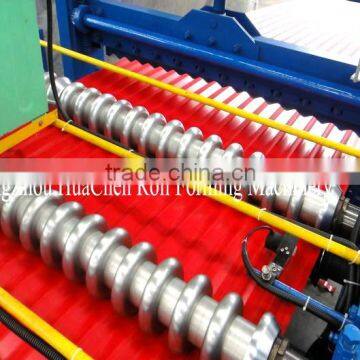

Let me show you how to operate Metal Roofing Corrugated Sheet Forming Machine
Decoiling→Feeding & Guiding→Roll Forming →Cutting→Finished Products To Support Table
Not interested in this design ? Here are other profiles for your reference.
Just tell me which one you intersted , I will offer all details .
Worry about Packing and delivery ?
1.Main Metal Roofing Corrugated Sheet Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
Why choose Huachen ?
We do high standard roll forming machine for export about 9 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 70 countries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.
