C Z purlin roll forming machine, C Z channel tile making machine
1. C Z chanel machine
Certification:ISO9001-2008 quality system certificate , CE security certificate , BV certification and SGS certification
2.C Z purlin roll forming machine
manual uncoiler—Roll forming machine—computer control system—hydraulic control system—form cutter
3.Technical Parameter of C Z chanel making machine
Number |
Item |
Specification |
Unit/Type |
1 |
Main roll forming machine model |
|
|
2 |
Rack structure |
c purlin&frame |
|
3 |
Raw material |
galvanized steel&iron&metal |
|
4 |
Original width |
175/465 |
mm |
5 |
Cover width |
80/300 |
mm |
6 |
Thickness of panel |
1.5-3 |
mm |
7 |
Yield strength |
250 |
Mpa |
8 |
Forming speed |
8-10 |
m/min |
9 |
Roller groups |
13 |
groups |
10 |
Roller material |
45# forged steel, polished and surface coated with Chrome |
|
11 |
Main shaft material |
Material of rollers:45# steel,roller surfaces polishing, hard plating |
|
12 |
Main axis diameter |
75 |
mm |
13 |
Main motor power |
4 |
KW |
14 |
Hydraulic cutting power |
4 |
KW |
16 |
Power supply |
depend on customer's requirement |
|
17 |
Cutter material |
Cr12Mov |
|
18 |
Cutting method |
hydraulic cutting, automatically cut to length after roll forming |
|
19 |
Color of the machine |
Depends on your needs |
|
20 |
Container needed |
1x40 |
GP |
4. Machine Pictures

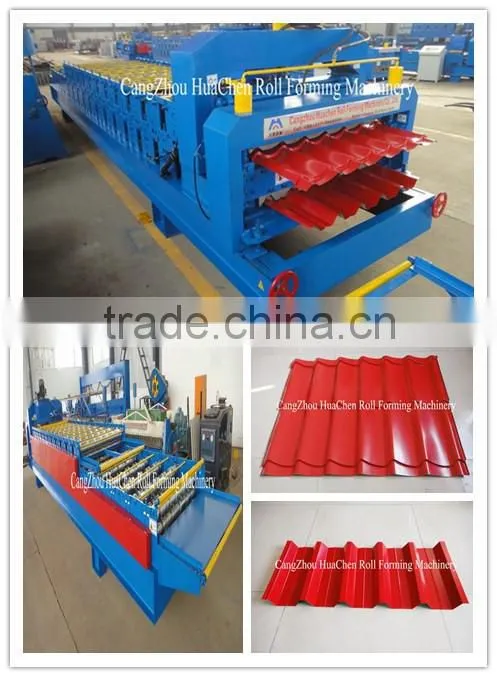

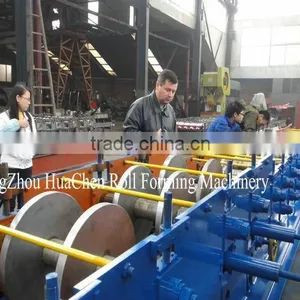

Main Machine&Roller

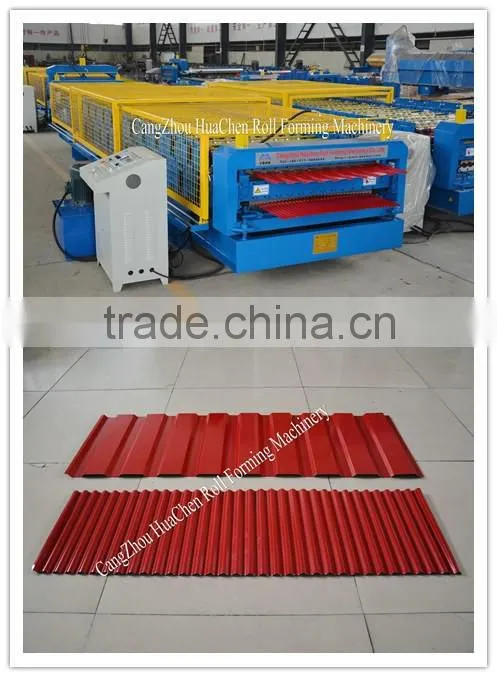

Hydraulic Cutter&Product Sample
We have many years export experience and we know well about the requirement from different regions’ customers . we have outstanding export team to listen to your request , the designed team will show you the best proposal according to your request , and we also have experts , skilled workers offer precision work.
5.Roll Forming Machine Components:
Uncoiler, Coil sheet guiding device, Main roll forming system,Post cutting device,Hydraulic station, PLC control system and Support table.

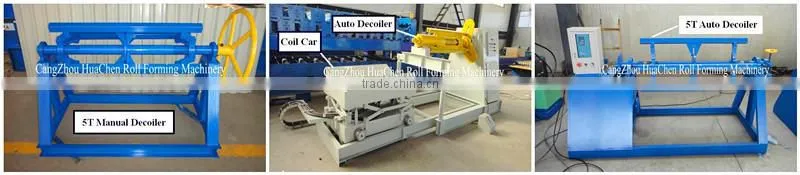

Decoiler

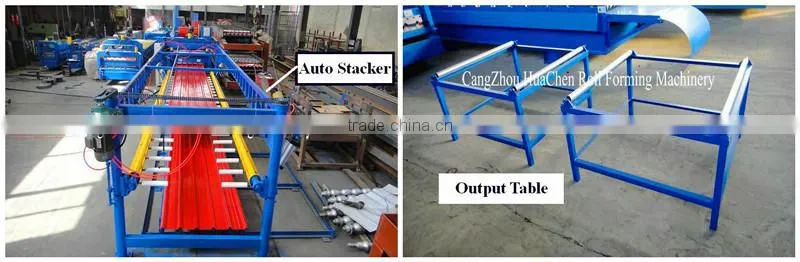

Auto stacker&Output table

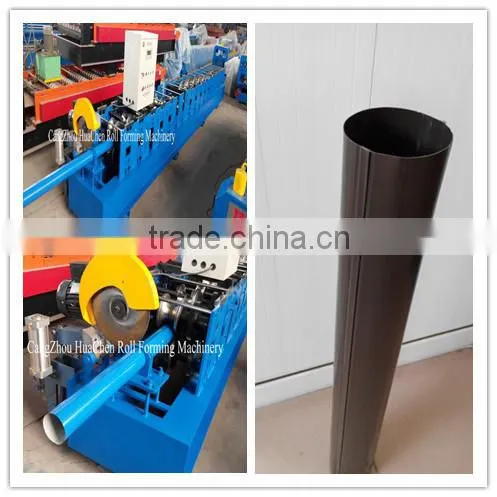

If you want more profiles, please click the photo links below.
Certification: ISO9001-2008 quality system certificate , CE security certificate , BV certification and SGS certification

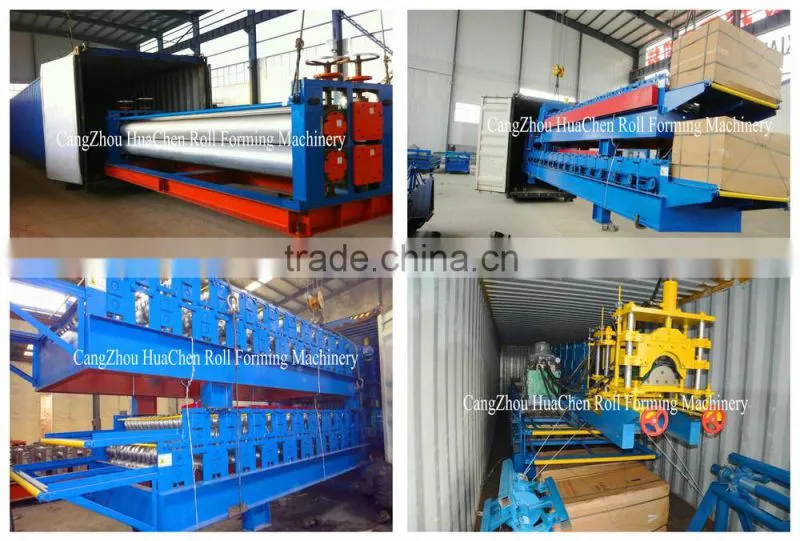

Machine Loading
Main machine is nude , the computer control box is packed by carton box.All machines needs one 40 feet container to hold. Within 30 days after receiving deposit.
