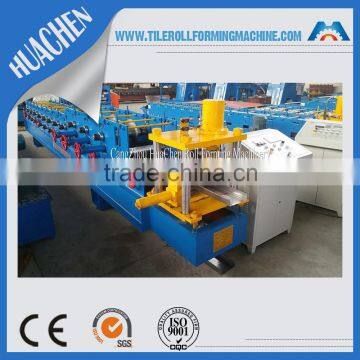

Automatic C Roll Forming Machine For C Steel Purlin
Metal Stud Forming Machine, C Profile Roll Forming Manufacture
Application
C purline making machine formed by C Purlin Machine , advantages of well compressive strength and flatness;automatioc measureing, cutting and punching; high-level of automation and conveniently installation.It can be used in the main body stress structure of the large and mediumsize enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load bearing load and wall surface support of the arbour.
Automatic C Roll Forming Machine For C Steel Purlin
Manual Uncoiler- C Purlin Making Machine - Computer Control System - Hydraulic Control System - Cutting
Automatic C Roll Forming Machine For C Steel Purlin
No. | main parameter of C Purlin Making Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 175-465mm |
3 | Roller | 13 rows |
4 | Dimensions | 9700*1750*1650mm |
5 | Power | 11+5.5kw |
6 | Thickness of the plate | 1.5-2.5mm |
7 | Productivity | 8-10m/min |
8 | Material of the cutting blade | Cr12 |
9 | Diameter of the roller | Φ80mm |
10 | Weight | About 7.2T |
11 | Voltage | 380V 50Hz 3phases |
14 | Control system | PLC control |
Automatic C Roll Forming Machine For C Steel Purlin
