Low Cost Standalone Rfid Access Control Js168 With Time Attendance

Name: Low Cost Standalone Rfid Access Control Js168 With Time Attendance
Brand: PROYU
SKU: 107985569

US$ 30 - 50 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

PROYU

Model Number:

PY-JS168

Shenzhen Proyu Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name PROYU

Model Number PY-JS168

Specifications

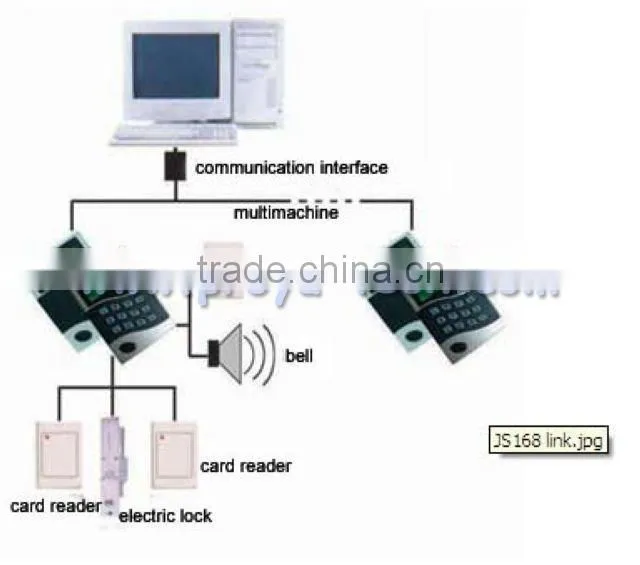

It is widely used in door controller, time recorder
real-time patrol and parking lot etc.

Low cost standalone rfid access control js168 with time attendance

Features:

1. JS168-MM “Elfin” is integrated with time recorder, PWD door controller, single-door controller, reader with double door controller.

2. Advanced door controller functions: 32 time periods /64 time sets /16 AppSets /8 holiday types / validity period of card

3. When the hardware is off-line, there are two layers of A.P.B protection

4. Only PIN, only Card and Card & PIN are available; remote control of any door point, various alarm events functions.

Main technical parameter :

Data saving	10 years (after power failure)
Record capacity	25000 pieces (customizable)
Card capacity	2500 pieces (customizable)
Card type	EM card ( MIFARE® card is optional)
External reader head Standard	W26, W34 and W44 formats
Induction distance	10-20cm(EM card), 5-10cm( MIFARE® card)
Reading speed	0.2 second
Communication mode	RS485 (TCP/IP is optional)
Networking capacity	255 sets of RS485 mode TCP/IP mode is limited by IP
Working voltage	8-25VDC
Power consumption	<1W
LCD display	128*64DOTS
Dimension	L120W88H18mm
Weight	160g
