Types of Refractory Modules From China Supplier

Types of Refractory Modules From China Supplier thumbnail-1
Types of Refractory Modules From China Supplier photo-1
Negotiable MOQ: 1 Pallet (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Cera Tec / Morgan
Model Number:
CT-1430
Contact Supplier Request Quote Chat Now
Jiangsu Cera Thermal Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port/ Shandong port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Cera Tec / Morgan
Model Number CT-1430
Application thermal insulation
Grade HZ (High Zirconium)
Dimensions 300x300x300mm
Working Temperature 1430 ℃
Fiber Diameter 3~4.5μm
Thermal Conductivity 0.12
Shrinkage (1800℉, 3h) -3

Specifications

1. The resilient blanket is resistant to mechanical damage
2. Low thermal conductivity give high thermal efficiency

Ceramic Fiber Module





Description

  1. CT ceramic fibre module adopt high quality ceramic fibre blanket, which is made up to compression module after folding, compression, packing
  2. module can choose kinds combination of anchor and furnace body, installation method is so simple that quicken the speed of furnace lining construction largely
  3. After installation, the bandaging are cut and the modules and so to form an integrated insulating lining.
  4. The anchor system in remote from he module hot face, maintaining the metal components at a relatively low temperature



Features

  1. The anchorage on the back allows for both in-line and parquet installation.
  2. The decompression of the blanket folds gives tightly sealed intermodular joints with both configurations
  3. The resilient blanket is resistant to mechanical damage
  4. Low thermal conductivity give high thermal efficiency
  5. Total resistance to thermal shock
  6. No drying or curing required – so available for production operation immediately after installation
  7. The anchor is remote form the module hot face



Typical Applications

  1. Heat treatment: annealing furnace, tempering furnace, soaking pit, etc
  2. Ceramic: whiteware, sanitary ware and brick firing tunnel and intermitted kiln.
  3. Iron and Steel: Transfer ladle lids, soaking pit covers, reheating furnace, continuous annealing furnaces, lift-off furnaces
  4. Petrochemical: ethylene pyrolysis furnace,reformers,atmosphere / reduced pressure furnace,ductwork pyrolysis heaters
  5. Aluminium: Soaking pits and covers, bale out furnaces, homogenizing and ductwork
  6. Utilities: waste heat recovery units, combustion chambers and boiler ductwork



Date sheet

Type

CT-1000

CT-1260

CT-1360

CT-1430

CT-1500

CT-1600

Classification temperature oC

1100

1260

1360

1430

1500

1600

Density(kg/m3)Density

170,190,210

170,190,200

Remark



The values given herein are typical average values obtained in accordance with accepted test methods and are subject to normal manufacturing variations. They are supplied as a technical service and are subject to change without notice. Therefore, the data contained herein should not be used for specification purposes.

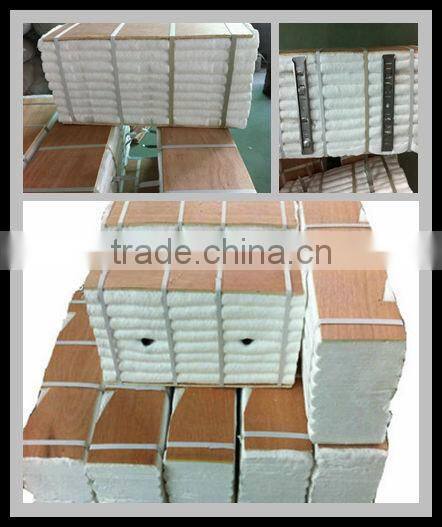

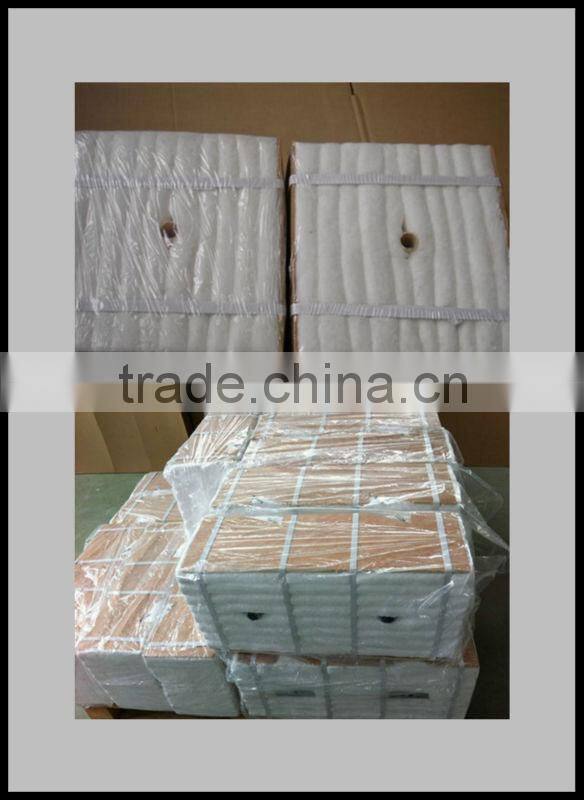

Product pictures



types of refractory modules from China supplier



types of refractory modules from China supplier



types of refractory modules from China supplier





Office in Nanjing





types of refractory modules from China supplier





Factories in China



types of refractory modules from China supplier



types of refractory modules from China supplier

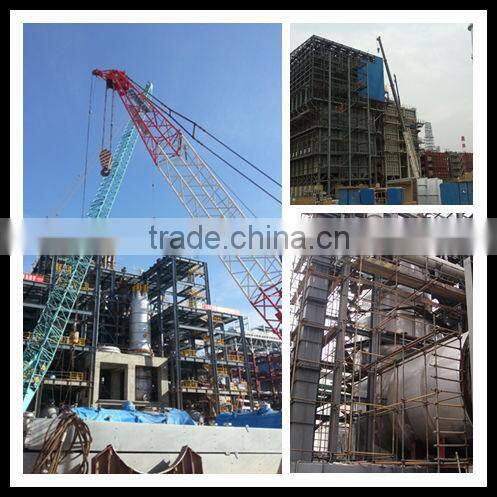

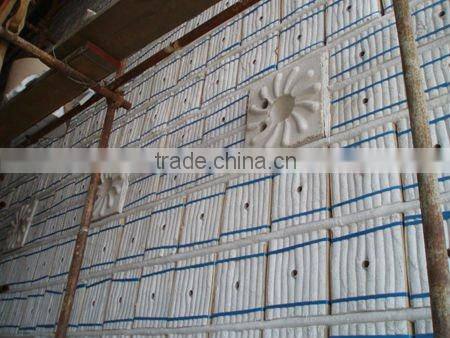

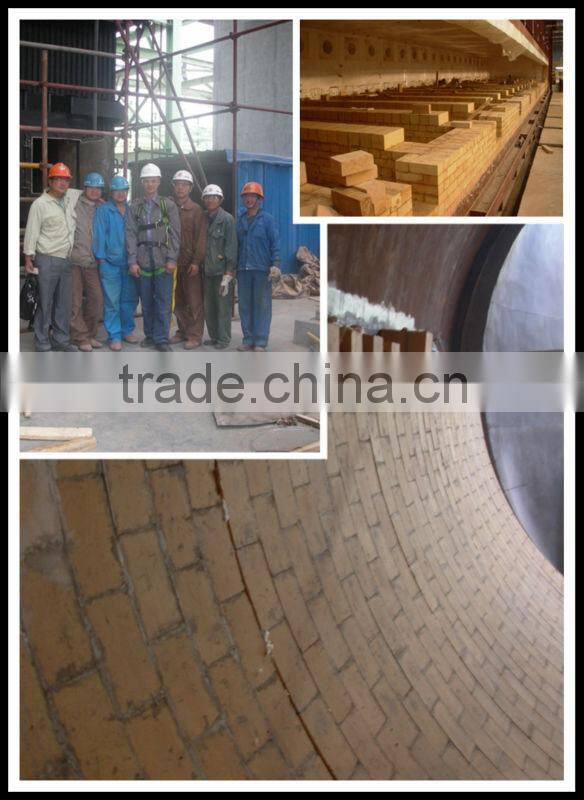

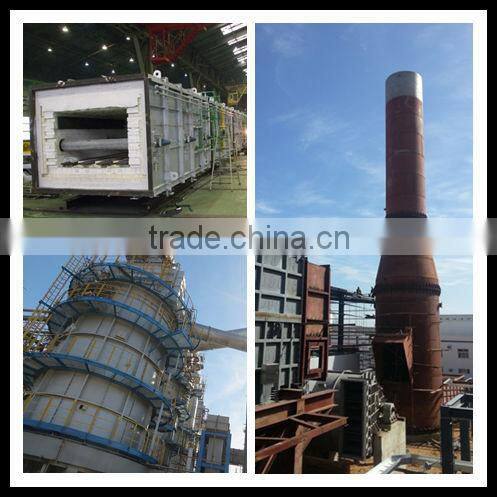

Construction projects



types of refractory modules from China supplier



types of refractory modules from China supplier



types of refractory modules from China supplier
