Vacuum System A |
||||
|

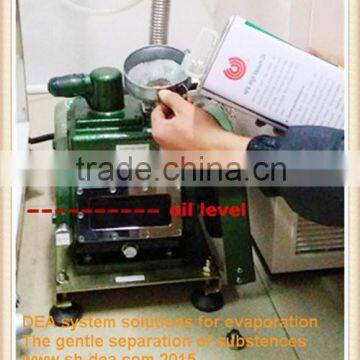

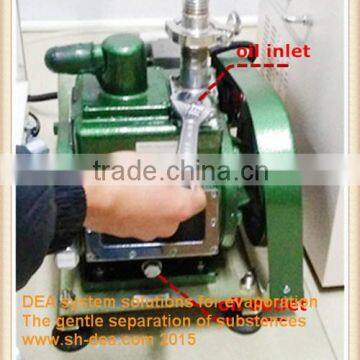

Vacuum pump
|
Set |
1 |
No-load ultimate vacuum pressure 0.5mbar Pump:Double vane vacuum pump Exhaust rate:4L/S Motor power:0.5KW The vacuum system B is not suitable for solvent distillation. |
|
|
Cold Trap
|
|
1 |
Stainless steel304 Freezing medium: Solid carbon dioxide /Liquid nitrogen |
|
|
Micro adjustable vacuum valve
|
|
1 |
Material:Stainless steel 304 Adjustment range:105~1.3*10-2Pa, min 1.3*10-2Pa.L/S,max4000Pa.L/S |
|
|

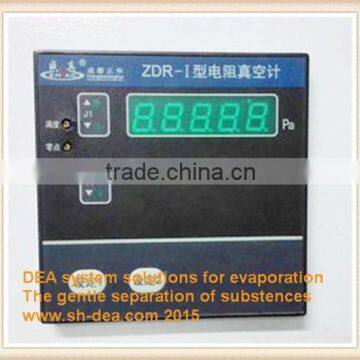

Pirani vacuum gauge
|
|
1 |
Type: ZDR-1, Display range:1×10 5 ~1×10 -1 Pa, Measuring range:5×10 3 ~1×10 -1 Pa,Power:90-260V/50Hz, |
|
|
Pirani gauge tube
|
|
2 |
Type: ZJ-52T |
|
Size & weight |
|
|
500*500*700mm(L*W*H) 50KG |
|
Power & voltage |
|
|
Power:0.55KW 220V-50/60Hz single phase OR three phase You need a transformer according to your local voltage. |
|
Shanghai Dea chemical equipment Co.,Ltd
——We devote to design and develop the equipment of chemical separation and abstraction.
——We came from East China University of Science and Technology, which we long-term cooperated with later. And now, we serve for many famous universities, such as Tsinghua University , Sun Yat-sen University , etc.
——We provide equipment of distillation and extraction for the technicians in the area of chemical , medicine and food industry.
——We own senior engineers who have rich experience in chemical engineering.
——Our products can be used in lab-scale, pilot-scale experiments and small-scale production.
——The experimental results are more authentic by using our products thanks to the continuous operation during the course of the experiments or pilot-scale experiments.
——We repaire imputed equipments out-of-warranty for UIC,POPE,BUCHI in the past few years, which made us accumulating rich experience.
We not only produce distillation equipment,
but also study distillation process,improve the distillation equipment.
Our equipment has been assembled and tested prior to shipping finished, so it is a whole package, which can be used directly after unpacked. Please measure the size of the door in order to handle the equipment to the right position. For self-assembly, please inform in advance.
