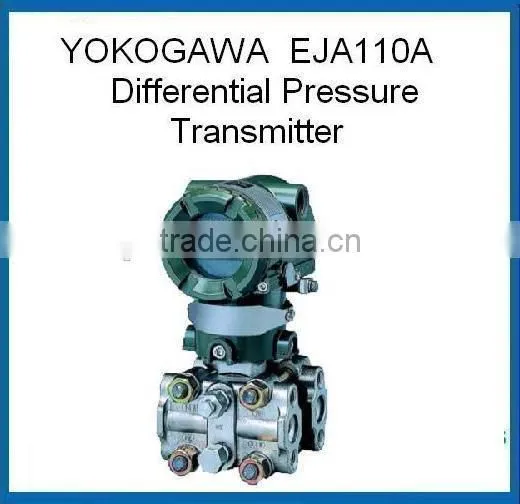

Yokogawa Differential Pressure Transmitter EJA110A
The EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols.
The high performance gauge pressure transmitter model EJA430A can be used to measure liquid, gas, or steam pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured gauge pressure.
2.Features
Excellent performance and stability
The EJA series uses a silicon resonant sensor formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.
Compact and light-weight design
Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.
Fieldbus communication capability
Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.
3.EJA series offers two types of fieldbus models, FOUNDATION™ fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between Yokogawa and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.
Specifications:
|
Yokogawa EJA110A Differential Pressure Transmitter |
||||
M Capsule |
H Capsule |
||||
Range |
-100 to 100 kPa |
-500 to 500 kPa |
|||
Span |
2.5 to 100 kPa |
25 to 500 kPa |
|||
Accuracy |
±0.2% |
±0.2% |
|||
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
||||
Certificates |
FM, CENELEC ATEX, CSA, TIIS, IECEx |
||||
Output |
4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication |
||||
Supply voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) |
||||
Ambient temperature |
-40 to 60 deg C (-40 to 140 deg F) (general use type) |
||||
Process temperature |
-50 to 300 deg C (-58 to 572 deg F) |
||||
Maximum working pressure |
Flange rating pressure |
||||
Mounting |
Transmitter: 2-inch pipe mounting |
||||
Process flange size |
Flush type: 3-inch(80mm), 2-inch(50mm)
|
||||
Diaphragm material |
SUS316L, Hastelloy C-276, Tantalum, Titanium |
||||
Process flange material |
S25C, SUS304, SUS316 |
||||
Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel (optional) |
||||
We deal with following Yokogawa products,
Yokogawa Pressure Transmitters,
EJA110ADifferential Pressure Transmitter
EJA115 Low Flow Transmitter 850-1250
EJA118W, EJA118Nand EJA118Y
Diaphragm Sealed DifferentialPressure Transmitters
EJA120ADifferential Pressure Transmitter
EJA130ADifferential Pressure Transmitter
EJA210A and EJA220AFlange Mounted Differential PressureTransmitters
EJA310AAbsolute Pressure Transmitter
EJA430AGauge Pressure Transmitter
EJA438W and EJA438NDiaphragm Sealed GaugePressure Transmitters
EJA440AHigh GaugePressure Transmitter
EJA510A Absolute PressureTransmitter
EJA530AGauge PressureTransmitter
Yokogawa Temperature Transmitters,
YTA50, YTA70,YTA110,YTA310/320
YokogawaMagnetic Flow Meter
ADMAG CA
ADMAG AXF
ADMAG AXR
ADMAG AXW
YokogawaVortex Flowmeter
digitalYEWFLO (DY)
digitalYEWFLO (DY-RB)
digitalYEWFLO Multivariable(DY-MV)
digitalYEWFLO (DY-HTLT)
digitalYEWFLO (DY-FF)
Variable Area Flow Meter-Rotameters
RAMC
RAKD
RAGN
RAGK Mini Rotameter
RAGK/RAGL
RAQN
Yokogawa BT200 Brain Terminal
We are a professional manufacturer and exporter that engaged in the development, sales and customized service of
Pressure sensors,
Pressure transmitters,
Temperature sensors,
Temperature transmitters,
Flow meters,
level measuring instruments,
Pressure gauges etc.
They are widely used in aerospace, automobile, chemical, metallurgy, petroleum, paper-making,drugs manufacturing, electric power, food, medicine, railroad and water conservation industry etc.
Any inquiry, contact us freely.
