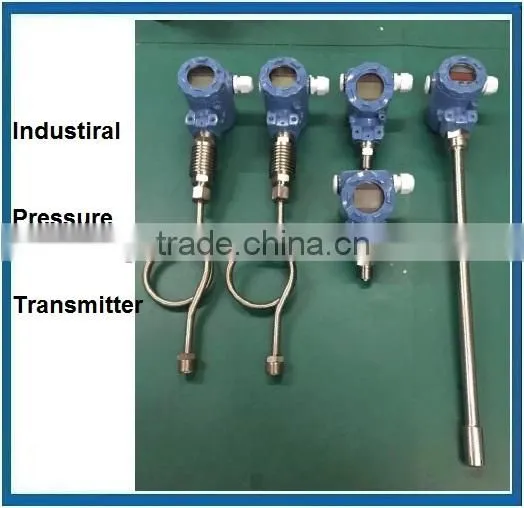

QW3151DG 4-20mA Explosion proof Direct Mounted Smart Pressure Transmitter
Direct mount pressure transmitter QW3151DGP select high-precision, high stability and high reliability diffused silicon pressure sensing element and imported high-quality integrated circuits, which is a high precision, reliable, good stability, long service life industrial pressure
transmitter for measuring the liquid level of the liquid or gas pressure, and a variety of liquid. Live remote pressure and level measurement instrumentation and converted into a standard electrical signal pressure or level. QW3151DGP pressure transmitter, because of its excellent performance, instead of imported high-grade pressure transmitter for high measurement precision measurement and control requirements of the
occasion, compact structure, light weight, three buttons can be used on-site free configuration.
Features Three buttons can be used on-site free configuration The transmitter site data recovery4-20mA with HART protocol digital signal Wide measurement range:-0.1MPa-0, 0-(10KPa-60MPa)Shell protection level: IP65, which is suitable for outdoor installationUnique design water hammer
impact propertiesHigh precision, high stability, high reliabilityGood anti-icing performance, according to special requirement
Specifications:
Accuracy |
0.25%F•S. 0.5%F.S |
Measurement range |
-0.1MPa~0; 0~(10KPa~60MPa) |
Linearity |
>0.2%F•S |
Temperature drift |
<±0.025%F•S/°C(0-50°C) |
Long-term stability |
≤0.02%F•S/year |
Response time |
≤10mS |
Power supply |
24VDC |
(or 12VDC-36VDC arbitrary constant voltage power supply) | |
Output |
4~20mA(O~10mA 1~5V O~5V 0~1OV) |
Load resistance |
0~600Ω(Rz=(V-12)/0.02 V is supply voltage) |
when output is 0~10mA, load resistance is 0~1.2kΩ | |
Pressure overload limit |
the max pressure rated 1.5 times |
Ambient temperature |
-20~ +85°C |
Measured medium temperature |
20~ +85°C(>85°C can use radiating tube) |
Recommend storage temperature |
-20~ +125°C |
Sensor interface |
M20×1.5,1/2NPT or customized |
(pressure interface) | |
Electrical interface |
M20×1.5 |
Installation site |
unlimited |
Shell protection level |
IP65 |
Sensor interface material |
1Cr18Ni9Ti |
Sensor isolated diaphragm material |
316LSS |
Shell material |
Al. |
Weight |
850 g |
Power |
< 0.5 W |
We are a professional high tech enterprise that engaged in the development, sales and customized service of
Pressure sensors
Pressure transmitters,
Temperature sensors
Temperature transmitters,
Flow meters,
level measuring instruments,
Calibration instruments
Pressure gauges etc.
They are widely used inaerospace, automobile petroleum, chemical, metallurgy, Paper-making,
drugs manufacturing, electric power, food, medicine, railroad and water conservation industries etc.
Any inquiry, contact us freely.
