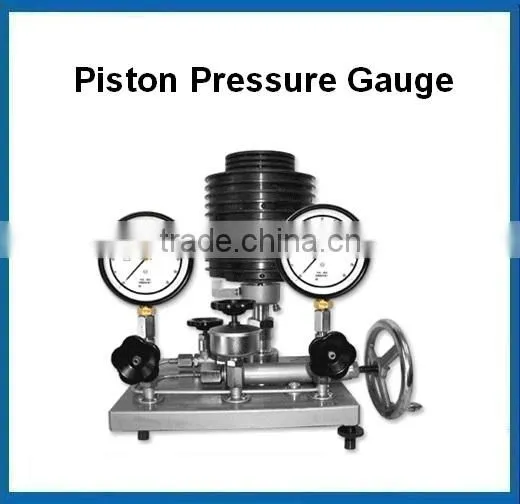

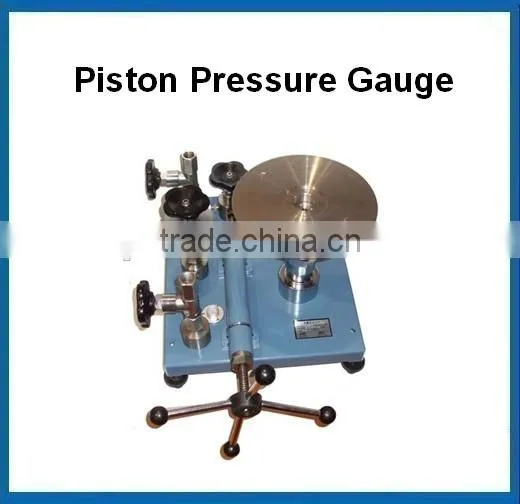

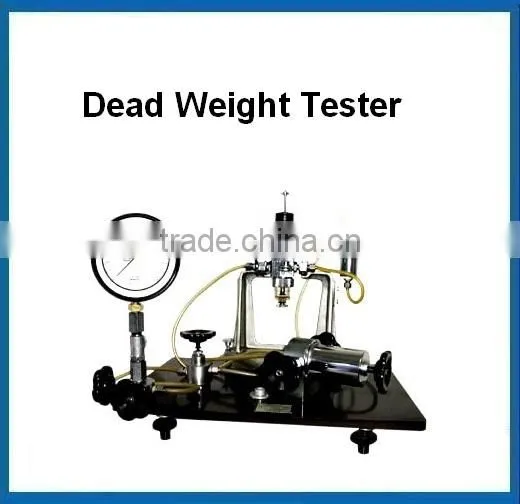

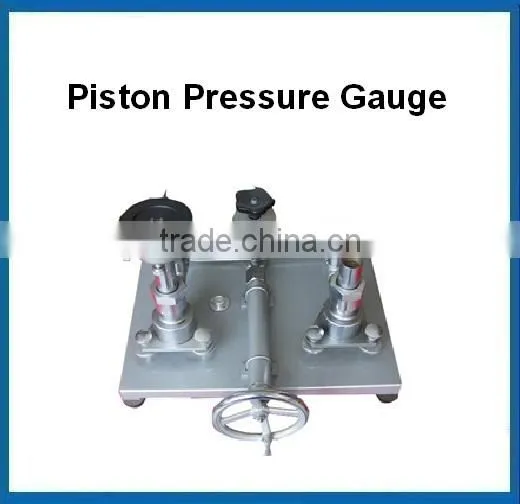

YS-6 YS-60 YS-250 YS-600 Piston Pressure Gauge
YS-6 YS-60 YS-250 YS-600 Piston Pressure Gauge are mainly used as a pressure reference for measuring room, laboratory, and production or science labs, piston gauge is directly applied to the monitoring of high-reliability monitoring aspects of the other instruments of the local vote.
Specifications :
Accuracy : 0.02
| Data | Unit | Pressure range | ||||
| 0.6MPa | 6MPa | 25MPa | 60MPa | |||
| Upper limit | MPa | 0.6 | 6 | 25 | 60 | |
| Down limit | MPa | 0,04 | 0.1 | 0.5 | 1 | |
| Piston Nominal Area | m² | 0.0001 | 0.00005 | 0.00002 | 0.00001 | |
| Carrier and Piston | Nomina1 Maas | kg | 0.4 | 0.5 | 1 | 1 |
| Pressure Developed | MPa | 0.04 | 0.1 | 0.5 | 1 | |
| Weights | Nominal Mass | Kg | 0,1; 0.5 | 0.5;2.5 | 1;5 | 1;5 |
| Pressure Developed | MPa | 0.01; 0.05 | 0.1;0.5 | 0.5;2.5 | 1;5 | |
| Quantity | pcs | 6; 10 | 4;11 | 4;9 | 4;11 | |
| 2 sets of weights are nominal quality | ||||||
| Weight | Kg | 41 | 95 | 135 | 155 | |
| Working Fluid | The 25MPa below 20 degrees Celsius transformer oil movement viscosity of 9-12 cSt | |||||
| The acid value of not greater than 0.05 mg KOH/g | ||||||
| The 60MPa medicinal castor oil 20 degrees Celsius kinematic viscosity of 900-1100 centistokes | ||||||
| The acid value of not greater than 0.05 mg KOH/g | ||||||
selection code
| model | pressure range (MPa) |
| YS-6 | 0.04-0.6 |
| YS-60 | 0.1-6 |
| YS-250 | 0.5-25 |
| YS-600 | 1-60 |
Other models
pressure sensors,
pressure transmitters,
temperature sensors,
temperature transmitters,
flow meters,
Liquid level instruments,
Calibration equipments,
Piston pressure gauges etc.
They are widely used in following industries:aerospace, automobilepetroleum, chemical,metallurgy,
Paper-making, drugs manufacturing, electricpower,food, medicine, railroad and water conservationetc.
Any inquiry, contact us freely.
