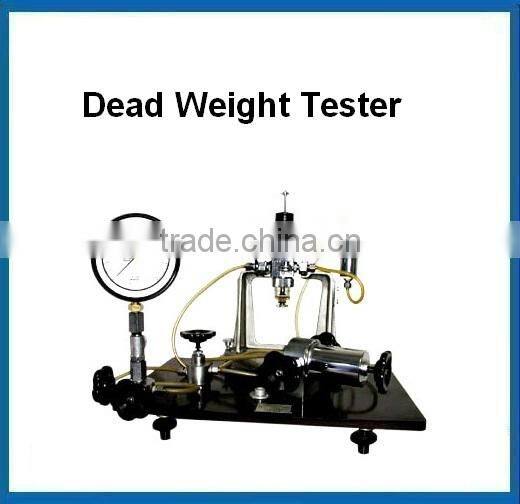

YS-6 YS-60 YS-250 YS-600 Budenberg dead weight tester for pressure calibration

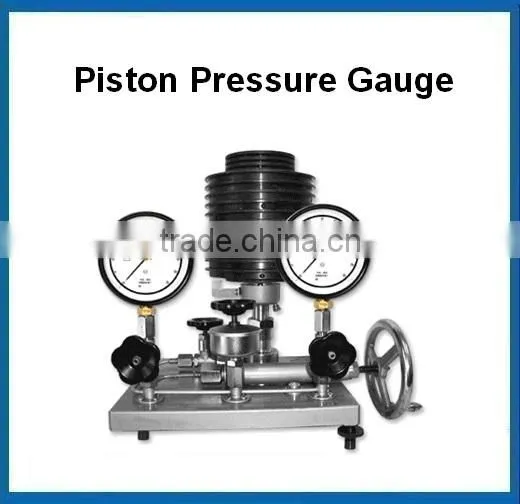

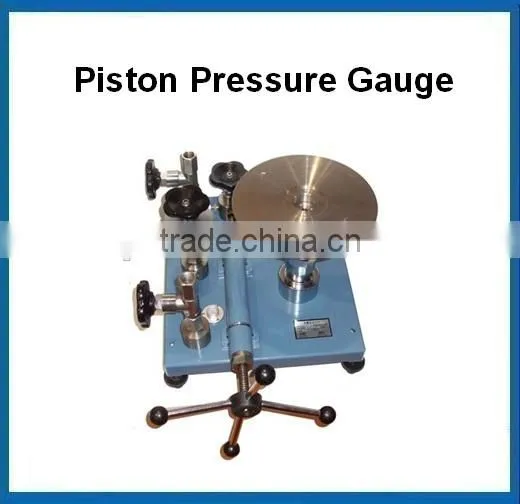

YS-6 YS-60 YS-250 YS-600 Dead weight tester are mainly used as a pressure reference for measuring room, laboratory, and production or science labs, piston gauge is directly applied to the monitoring of high-reliability monitoring aspects of the other instruments of the local vote.
Specifications :
Accuracy : 0.02 0.05
| Data | Unit | Pressure range | ||||
| 0.6MPa | 6MPa | 25MPa | 60MPa | |||
| Upper limit | MPa | 0.6 | 6 | 25 | 60 | |
| Down limit | MPa | 0,04 | 0.1 | 0.5 | 1 | |
| Piston Nominal Area | m² | 0.0001 | 0.00005 | 0.00002 | 0.00001 | |
| Carrier and Piston | Nomina1 Maas | kg | 0.4 | 0.5 | 1 | 1 |
| Pressure Developed | MPa | 0.04 | 0.1 | 0.5 | 1 | |
| Weights | Nominal Mass | Kg | 0,1; 0.5 | 0.5;2.5 | 1;5 | 1;5 |
| Pressure Developed | MPa | 0.01; 0.05 | 0.1;0.5 | 0.5;2.5 | 1;5 | |
| Quantity | pcs | 6; 10 | 4;11 | 4;9 | 4;11 | |
| 2 sets of weights are nominal quality | ||||||
| Weight | Kg | 41 | 95 | 135 | 155 | |
| Working Fluid | The 25MPa below 20 degrees Celsius transformer oil movement viscosity of 9-12 cSt | |||||
| The acid value of not greater than 0.05 mg KOH/g | ||||||
| The 60MPa medicinal castor oil 20 degrees Celsius kinematic viscosity of 900-1100 centistokes | ||||||
| The acid value of not greater than 0.05 mg KOH/g | ||||||
selection code
| model | pressure range (MPa) |
| YS-6 | 0.04-0.6 |
| YS-60 | 0.1-6 |
| YS-250 | 0.5-25 |
| YS-600 | 1-60 |
Other models
pressure sensors,
pressure transmitters,
temperature sensors,
temperature transmitters,
flow meters,
Liquid level instruments,
Calibration equipments,
Dead weight testers,
digital pressure gauges etc.
They are widely used in following industries:aerospace, automobilepetroleum, chemical,metallurgy,
Paper-making, drugs manufacturing, electricpower,food, medicine, railroad and water conservationetc.
