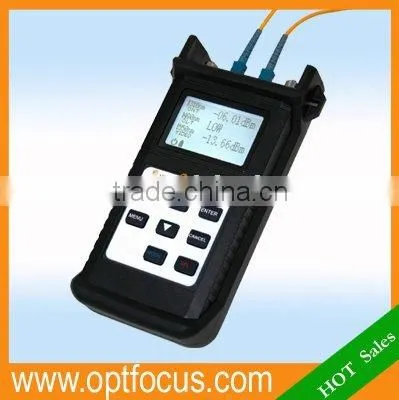

PON Fiber Optic Power Meter Providing simultaneous measurement at all three wavelengths on the fiber (1490nm, 1550nm,1310nm ),OFS-3212B PON Optical Power Meter
Is an upgraded version of OFS-3212B PON power meter, it aims at the FTTx application and maintenance which not only can be used to test and estimate the signals of the voice, data and video at the same time, but also can be used to test the continues wave light power. The calibrated wavelengths for CW light power measurements includes 850, 1300,1310,1490,1550,1625nm. It is an essential and ideal tester for the construction and maintenance of the PON projects.
Features
l Providing simultaneous measurement at all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
l Used in Burst mode measurement of 1310nm upstream
l CW light power measurement is available with wavelengths of 850,1300,1310,1490,1550,1625nm.
l VFL Function for quick and efficient Visual Inspection
l USB communication port enables data transfer to a PC
l 1000 measurement items can be saved in OFS-3212B PON power meter or computer for data review.
l OFS-3212B PON power meter offers up to 10 different threshold sets in total; Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
l User self-calibration can be performed and “Factory Default” mode can be retrieved in computer through the software.
l PON SC standard connector, easy to test, other type connector port can be required on customer requests.
l Backlight LCD display supports night operation.
l 10 minutes Auto-off function can be activated or deactivated with keypad operation.
Technical Specification
PON module
Model |
OFS-3212B |
1310 upstream measurement | |
Pass Zone(nm) |
1260~1360 |
Isolation@1490/1550(dB) |
>40 |
Measurement Range(dBm) |
-40~+10 |
1490 downstream measurement | |
Pass Zone(nm) |
1470~1505 |
Isolation @ 1550nm(dB) |
>30 |
Isolation@ 1310nm(dB) |
>40 |
Measurement Range(dBm) |
-40~+12 |
1550 downstream measurement | |
Pass Zone(nm) |
1535~1570 |
Isolation at 1490nm(dB) |
>40 |
Isolation at 1310nm(dB) |
>40 |
Measurement Range(dBm) |
-40~+25 |
Measurement Accuracy | |
Connatural uncertainty(dB) |
±0.5 |
Linearity(dB) |
±0.1 |
Passing through insertion Loss(dB) |
<1.5 |
General Information | |
Detector Type |
InGaAs |
Optical Connector |
FC/SC/ST Interchangeable |
Fiber Type |
9/125um |
Display |
LCD:128*64 |
Measurement Unit |
dB/dBm/xW |
Resolution (dB) |
0.01 |
Operation Voltage(V) |
DC 3.3~5.5 |
Power Supply |
3 AA1.5V battery |
Continuously Operation time (h) |
PON Power Meter Mode:90h Normal Optical Power Meter Mode 100h VFL Mode: 50h |
Operation Temperature(°C) |
-10~60 |
Storage temperature(°C) |
-25~70 |
Weight(kg) |
500g |
Note: The operation time of the battery are all for the instrument that do not turn on backlight, if the backlight turn on the operation time will be shorted.
Normal Optical Power Meter Module:
Measurement Accuracy | |
Connatural uncertainty(dB) |
±0.25 |
Linearity(dB) |
±0.1 |
Measurement Range(dBm) |
-70~+6 or -50~+26 |
General Information | |
Measurement Unit |
dB/dBm |
Resolution (dB) |
0.01 |
Calibration Wavelength(nm) |
850,1300,1310,1490,1550,1625 |
Detector Type |
InGaAs |
Optical Connector |
FC/SC/ST Interchangeable/2.5 universal adapter |
Fiber Type |
9/125um |
VFL Module:
Output Power(mW) |
1mw |
Wavelength(nm) |
650 |
Optical Connector |
FC/2.5 universal connector |
