Specifications
Fiber optic multi meterCalibrated wavelengths(nm):850, 1300,1310,1490,1550,1625
Fiber optic multi me

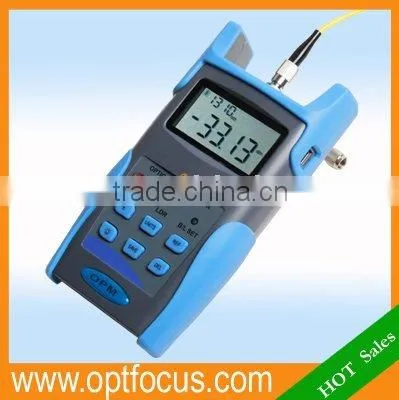

OFS-6216 Handheld Fiber Optical Power Meter is OPTFOCUS INTERNATIONAL CO.,LTD newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with OFS-6116 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the OFS-6216 has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the OFS-6216 features good appearance, good touch feeling and considerate humanity design.
Features
l Wave ID—Automatic wavelength identification and switching (when used with OFS-6116 handheld light source)
l Frequency ID/Tone detection---Automatic frequency identification
l Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
l Data storage function, up to 1000 test records
l USB communication port for saved testing records download
l Reference power level can be set up and stored
l User self calibration function
l Auto-off function can be activated or deactivated.
l AA alkaline and AC adapter for power supply
l Low battery indication
Fiber optic multi meter Specifications
Model |
OFS-6216A |
OFS-6216C |
Calibrated(nm) |
850, 1300,1310,1490,1550,1625 |
|
Detector type |
InGaAs |
|
Measurement Range(dBm) |
-70~+6 |
-50~+26 |
Uncertainty (dB) |
±0.15(3.5%) |
|
linearity (dB) |
±0.02 |
|
Display resolution(dB) |
0.01 |
|
Frequency ID(Hz) |
270,330,1K,2K |
|
Wave ID(nm) |
1310,1490,1550,1625 |
|
Date storage capacity |
1000 |
|
Communication Port |
USB |
|
Optical Connector type |
FC,SC,ST interchangeable |
|
Alkaline battery |
3*AA,1.5V |
|
Power Supply Adaptor(V) |
8.4 |
|
Battery Operating time (h) |
200 |
|
Operation Temperature(°C) |
-10~+60 |
|
Storage Temperature(°C) |
-25~+70 |
|
Outline size(mm)/weight |
180*90*45(250g) |
|
Standard Packages
MODEL |
INCLUDES |
All OFS-6216 Models |
OFS-6216 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case. |
