Help CenterHandheld Adjustable Fiber Optic Light Source
Related Products
Specifications
Tone generation, 270HZ,330HZ,1KHZ,2KHZOperating wavelength(nm):1310/1550;1310/1490/1550/1625(others specify on requests)

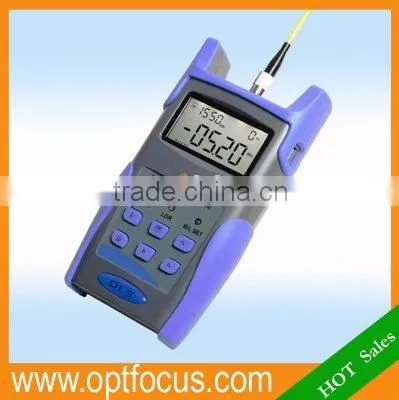

OFS-6116 Handheld Adjustable Light Source
is OPTFOCUS INTERNATIONAL CO.,LTD newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with OFS-6216 handheld optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers. The OFS-6116 provides 1 to 4 wavelengths and output power can be adjustable on customer requests. Also the OFS-6116 features good appearance, good touch feeling and considerate humanity design.
Features
l Wave ID information can be transmitted when used with JW3216 Optical Power Meter.
l Tone generation, 270HZ,330HZ,1KHZ,2KHZ
l Output power can be adjustable
l Output power value is shown on LCD display
l Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
l AA alkaline and AC adapter for power supply
l Low battery indication
Specifications
Model |
OFS-6116 |
Operating wavelength(nm) |
1310/1550;1310/1490/1550/1625(others specify on requests) |
Applicable fiber |
SM,MM |
Laser type |
FP-LD(others specify on requests) |
Output Power(dBm) |
-7(can be adjustable) |
Adjustable step size(dBm) |
<0.5 |
Stability(dB,30min,20°C) |
0.15 |
Modulation(Hz) |
CW, 270,330,1K,2K |
Fiber Port |
FC/PC |
Alkaline Battery |
3*AA,1.5V |
Power Supply Adaptor(V) |
8.4 |
Battery Operating time(h) |
45 |
Operation Temperature(°C) |
-10~+60 |
Storage Temperature(°C) |
-25~+70 |
Outline size(mm)/weight |
180*90*45(250g) |
Standard Package
