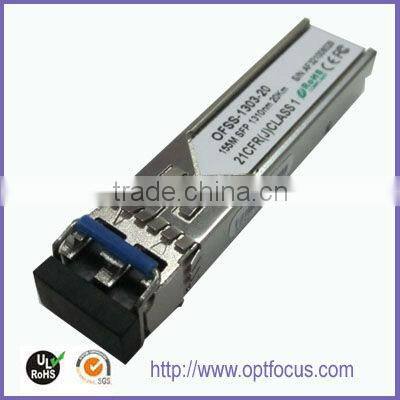

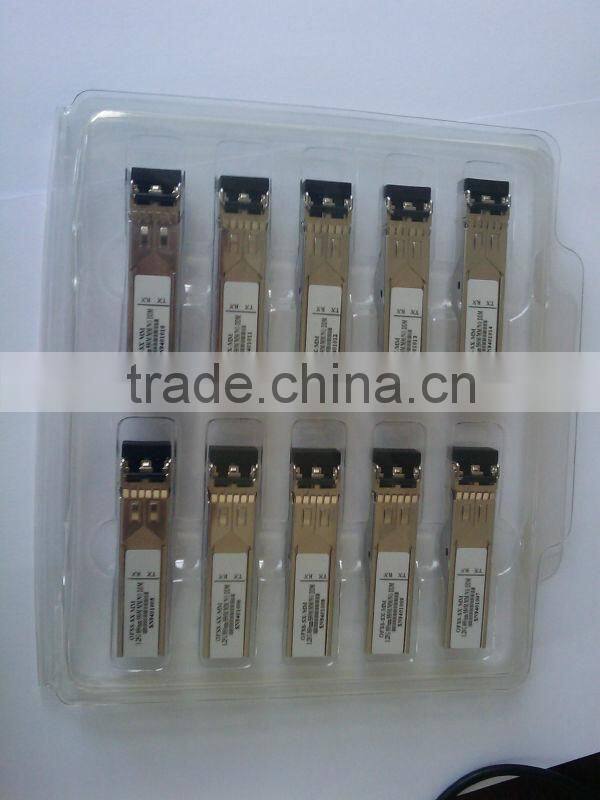

1.25Gbps 3km Single Fiber BIDI SFP Transceiver

Specifications

                    OPTFOCUS DWDM SFP Optical Transceiver

Description

 The SFP transceiver supports dual data-rate of 1250MGbps and from 10km to 20km transmission distance with SMF.
The transceiver consists of two sections: The transmitter section incorporates a FP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).
All modules satisfy class I laser safety requirements. The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault indicates that degradation of the laser. Loss of signal (LOS) output indicates the loss of an input optical signal of receiver.
The standard serial ID information compatible with SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial bus. For more information,please refer to SFP Multi-Source Agreement (MSA)

Performance specifications:
Absolute Maximum Ratings
Parameter Symbol Minimum Maximum Units
Storage Temperature Tst -40 +85 °C
Operating Temperature Top 0 +70 °C
Supply Voltage Vcc 0 +3.6 V
Input voltage Vin GND Vcc
Lead Soldering
Temperature & Time 240/10 C/s
Operation Environment

Parameter Symbol Minimum Maximum Units
Supply Voltage Vcc 3.15 3.45 V
Ambient
operating Temperature Top 0 +70°C
Operating Relative
Humidity - 5 95 %
