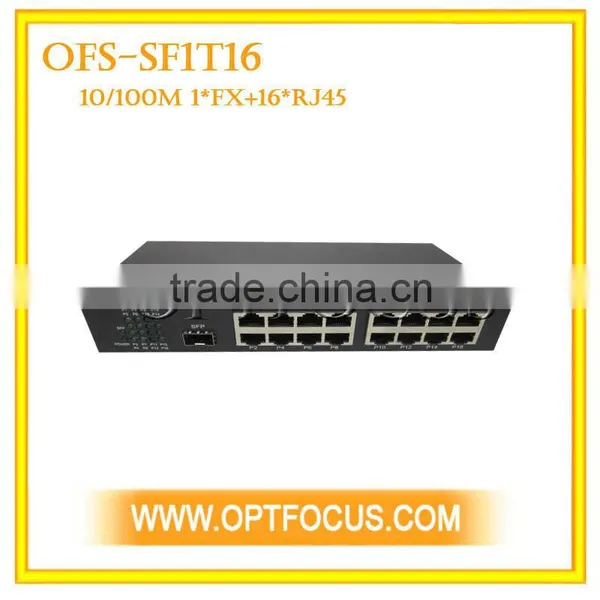

OFS-SF1T16 Series Ethernet Fiber Switch

Specifications

OFS-SF1T16 Series

The SFP port of OFS-SF1T16 can be joined by Corresponding Fiber with another Fiber Media Converter, Hubs, Switches, Routers, Servers or Fiber NIC etc. Ethernet fiber equipments. The SFP port is set to 100Mbps Full Duplex.

  Use corresponding cable to connect this switch port and the docking equipment port, Insert the AC/DC adapter to the power socket of the switch and AC power supply, The LED indicators front of the switch will blink in turn, it shows the switch is self-testing, when the self-testine is completed, the power LED indicator and other LED indicators will indicate the working condition of every ports as following description.

Main Features

       Complied with IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX and 100Base-FX fast Ethernet.

   16 10/100M auto-negotiable UTP ports, auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.

    UTP port supports MDI/MDI-X auto crossover

    MAC address table: 4K.

    MAC address support auto-learning and migration

   Support flow control.

   Support port base VLAN

   LED indicators can inspect the working condition of every port conveniently.

Technical Specification

   Operating standards:  IEEE802.3 10Base-T Ethernet

                     IEEE802.3u 100Base-TX and 100Base-FX Fast Ethernet

                     ANSI/IEEE STD 802.3 10/100M auto-negotiated

  Protocol: CSMA/CD

  Data Transmitting Rate: Ethernet: 10Mbps (Half Duplex)

20Mbps (Full Duplex)

  Fast Ethernet: 100Mbps (Half Duplex)

         200Mbps (Full Duplex)

   Cable: UTP or STP, CAT. 5 or CAT. 6, the max distance up to 100m

   Fiber: (multimode):  50/125, 62.5/125μm (the max distance up to 2km)

   Fiber (singlemode):  8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 20-120km)

  Connector: 16 RJ-45, 10/100Mbps auto-negotiable ports; one SFP ports

  Duplex choose: every RJ45 port N-WAY auto-choose Full/Half Duplex

  LED indicators: POWER, Px Link/Act,

  Flow control:

  Full Duplex: IEEE802.3x flow control;

  Half Duplex: bake pressure flow control

  MAC address table: 4K

  power supply: AC100 ~ 260V, 50Hz; DC5V 2A

  Power: 10W

  Environment temperature:0 ~ +50°C

  Storage temperature:::-25 ~ +70°C

  Humidity::5% ~ 90%

  Dimensions:110(L) × 210(W) × 44(H)mm
