Optical Fiber Switch

Specifications

Connector:
UTP: RJ-45,10/100Mbps;
Fiber: SC/FC,100Mbps (Full Duplex)

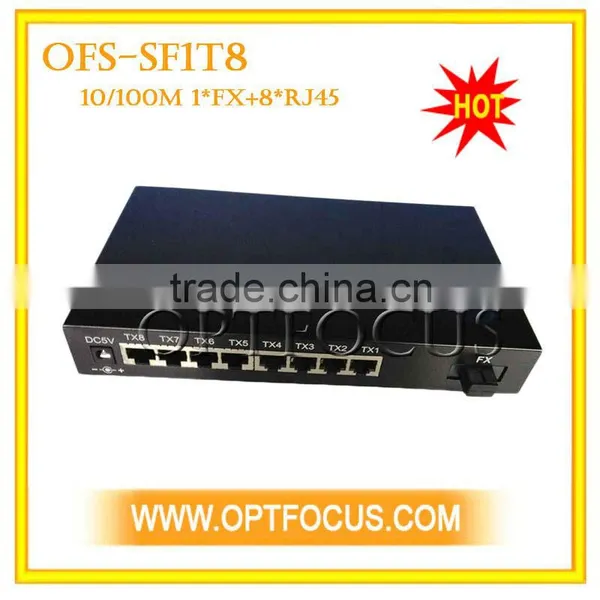

OFS-SF1T8 Series

8 ports Gigabit Ethernet Optical Fiber Switch

OFS-SF1T7 Series provides one 100M optical fiber ports and two 10/100M UTP ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. it is applicable to use in small patterns of Optical Fiber Ethernet.



Main features

With one fiber and four UTP ports, OFS-SF1T7 can convert Optical-Electric Ethernet signals between 10/100MUTP interface (TX) and 100M optical fiber interface (FX).

Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.

Support Flow control and Broadcast storm protection

Supporting the max 1536 bytes frame

Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.



Technical Specifications

Operating standards:  IEEE802.3u 100Base-TX and 100Base-FX

Connector:

UTP: RJ-45,10/100Mbps;

Fiber: SC/FC,100Mbps (Full Duplex)

Cable

UTP cable: Cat. 5 (the max distance up to 100m)

Fiber (multimode):  50/125, 62.5/125μm(the max distance up to 2km)

Fiber (singlemode):  8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)

Flow control

Full Duplex: IEEE802.3x flow control

Half Duplex: bake pressure flow control

LED Light: PWR, FX Link/Act, TP1 FDX,TP1 Link/Act, TP2 FDX, TP2 Link/Act

Power supply: AC100 ~ 240V,  DC5V 1A;

Environment temperature:0 ~ +50C

Storage temperature:::-20 ~ +70C

Humidity::5% ~ 90%

Dimensions:83×160×25mm





Fiber Optic Information



Type	connector	Fiber type	Max distance	Wavelength	TX power	Sensitivity	Link Budget
OFS-SF1T8M	SC	multimode	2km	850 or 1310nm	-20~-12dBm	-30dBm	10dBm
OFS-SF1T8S	SC	singlemode	20km	1310nm	-14~-8dBm	-32dBm	18dBm







  Fiber Optic Information



Model	Product description
OFS-SF1T8
OFS-SF1T8M	10/100M Ethernet Dual Fiber Switch with 8 UTP ports and 1 multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to 2km.
OFS-SF1T8S	10/100M Ethernet Dual Fiber Switch with 8 UTP ports and 1 singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20~100km.
OFS-SF1T8WS	10/100M Ethernet Single Fiber Switch with 8 UTP ports and 1 singlemode fiber port, 1310/1550nm of optical wavelength, the max distance of fiber up to 20~100km.
