Product Details
Place of Origin: | Guangdong, China | Brand Name: | Optfocus | Model Number: | OFS-SF1T16 Series |
Product Description
Specifications
Connector:UTP: RJ-45,10/100Mbps;
Fiber: SC/FC,100Mbps (Full Duplex)

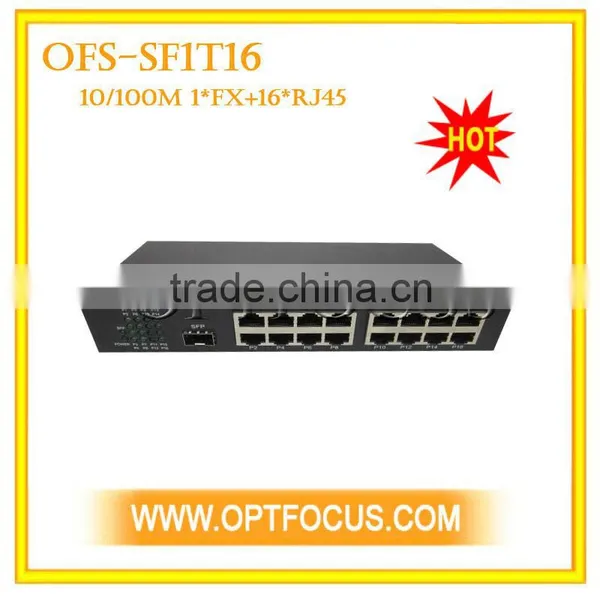

OFS-SF1T16 Series
16 ports Gigabit Ethernet Optical Fiber Switch
The SFP port of OFS-SF1T16 can be joined by Corresponding Fiber with another Fiber Media Converter, Hubs, Switches, Routers, Servers or Fiber NIC etc. Ethernet fiber equipments. The SFP port is set to 100Mbps Full Duplex.
Use corresponding cable to connect this switch port and the docking equipment port, Insert the AC/DC adapter to the power socket of the switch and AC power supply, The LED indicators front of the switch will blink in turn, it shows the switch is self-testing, when the self-testine is completed, the power LED indicator and other LED indicators will indicate the working condition of every ports as following description.
Main Features
Complied with IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX and 100Base-FX fast Ethernet.
16 10/100M auto-negotiable UTP ports, auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.
UTP port supports MDI/MDI-X auto crossover
MAC address table: 4K.
MAC address support auto-learning and migration
Support flow control.
Support port base VLAN
LED indicators can inspect the working condition of every port conveniently.
Technical Specification
Operating standards: IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX and 100Base-FX Fast Ethernet
ANSI/IEEE STD 802.3 10/100M auto-negotiated
Protocol: CSMA/CD
Data Transmitting Rate: Ethernet: 10Mbps (Half Duplex)
20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex)
200Mbps (Full Duplex)
Cable: UTP or STP, CAT. 5 or CAT. 6, the max distance up to 100m
Fiber: (multimode): 50/125, 62.5/125μm (the max distance up to 2km)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 20-120km)
Connector: 16 RJ-45, 10/100Mbps auto-negotiable ports; one SFP ports
Duplex choose: every RJ45 port N-WAY auto-choose Full/Half Duplex
LED indicators: POWER, Px Link/Act,
Flow control:
Full Duplex: IEEE802.3x flow control;
Half Duplex: bake pressure flow control
MAC address table: 4K
power supply: AC100 ~ 260V, 50Hz; DC5V 2A
Power: 10W
Environment temperature:0 ~ +50°C
Storage temperature:::-25 ~ +70°C
Humidity::5% ~ 90%
Dimensions:110(L) × 210(W) × 44(H)mm
Fiber Optic Information
Type | connector | Fiber type | Max distance | Wavelength | TX power | Sensitivity | Link Budget |
OFS-SF1T16 | SFP port( without SFP module) | ||||||
OFS-SF1T16M | SC | multimode | 2km | 850 or 1310nm | -20~-12dBm | -30dBm | 10dBm |
OFS-SF1T16S | SC | singlemode | 20km | 1310nm | -14~-8dBm | -32dBm | 18dBm |
Fiber Optic Information
Model | Product description |
OFS-SF1T16 | |
OFS-SF1T16M | 10/100M Ethernet Dual Fiber Switch with 7 UTP ports and 1 multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to 2km. |
OFS-SF1T16S | 10/100M Ethernet Dual Fiber Switch with 7 UTP ports and 1 singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20~100km. |
OFS-SF1T716S | 10/100M Ethernet Single Fiber Switch with 7 UTP ports and 1 singlemode fiber port, 1310/1550nm of optical wavelength, the max distance of fiber up to 20~100km. |
