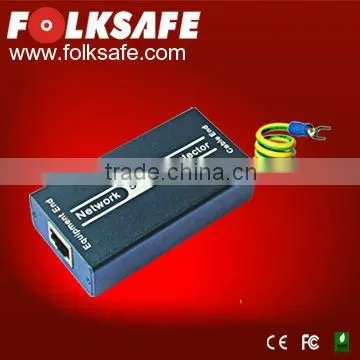

Network Surge Protector With One Single and RJ 45 Connector

Name: Network Surge Protector With One Single and RJ 45 Connector
Brand: FOLKSAFE
SKU: 107909075

US$ 3 - 5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

FOLKSAFE

Model Number:

FS-SPRJ45/8

Shenzhen Folksafe Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name FOLKSAFE

Model Number FS-SPRJ45/8

Specifications

Network Surge Protector
Max Transmission Speed:10Mbps
can protect devices from lightning
Large capacity of through-flow

Single Channel Network Surge Protector

1.Lower capacitors design, less insertion loss and quicker response time

2. Large capacity of through-flow, long use time

3.Adopts international brands components, multi-level protection mode, low residual voltage.

4. Easy installation and convenient maintaining

5. Apply to network severs, Routers, Lan switch, HUB and Ethernet and etc..

Model	FS-SPRJ45/8
Product Name	Single Channel Network Surge Protector
Application	Network severs , Routers, Lan switch, HUB,,UB and Ethernet and etc..
Connector	RJ 45
Normal Operating Voltage(Un)	5V
Max Continue Operating Voltage (Uc)	8V
Nominal Discharge Current (3/20us)	5KA
Nominal Discharge Current (8/20us)	10KA
Rated Load Current (IL)	500MA
Limited Voltage	<15V
Response Time	<1NS
Max Transmission Rate	1000Mbps
Insertion Loss	<0.2dB
Protection Circuit	1,2,3,4,5,6,7,8
Failure LED Indication	To the ground short circuit or open
Dimensions (LWH)	854323mm
Housing	Aluminum alloy
Body Color	Blue
Net Weight	65g
Operating Temperature	-20~55°C
Relative Humidity	0~95% (non-condensing)
Storage Temperature	-40º ~ 85º C
