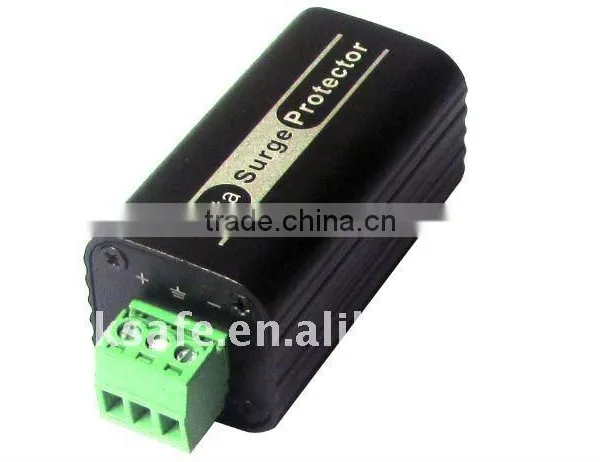

Single Channel Data Surge Protector

Name: Single Channel Data Surge Protector
Brand: folksafe
SKU: 107909113

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

folksafe

Model Number:

FS-SPRS485

Shenzhen Folksafe Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name folksafe

Model Number FS-SPRS485

Specifications

Single Channel Data Surge Protector
Max Continuous Running Voltage (Uc): 8V
Limited Voltage: 5V

Single Channel Data Surge Protector

•Nominal Operating Voltage (Un): 5V

•Max Continuous Running Voltage (Uc): 8V

•Nominal Discharge Current {In (8/20us)}: 5KA

•Max Discharge Current {(Imax (8/20us) }:10KA

•Rated Load Current ( IL): 500mA

•Limited Voltage: 5V

•Response Time:≤1ns

•Insertion Loss:<0.2dB

•Max Transmission Speed:3Mbps

Description:

Model	FS-SPRS485
Product Name	Data Surge Protector
Function	PTZ camera’s surge protection
Applied Dices	CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR. VOD….etc.
Connection Type	3-pin screw terminals
Nominal Operating Voltage (Un)	5V
Max Continuous Running Voltage (Uc)	8V
Limited Voltage	15V
Rated Load Current ( IL)	500mA
Nominal Discharge Current {In (8/20us)}	5KA
Max Discharge Current {(Imax (8/20us) }	10KA
Response Time	≤1ns
Max Transmission Speed	3Mbps
Insertion Loss	<0.2dB
Failure Mechanism	Communication line in the short circuit or disconnects
Net Weight	0.04kg
Housing	Aluminum alloy
Dimensions	502525mm
