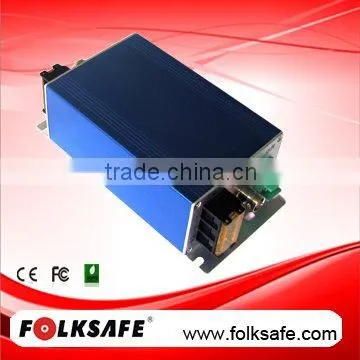

12VDC Video/Power Surge Protector Used for CCTV Transmission

Name: 12VDC Video/Power Surge Protector Used for CCTV Transmission
Brand: FOLKSAFE
SKU: 107909057

US$ 3 - 5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

FOLKSAFE

Model Number:

FS-SP3001VP/12

Shenzhen Folksafe Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name FOLKSAFE

Model Number FS-SP3001VP/12

Specifications

Video/Power Surge Protector
Max Transmission Speed:10Mbps(Video)
standard:GB/T18802.21-2004/IEC61643:-21:2000
CE,FCC ROHS

Features

Video & Power Surge Protector

1.Multi-functional over-voltage surge protection
2.Discharge current 20KA
3.Tow- in -one design
4. Low loss

5. High-speed response time (10-12s)
6. If the lightning protection is failed, LED will indicate.

Model		FS-SP3001VP(12VDC)
Product Name		Video & Power Surge Protector
Application		cable CCTV transmission, electron monitoring system such as DVR, LET and camera and etc..
Video	Rated Working Voltage	5V
	Max Continue Operating Voltage	8V
	Discharge Time(8/20μs)	5KA
	Max Discharge Current(8/20μs)	10KA
	Voltage Protection Level(10/700/μs)	15V
	Insertion Resistance	≤4.3Ω
	Insertion Loss	≤0.2dB
	Standing-Wave Ratio (SWR)	≤1.2
	Bandwidth	0.3-10M
	Transmission Rate	10M
	Response Time	≤1nS
Power	Standard Working Voltage	12V DC
	Max Continue Operating Voltage	20V DC
	Nominal Discharge Current	10KA
	Max Discharge Current	20KA
	Limited Voltage	25V
	Rated Load Voltage (RLA)	15A
	Leakage Current	5μA
	Response Time	≤25ns
Protection	Housing Protection	Ip20
Mechanical	Dimensions (LWH)	1107045mm
	Housing	Aluminum alloy
	Body Color	Blue
	Net Weight	270g
Environmental	Operating Temperature	-20~55°C
	Relative Humidity	0~95% (non-condensing)
	Storage Temperature	-40º ~ 85º C
