IEEE802.3af/at standard 10/100/1000M Bandwidth PD Splitter ,
also called PoE Splitter
Overviews

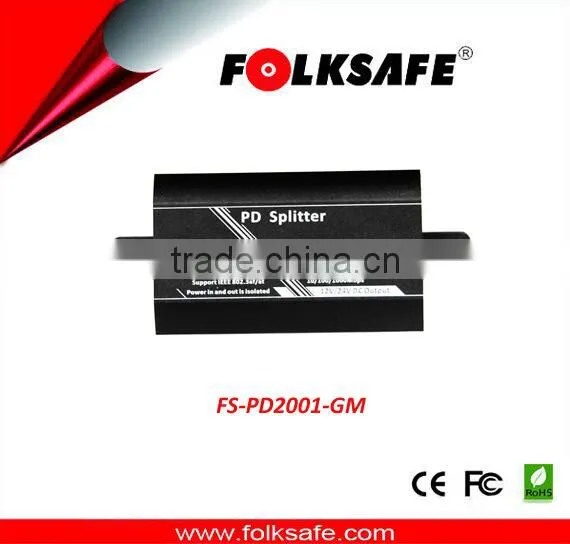

FS-PD2001-GM is a kind of PD Splitter (also called PoE Splitter), supports IEEE802.3af/at standard; supplies power and transmits data to PD devices (such as IP camera); The product uses the transformer for isolation design, more stable, more secure and Well-protects the powered products , Bandwidth is 10/100/1000M. Mid-Span (No.4&5and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections are well supported. The product is with dual power output: 12VDC, 2.0A, and 24VDC, 1.0A. Some HD digital cameras do not have POE module which leads to the inconvenience and difficulty on installation. However, this device can solve the problem of wiring. Connect POE switch with PD Splitter, people can realize the power supply and data transmission of IP camera directly and timely.
Typical applications,please refer to follow wiring picture
Features
1,Bandwidth: 10/100/1000M
2,Input Voltage: 37-57V
3,Input port: Supports Mid-Span (No.4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections.
4,Two switchable output Voltages: 12V/24V
5,Output:12VDC,2.0A(Max); 24VDC, 1.0A
6,POE Standard: Supports IEEE802.3af/at
7,Isolation protection: With transformer for isolation design, more stable, more secure
8,Protection function: Overheating protection, Short circuit protection, overvoltage and overload protection
