16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch Over Ethernet End-Span PSE With 4 Giga Uplink Port (RJ45 + Fiber Optic)

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch Over Ethernet End-Span PSE With 4 Giga Uplink Port (RJ45 + Fiber Optic) thumbnail-1
16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch Over Ethernet End-Span PSE With 4 Giga Uplink Port (RJ45 + Fiber Optic) photo-1
US$ 200 - 280 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
16
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Shenzhen Folksafe Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports 16
Transmission Rate 10/100Mbps
Function POE, QoS, SNMP, VLAN Support
Certification CE FCC RoHS
Switch Capacity 12.8Gbps
Brand Name Folksafe
Model Number FS-S2016EP-2G-2SG
Place of Origin Guangdong, China

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic)



 Feature



16-Port 10/100Mbps IEEE 802.3af/802.3at Managed PoE Switch

•16 Port supports 53VDC power to PoE powered devices

•Extra 2-port 10/100/1000Mbps uplink RJ45 port

  Extra 2-port 1000Base-X SFP optional fiber port

•Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE

•420-watt PoE budget

•PoE data / power transmission distance up to 100m

•Port based VLAN for Enhanced security

•Built-in power supply. Power input : AC96V~264V

•Support Jombo Fram up to 10K length

•Lightning proof level : 6 KV

•Support Web,CLI management, support STP (802.1D) and RSTP (802.1w)

•Excellent anti-thunder, anti-static and anti-interference ability





 Specification

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic) Support MAC address table : 8K

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic) Working temperature : -10℃-55℃

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic) Storage temperature : -40℃-70℃

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic) Working Humidity : 0-95% (Non-condensing)




 Products Panel Figure

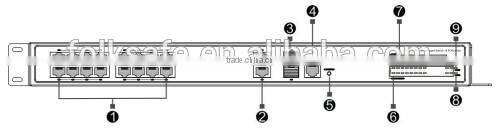

 Front Panel

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic)





1. PoE Port

2. Gigabit Uplink RJ45 Port

3. Gigabit Uplink SFP Port

4. Console Port

5. Reset

6. PoE Indicator

7. Link/Act Indicator

8. Power Indicator

9. Working System Indicator

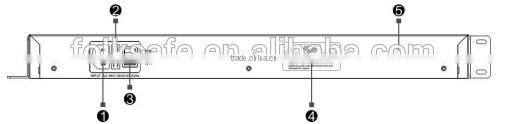

Back Panel

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic)

1. Input: AC 96~264V

2. Fuse

3. Power Switch

4. Warning

5. Ground Connection

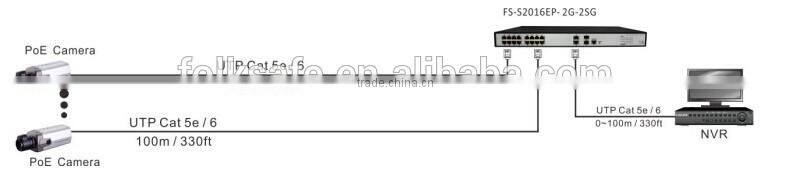

 Application

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic)











 Packing List

Before installation, please check the following equipment and accessories, if there are any missing, please contact with your supplier.



1) 1 set of FS-S2016EP-2G-2SG
2) 1 power cable
3) 1 user manual
4) 2 set of rack-mounting ears







 Transportation
16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic)



 Certification

  16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic)





 Exihibition

16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic)

 16-Port 100Mbps IEEE 802.3af/802.3at Managed PoE Switch over Ethernet End-Span PSE with 4 giga uplink port (RJ45 + Fiber optic)
