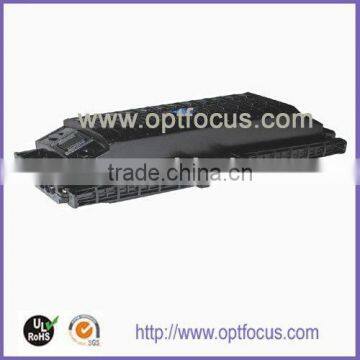

splice box
- 1000 Piece / Pieces per Month
- Fob shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OPTFOCUS | |
| Model Number | OFS-E450 |
Product Description
Specifications
Fiber Optic Splice Closure:This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC)Fiber Optic Splice Closure
1. Scope of application
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65°C.
2. Basic structure and configuration
2.1 Dimension and capacity
Outside dimension (LxWxH) | 450x216x110 (mm) |
Weight (excluding outside box) | 2750g-3200g |
Number of inlet/outlet ports | 3 (pieces) on each side (total 6 pieces) |
Diameter of fiber cable | Φ8—Φ23 (mm) |
Capacity of FOSC | Bunchy: 6—96 (Cores) Ribbon: max. 216 (Cores) |
2.2 Main components
No. | Name of components | Quantity | Usage | Remarks | |
1 | Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter: 378x136 (mm) | |
2 | Insert plate | 2 pairs | Fixing the housing | 175x56x30(mm) | |
3 | Fiber optic splice tray (FOST) | Max 4 pieces (either bunchy or ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:6,12,24(cores) Ribbon:3,6 (pieces) | |
4 | Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST |
| |
5 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom |
| |
6 | Port plug | 6 pieces | Sealing empty ports |
| |
7 | Pressure testing valve | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement | |
8 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection | Configuration as per requirement | |
