Help CenterOFS-FTH-JM5 Splitter Closure
Related Products
Specifications
1.specialized designed for FTTx application2.closure for splitter
3.nice appearance,good quality
1.1 Brief introduction

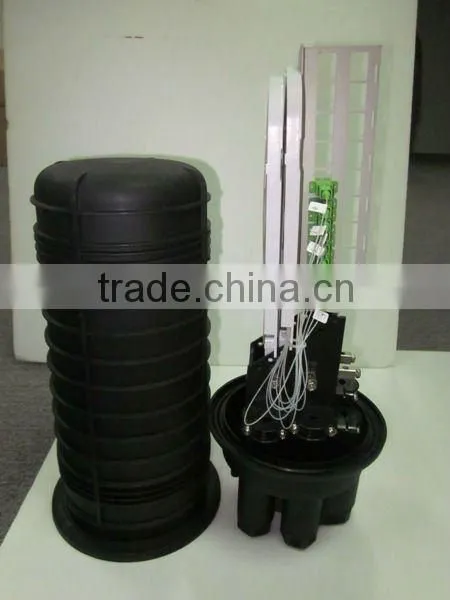

OFS-FTH-JM5 type of Fiber Optic Splice Closure (FOSC) is a member of dome series. The function of the product is in the optical transmission link, to provide various types of fiber optic cable through, branching, and related connecting protection, IP safety rate is IP68. It can be installed 1x2: 32 PLC splitter or 2x2: 16 PLC splitter. This model has four small round ports and one large round port. The sealing component is made from vulcanized rubber. The sealing method adopts screw pressure. This model is suitable for different methods of branch connection, including branching of uncut cables. It could be used for aerial, pole-mounting, wall-mounting and underground application. This model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.
1.2 Main components
Item |
Name |
Quantity |
Application |
Remark |
1 |
Cover |
1 pc |
Integrated protection of closure |
|
2 |
Fiber splice tray |
required |
Fix the fiber, protect heat shrink tube, storage fiber and splitter |
|
3 |
PLC splitter(2:32 in max) |
2:32(1 pc) 2:16(2 pc) |
Light splitting |
Optional part |
4 |
SC adapter |
36 pcs |
Connection |
Optional part |
5 |
SC-1.5m pigtail |
32 pcs |
Fusion with inlet cable |
Optional part |
6 |
Base |
1 set |
Fix the internal and external structure |
|
7 |
Plastic hoop |
1 set |
Fix the base and cover |
|
8 |
Sealing ring |
1 set |

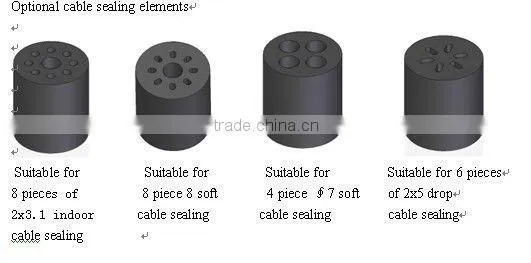

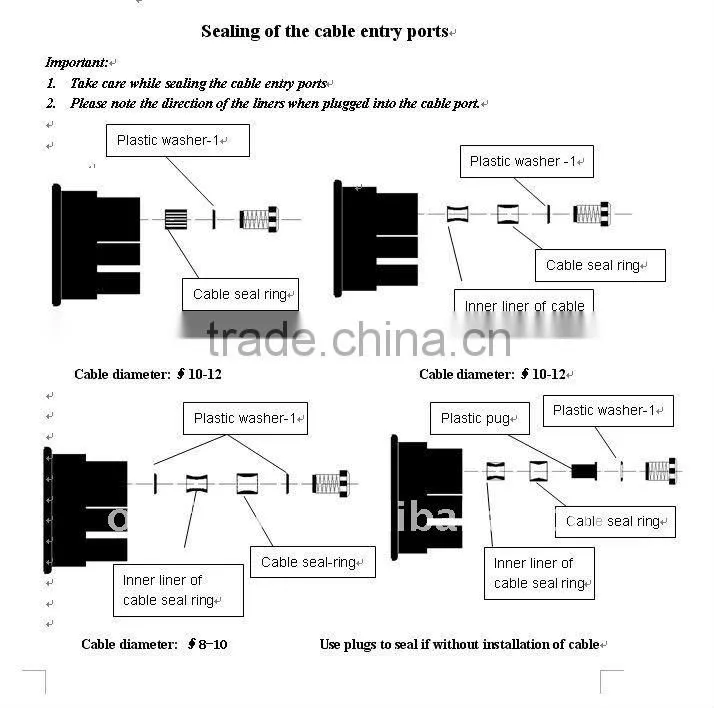

Big sealing part for sealing cover and base, different small sealing parts for fiber sealing |
|
9 |
Plastic plug |
4 pcs |
For non cable entry sealing |
|
10 |
Valve |
1 set |
Gas-filled test air pressure and the sealing performance |
Optional part |
11 |
Earthling device |
1 set |
Leading the internal mental components to grounding |
Optional part |
1.3 Accessories tools (self supply)
Material |
Application |
Tape |
Mark and temp fixation |
Alcohol |
Purity |
Gauze |
Purity |
1.4 Application tools (self supply)
Tools |
Application |
Optical cable radial wire stripper |
Ring peeling cable skin |
Optical cable portrait wire stripper |
Straight portrait peeling cable skin |
Beam wire stripper |
Peeling beam wire skin |
Bare wire stripper |
Peeling cable coating |
Tapeline |
Measure length |
Tube cutting knife |
Beam wire peeling |
Electrician′knife |
|
Wire-cutter |
Cut metal core |
Cross screw driver |
Screw down belts |
Scissors |
|
Splice operations |
Place products or tools |
1.5 Connection and test instrument (self-supply)
Instrument |
Application |
Heat sealing machine |
Fiber connection |
Optical time domain reflect meter(OTDR) |
Test for connection result |
