Specifications
OFS-SCH-1 horizontal closureOFS-SCH-1 fiber optical splice closure
OFS-SCH-1 optical joint closure
OFS-SCH-1 horizontal closure
OFS-SCH-1 fiber optical splice closure
OFS-SCH-1 optical joint closure
APPLICATION AND FEATURE:

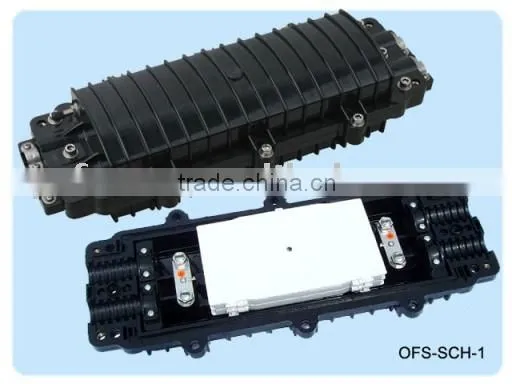

OFS-SCH-1 fiber optic closure is horizontal with two inlet and two outlet(four ports).the outer shell is made of enhanced PC engineering plastic,its strong and light,can efficaciously prevent the lighting strikeerosionaging and fire resist,the tray is pulldown,so its easy installation,dont need dismantle other tray,the material of the sealing is silica gel,it can repeatable operation.
The scope of application : aerial, direct-buried, wall-mounting, duct-mounting,
The application of temperature :-4065
ITEM |
DESCRIPTION |
Dimension(mm) |
465*180*122 |
Weight(kg) |
2.6 |
Max.diameter(mm) |
25 |
Cable ports |
Two outlet and two inlet |
Max.capacity |
96 core |
Single tray |
12 core or 24 core |
OFS-SCH-1 horizontal closure Material:Engineering Plastics
OFS-SCH-1 fiber optical splice closure Connector type:Two outlet and two inlet
OFS-SCH-1 optical joint closure Max.capacity:96 core
