Help CenterFiber Optic sc Patch Cord Simplex
Related Products
Specifications
fiber optic sc patch cord simplex is low Insertion Loss and high Return Loss.2.In line with international standard

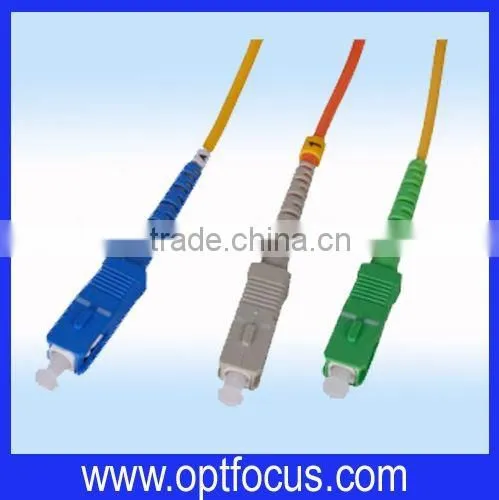

fiber optic sc patch cord simplex
Fiber to fiber interconnection patchcord is one of the most popular type used for telecommunication networks, cable networks and computor networks etc.
The main specific including SM/MM, SX/DX, PC/APC etc.
Click the picture on the right to check details.
Features&Availabilities
1.Plug-pull, key-oriented coupling mechanism
2.Simplex and Duplex Singlemode and multimode
3.PC and APC polishing
4.Interferential parameters
5.Hybrid patch-cords are available upon request
6.Fan-out available
7.Pigtail available
8.Compliant with Telcordia GR-326-CORE specification
SC simplex communication cable Applications
1.Connection of optical transmission equipment
2.ODF of optical transmission system
3.CATV
4.High quality graphic transmission network
5.High speed data transmission network
6.Computer networks
7.Telecommunication networks
SC simplex connector Specifications
Type |
Singlemode (typical) |
Singlemode (maximum) |
Multmode (maximum) |
Insertion Loss |
≤0.15dB |
≤0.3dB |
≤0.3dB |
Return Loss |
≥55 dB |
≥50 dB |
≥25 dB |
Operating Temperature |
-40oC to +80oC |
-40oC to +80oC |
-40oC to +80oC |
SC/APC Specifications
Type |
Singlemode (maximum) |
Insertion Loss |
≤0.3dB |
Return Loss |
≥65 dB |
Operating Temperature |
-40oC to +80oC |
Payment & Shipping Terms
Minimum Order Quantity:20piece/pieces
Port: Shenzhen
Packaging Details:1pcs /plastic bag.400pcs/carton
Delivery Time:7 days
Payment Terms:T/T ,L/C,Western Union
Supply ability:10000 Piece/Pieces per Week
Warranty:1 year
